1977 Suzuki GT500 Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1977 Suzuki GT500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

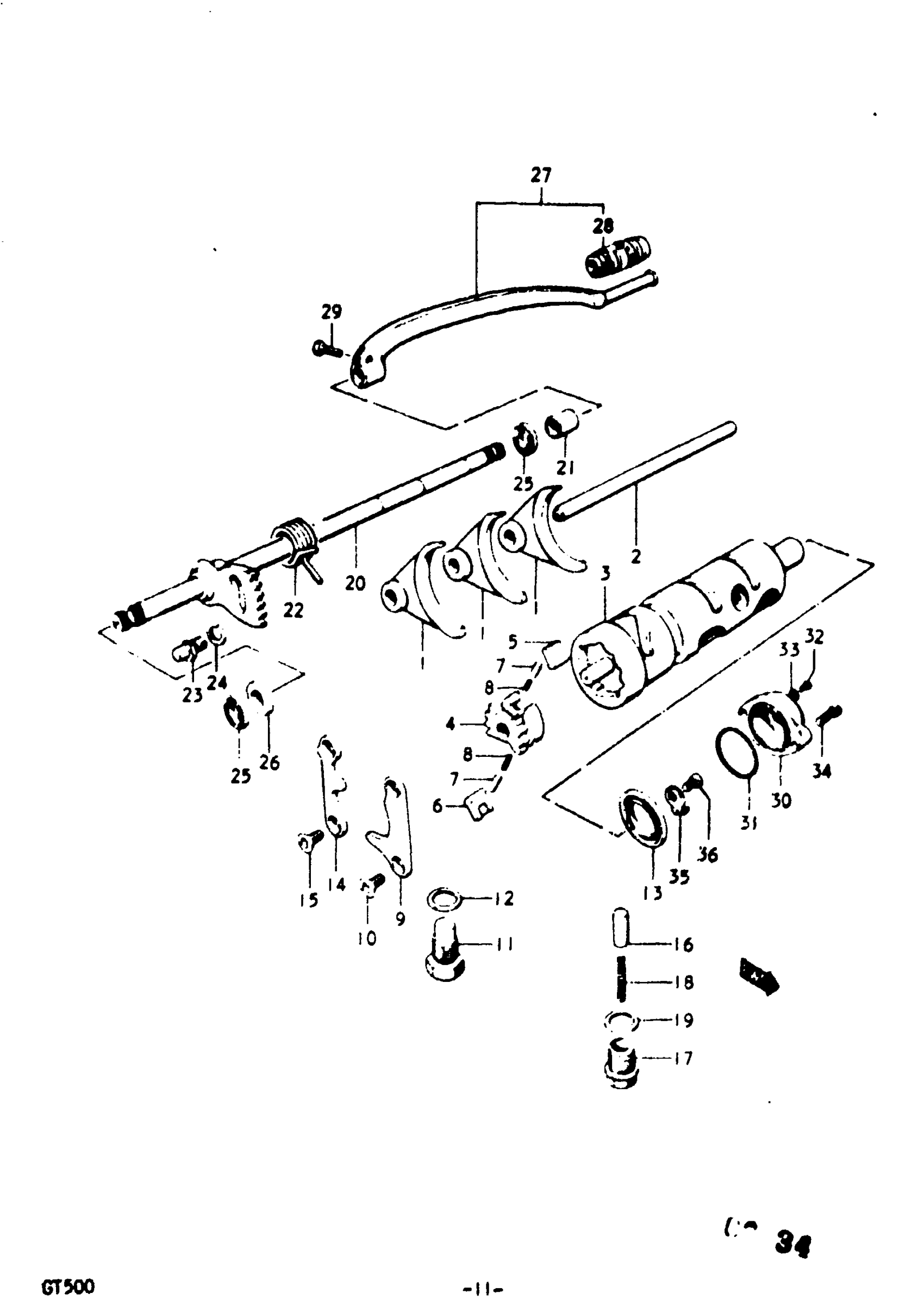

1977 Suzuki GT500 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFTING | A,B

25211-15000

3
Out of stock

2

SHAFT, GEAR SHIFTING FORK | A,B

25411-15000

1
Out of stock

3

CAM | A,B

25310-15002

1
Out of stock

4

GEAR, GEAR SHIFT CAM DRIVEN | A,B This part replaces 25322-11000.

25322-31310

1
Out of stock

5

PAWL, GEAR SHIFT NO.1 | A,B This part replaces 25323-11000.

25323-34201

1
Out of stock

6

PAWL, GEAR SHIFT NO.2 | A,B This part replaces 25324-11000.

25324-34201

1
Out of stock

7

PIN | A,B

09261-05003

2
Out of stock

8

SPRING | A,B

09440-04003

2
Out of stock

9

LIFTER, PAWL | A,B

25331-11001

1
Out of stock

10

SCREW | A,B This part replaces 02122-06128.

02122-06127

2
Out of stock

11

BOLT, CAM GUIDE | A,B

09119-14003

1
Out of stock

12

GASKET | A,B

09168-14004

1
Out of stock

13

SEAL,OIL(16X30X | A,B This part replaces 09285-16002.

09285-16005

1
Out of stock

14

STOPPER, PAWL | A,B

25341-31000

1
Out of stock

15

SCREW | A,B This part replaces 02122-06128.

02122-06127

2
Out of stock

16

STOPPER, CAM | A,B This part replaces 25351-11000.

25351-11010

1
Out of stock

18

SPRING | A,B

09440-05007

1
Out of stock

19

GASKET | A,B

09168-14004

1
Out of stock

20

SHAFT, GEAR SHIFTING | A,B

25510-15001

1
Out of stock

21

SPACER | A,B

09180-12021

1
Out of stock

22

SPRING | A,B

09444-26001

1
Out of stock

23

STOPPER, ARM | A,B This part replaces 25671-01000.

25671-01011

1
Out of stock

24

1

$2.28

In stock

25

OIL SEAL (12X22X9) | A,B This part replaces 09285-12002.

09285-12006

2
Out of stock

26

CUSHION | A,B

09320-13004

1
Out of stock

27

LEVER ASSY, GEAR SHIFTING | A,B; Includes Item(s) 28 This part replaces 25600-18002.

25600-18001

1
Out of stock

28

.RUBBER,GEAR SHIFT PEDAL | A,B This part replaces 25652-16500.

25652-16510

1
Out of stock

29

BOLT, REAR | A,B This part replaces 01122-08208.

01500-08207

1
Out of stock

30

BODY, GEAR SHIFTING SWITCH | A,B

37721-15002

1
Out of stock

31

O RING | A,B

09280-28002

1
Out of stock

32

SCREW | A,B This part replaces 02111-03048.

02112-03047

1
Out of stock

33

WASHER | A,B This part replaces 08322-21038.

08322-01037

1
Out of stock

34

SCREW | A,B This part replaces 02111-05207.

02112-05207

2
Out of stock

35

CONTACT, SWITCH | A,B

37711-05101

1
Out of stock

36

SCREW | A,B This part replaces 02122-06128.

02122-06127

1
Out of stock
