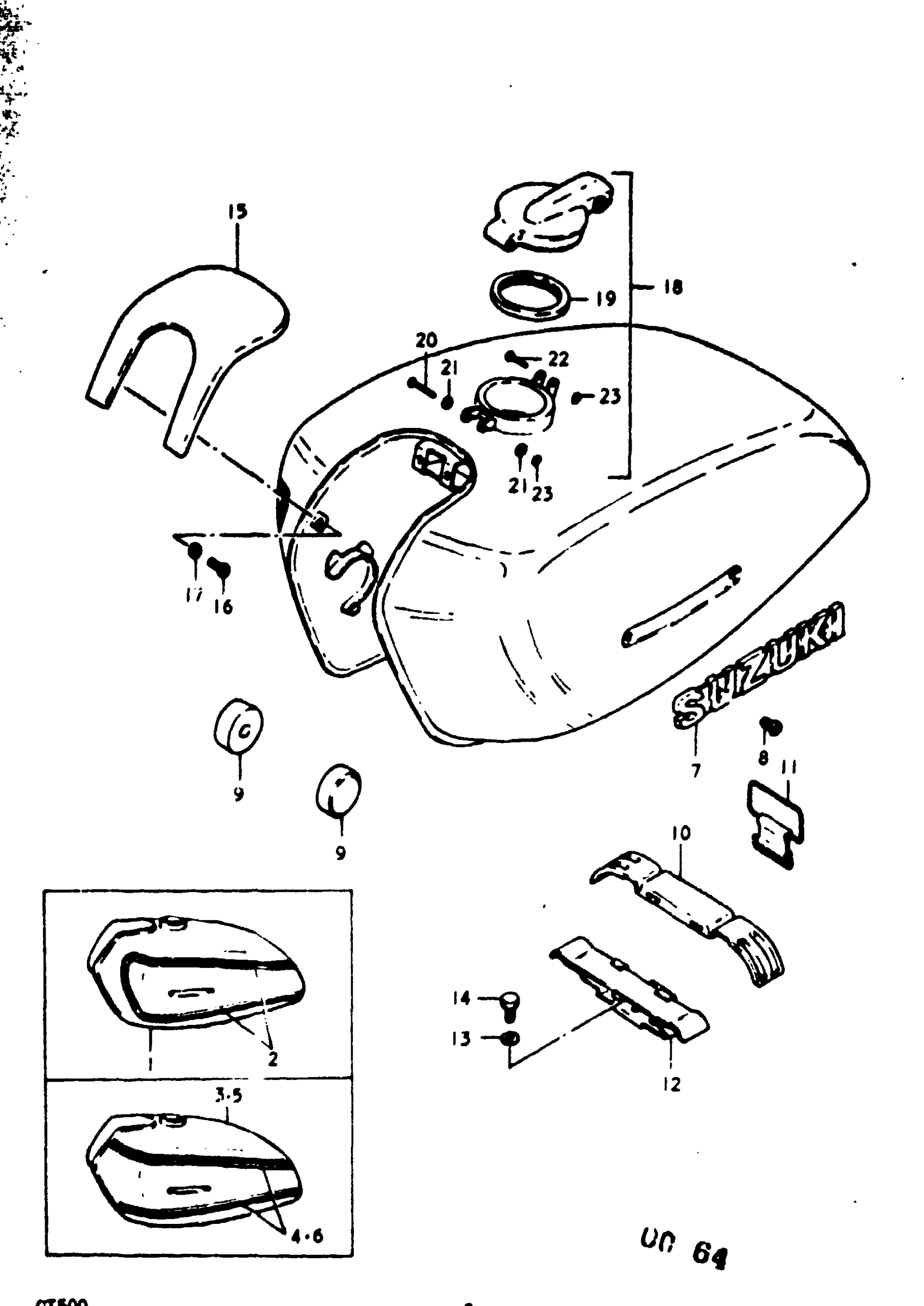

Suzuki GT500 (1977) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A This part replaces 44110-15640-00U.

44110-15640-737

Unavailable

1

NO DESCRIPTION AVAILABLE | A; Includes Item(s) 2 This part replaces 44110-15640-01J.

44110-15640-737

Unavailable

2

TAPE SET | A

68100-15880-998

Unavailable

3

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 4 This part replaces 44110-15650-019.

44110-15640-737

Unavailable

4

TAPE SET | B

68100-15890-61U

Unavailable

5

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 6 This part replaces 44110-15650-00T.

44110-15640-737

Unavailable

6

TAPE SET | B

68100-15890-61R

Unavailable

7

EMBLEM | A,B

68111-31610

Unavailable

8

SCREW | A,B This part replaces 09127-03002.

02122-0306B

$2.26

9

CUSHION | A,B This part replaces 09329-10007.

09329-10026

$2.23

10

CUSHION, REAR | A,B

44541-31600

Unavailable

11

BAND | A,B

09462-00049

Unavailable

12

BRACKET | A,B

44550-15602

Unavailable

13

WASHER | A,B This part replaces 08322-11088.

08322-01087

$2.13

14

PLUG, DRAIN | A,B This part replaces 01122-08168.

01500-0816B

$2.50

15

COVER, FRONT | A,B

44270-15600

Unavailable

16

SCREW | A,B This part replaces 02111-05108.

02112-05107

$1.49

17

WASHER | A,B This part replaces 08322-21058.

08322-01057

$2.13

18

CAP ASSY,FUEL T | A,B; Includes Item(s) 19 - 23 This part replaces 44200-33011.

44200-33012

Unavailable

19

GASKET | A,B This part replaces 44248-33011.

44248-33012

$9.67

20

PIN, FRONT | A,B

44239-33010

Unavailable

21

WASHER | A,B

44238-33010

Unavailable

22

PIN | A,B

44233-33010

Unavailable

23

E RING | A,B

09383-02003

Unavailable
