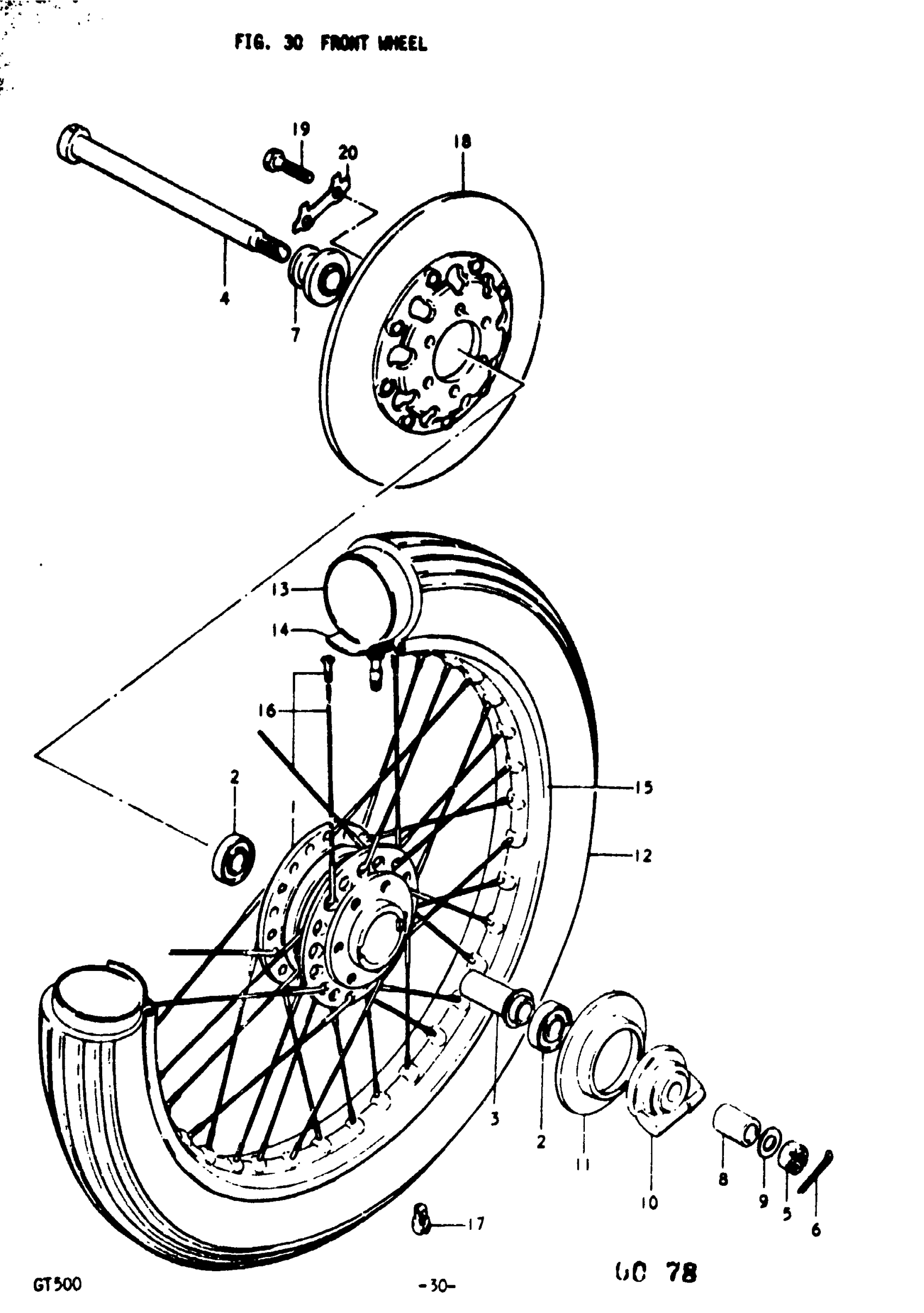

Suzuki GT500 (1977) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 2 - 3 This part replaces 54100-18831.

54111-47002

Unavailable

2

BEARING | A,B This part replaces 08123-63020.

08123-6302B

$22.74

3

SPACER | A,B

54730-18400

$20.45

4

AXLE,FRONT | A,B This part replaces 54711-33002.

54711-3300V

Unavailable

5

NUT | A,B This part replaces 08314-31128.

08314-3112A

$2.41

6

PIN | A,B This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER, AXLE, RH | A,B This part replaces 54740-18401.

54740-18402

Unavailable

8

SPACER | A,B

09180-15034

Unavailable

9

WASHER | A,B This part replaces 08322-21128.

08322-01127

$1.84

10

BOX ASSY,SPEEDO | A,B This part replaces 54600-18401.

54600-18403

Unavailable

11

DUST SEAL | A,B

54871-18400

Unavailable

12

TIRE | A,B; 325 S19 This part replaces 55100-15620.

55100-31600

Unavailable

13

TUBE | A,B; 325 S19 This part replaces 55200-15010.

55200-44611

$33.73

14

PROTECTOR, WHEEL INNER TUBE FRONT | A,B; 325 S19 This part replaces 55261-15010.

55261-15020

$3.15

15

RIM | A,B; 185x19

55311-34020

Unavailable

16

SPOKE SET | A,B This part replaces 55320-34805.

55320-45000

Unavailable

17

BALANCER WHEEL (15G) | 3)A,B This part replaces 55411-11000.

55411-26G00

$7.73

17

BALANCER WHEEL (30G) | 3)A,B This part replaces 55412-11000.

55413-41F00

$7.50

18

DISK, FRONT BRAKE | A,B

59210-37001

Unavailable

19

BOLT | A,B

09100-08094

$2.71

20

WASHER | A,B

09169-08016

$2.41
