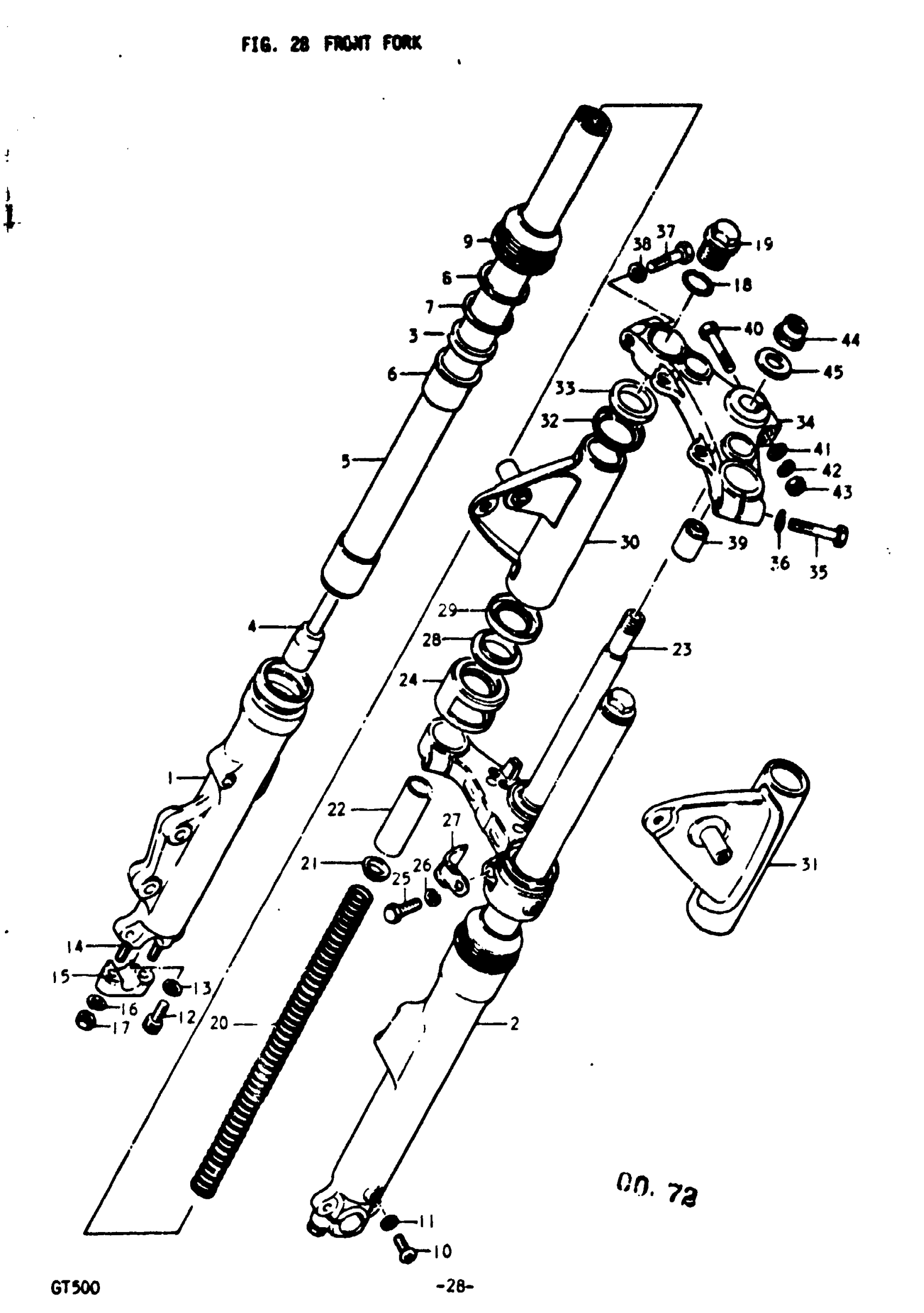

Suzuki GT500 (1977) FRONT FORK Diagram

#

Description
Price

FORK ASSY, FRONT | A

51100-15210-019

Unavailable

FORK ASSY, FRONT | B; Includes Item(s) 1 - 23

51100-15211-291

Unavailable

1

NO DESCRIPTION AVAILABLE | A,B This part replaces 51131-34710.

51131-34710-111

Unavailable

2

OUTER TUBE, LH | A,B

51131-34010

Unavailable

3

OIL SEAL | A,B

51153-34010

Unavailable

4

PIECE, OIL LOCK | A,B

51146-34010

Unavailable

5

INNER TUBE | A,B

51110-15210

Unavailable

6

GUIDE, INNER TUBE | A,B

51152-34010

Unavailable

7

WASHER | A,B

51158-34010

Unavailable

8

CIRCLIP | A,B

51156-34010

Unavailable

9

COVER, DUST | A,B

51557-34110

Unavailable

10

SCREW | A,B This part replaces 02111-04087.

02112-04087

$1.49

11

GASKET | A,B

51183-03010

$2.07

12

BOLT, CYLINDER | A,B This part replaces 51147-31010.

51147-36010

Unavailable

13

O RING | A,B This part replaces 51148-34010.

51148-36011

$3.56

14

STUD BOLT (L:30) | A,B This part replaces 01421-08308.

09108-08142

$3.18

15

HOLDER, AXLE | A,B

51132-31010

Unavailable

16

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

17

NUT, CLUTCH RELEASE NO.1 | A,B This part replaces 09140-08005.

09140-08017

$2.27

18

O RING | A,B

51181-18510

Unavailable

19

CAP, INNER TUBE | A,B

51351-31010

Unavailable

20

SPRING | A,B

51171-34110

Unavailable

21

GUIDE, SPRING | A,B

51172-34110

Unavailable

22

SPACER, SPRING | A,B

51176-15210

Unavailable

23

NO DESCRIPTION AVAILABLE | A,B This part replaces 51410-15210.

51410-15640

Unavailable
