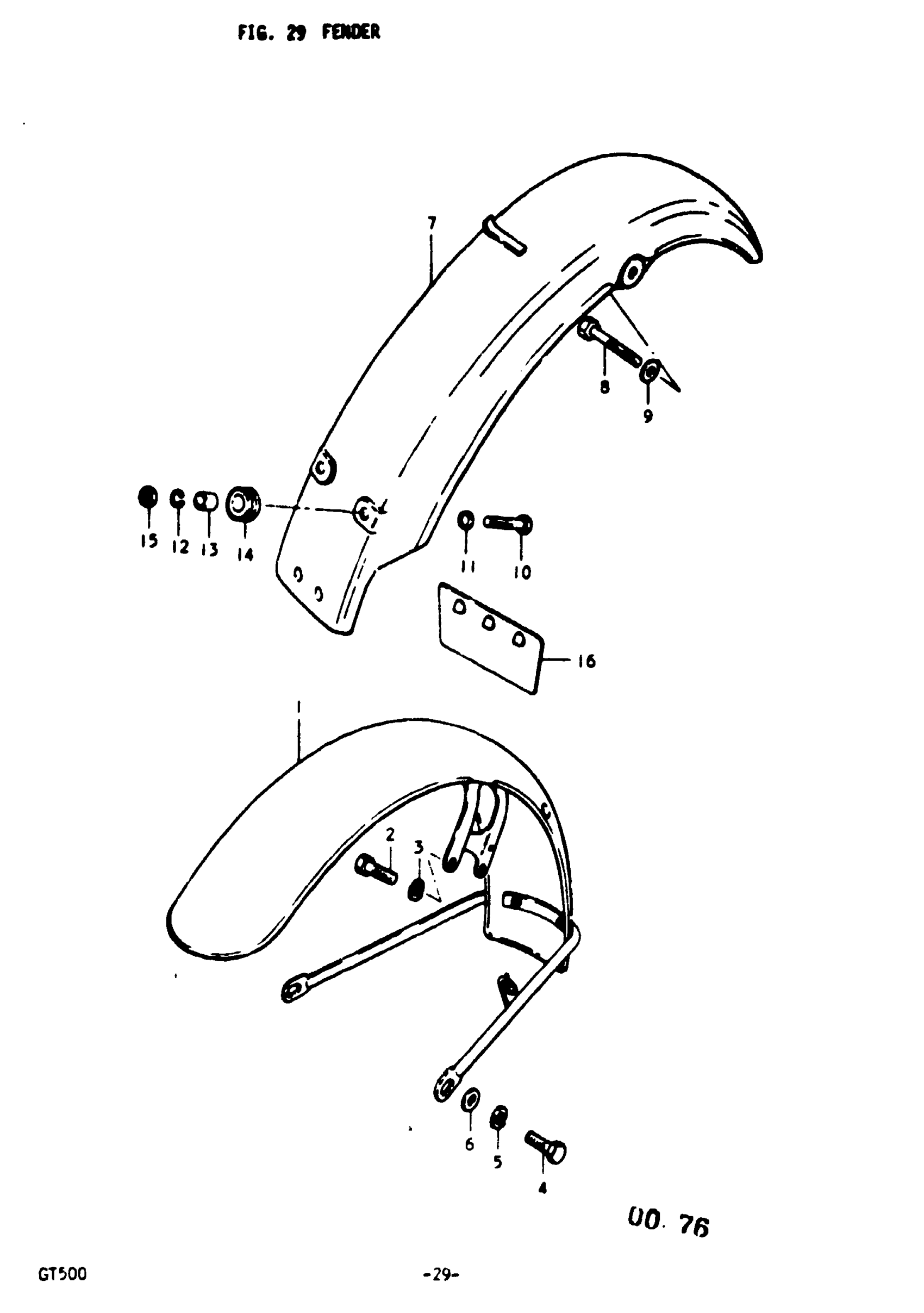

Suzuki GT500 (1977) FENDER Diagram

#

Description
Price

1

FENDER, FRONT | A,B This part replaces 53100-31703.

53100-31702

Unavailable

2

PLUG, DRAIN | A,B This part replaces 01122-08168.

01500-0816B

$2.50

3

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

4

BOLT, CANISTER | A,B This part replaces 01112-06168.

01500-06167

$1.97

5

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$2.13

6

WASHER | A,B This part replaces 08322-21068.

08322-01067

$2.13

7

FENCER, REAR | A

63110-15100

Unavailable

7

FENDER, REAR | B

63110-15630

Unavailable

8

BOLT | A,B This part replaces 01122-08558.

01500-08557

$3.16

9

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

10

BOLT | A,B This part replaces 01112-06208.

01500-06207

$2.28

11

WASHER, FRONT | A,B This part replaces 09160-06004.

09160-06134

$1.91

12

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

13

SPACER (6.5X10X7) | A,B This part replaces 09180-06002.

09180-06283

$1.91

14

CUSHION | A,B

09320-09002

$1.98

15

.NUT | A,B This part replaces 08311-11068.

08310-00067

$2.13

16

MUD GUARD | A,B

63411-15101

Unavailable
