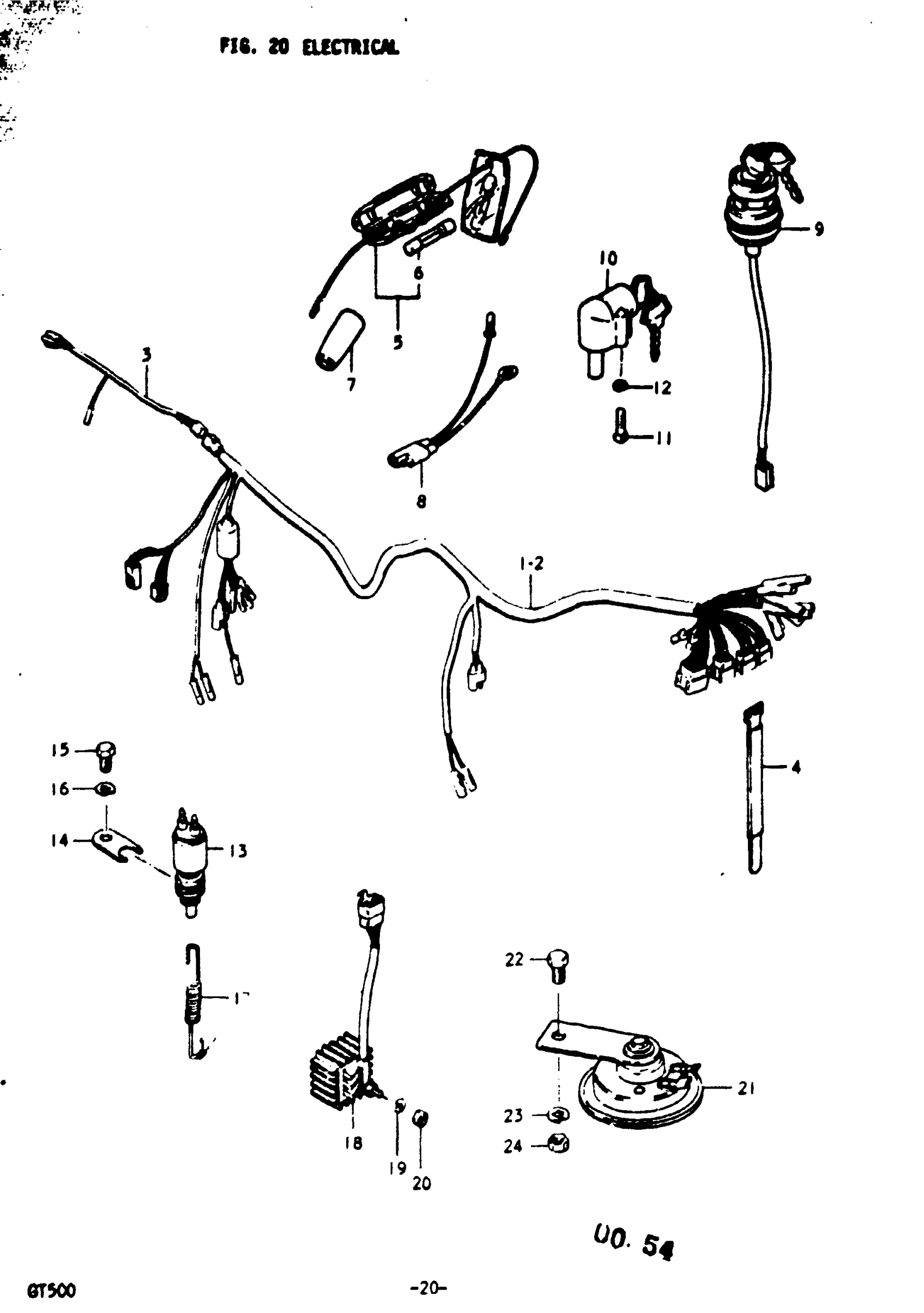

Suzuki GT500 (1977) ELECTRICAL Diagram

#

Description
Price

1

WIRING HARNESS, (1) | A

36610-15300

Unavailable

2

WIRING HARNESS | B

36610-15301

Unavailable

3

WIRING HARNESS, (2) | A

36620-15900

Unavailable

4

CLAMP | A,B This part replaces 09407-18301.

09407-18302

$2.28

5

FUSE CASE ASSY | A,B; Includes Item(s) 6 This part replaces 36740-15010.

36740-15011

$9.38

6

FUSE | A,B; 15A

09481-15001

$2.06

7

BOOT | A,B

09287-10001

Unavailable

8

LEAD WIRE, FUSE/GROUND | A,B

36870-36000

Unavailable

9

SWITCH ASSY, IGNITION | A,B; FROM 37110-25317 This part replaces 37110-25318.

37110-25319

$97.62

10

LOCK ASSY, STEERING | A,B This part replaces 51900-33810.

51900-33811

Unavailable

11

SCREW | A,B This part replaces 02111-05257.

02112-05257

$1.49

12

LOCK WASHER | A,B This part replaces 08321-21058.

08321-0105A

$1.84

13

SWITCH, BRAKE LAMP | A,B

37610-53011

$30.75

14

BRACKET, LAMP SWITCH | A,B

37752-15001

Unavailable

15

BOLT | A,B This part replaces 01112-06128.

01500-06127

$1.97

16

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$2.13

17

SPRING | A,B

09443-06012

$3.16

18

RECTIFIER | A,B

32800-36021

Unavailable

19

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$2.13

20

.NUT | A,B This part replaces 08311-11068.

08310-00067

$2.13

21

HORN | A

38500-15642

Unavailable

21

HORN | B

38500-15643

Unavailable

22

PLUG, DRAIN | A,B This part replaces 01122-08168.

01500-0816B

$2.50

23

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

24

NUT | A,B This part replaces 08312-11088.

08310-00087

$2.13
