1977 Suzuki GT500 Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 1977 Suzuki GT500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

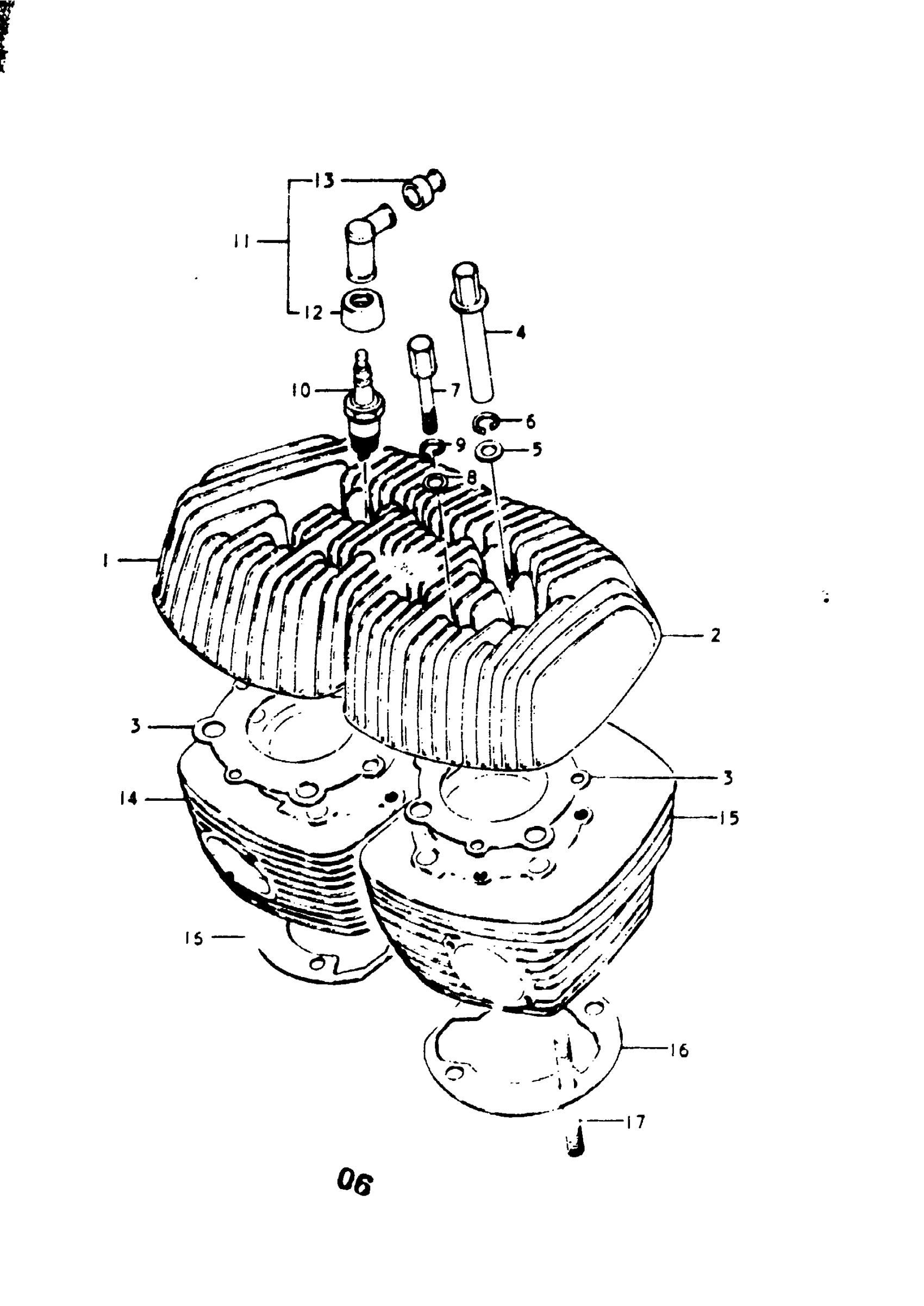

1977 Suzuki GT500 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD, RH | A,B

11111-15601

1
Out of stock

2

CYLINDER HEAD, LH | A,B

11121-15601

1
Out of stock

3

GASKET | A,B

11141-15000

2
Out of stock

4

NUT | A,B

09159-10005

8
Out of stock

5

WASHER | A,B This part replaces 08322-11148.

08322-01147

8
Out of stock

6

WASHER,LOCK | A,B This part replaces 08321-21148.

08321-0114A

8
Out of stock

7

BOLT | A,B

09119-08001

8
Out of stock

8

WASHER | A,B This part replaces 08322-11088.

08322-01087

8
Out of stock

10

SPARK PLUG | A,B; NGK, B-7HS

09482-00082

2
Out of stock

10

SPARK PLUG | A,B; ND, W22FS

09482-00083

2
Out of stock

11

CAP SET,SPARK P | A,B; Includes Item(s) 12 - 13 This part replaces 33500-69810.

33500-69811

2
Out of stock

12

SEAL, CAP | A,B

33541-69010

2
Out of stock

13

SEAL,HIGH TENSION CORD (SIDE) | A,B This part replaces 33542-98000.

33542-38B00

2
Out of stock

14

CYLINDER, LH | A,B

11220-15301

1
Out of stock

15

CYLINDER, LH | A,B

11220-15301

1
Out of stock

16

GASKET,CYLINDER | A,B This part replaces 11241-15000.

11241-15001

2
Out of stock

17

10 X 85 STUD BO | A,B This part replaces 01421-10858.

01421-1085A

8
Out of stock
