1977 Suzuki GT500 Crankshaft Diagram

← All diagrams

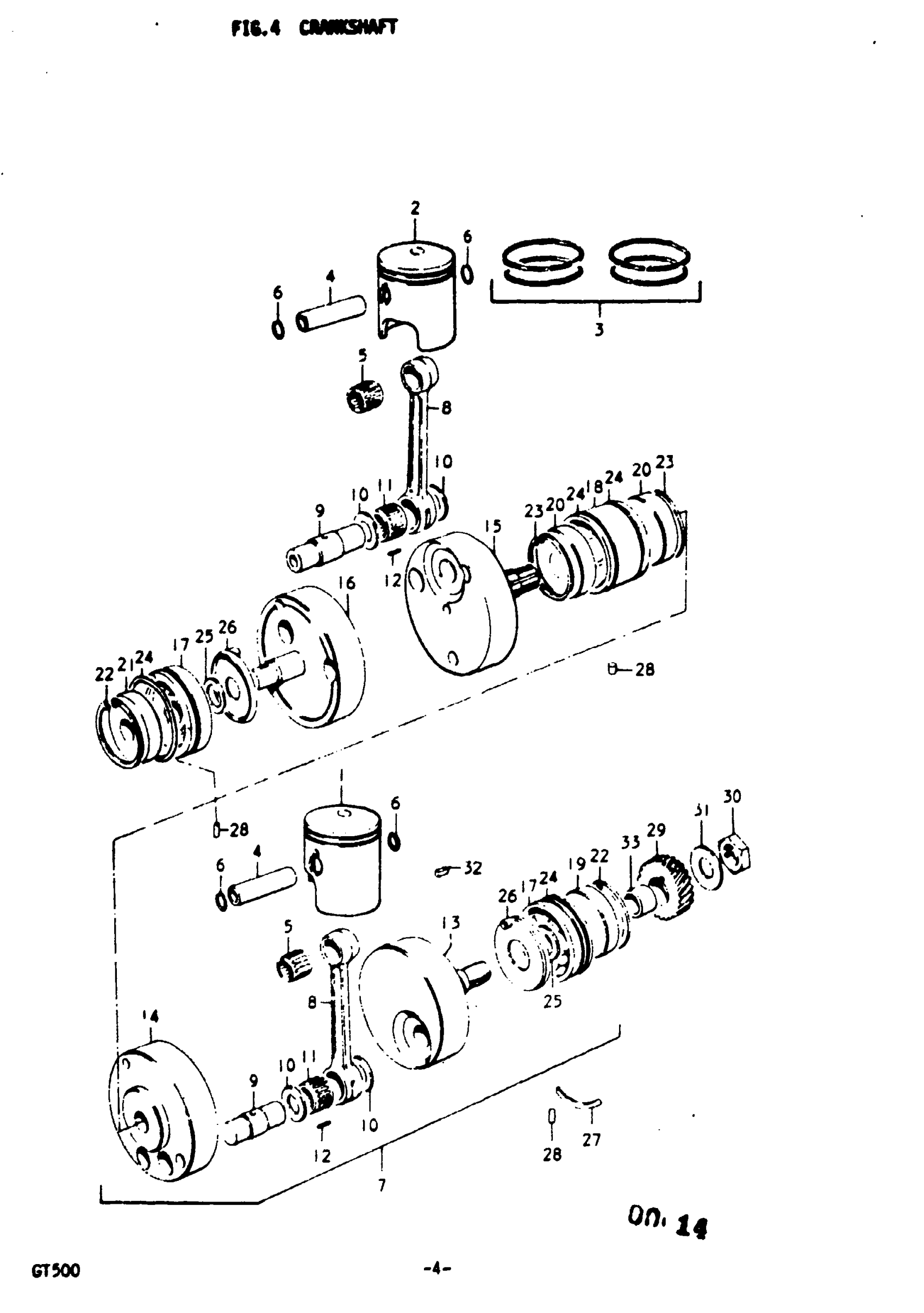

Find the part on the Crankshaft diagram for your 1977 Suzuki GT500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT500 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON, RH | A,B

12110-15103

1
Out of stock

1

PISTON SET | A,B; OS:0.5 This part replaces 12110-31712.

12103-31830-050

1
Out of stock

1

PISTON SET, OS: | A,B; OS:1.0 This part replaces 12110-31722.

12103-31830-100

1
Out of stock

2

PISTON, LH | A,B

12120-15103

1
Out of stock

2

PISTON SET,OS:0 | A,B; OS:0.5 This part replaces 12120-31712.

12103-31870-050

1
Out of stock

2

PISTON SET,0S: | A,B; OS:1.0 This part replaces 12120-31722.

12103-31870-100

1
Out of stock

3

RING SET, PISTON | A,B; FROM 12140-15012

12140-30010

2
Out of stock

3

RING SET, PISTON | A,B; OS:0.5 FROM 12140-15701

12140-30010-050

2
Out of stock

3

RING SET, PISTON | A,B; OS:1.0 FROM 12140-15711

12140-30010-100

2
Out of stock

4

PIN, PISTON | A,B This part replaces 12151-15001.

12151-13A00-0A0

2
Out of stock

5

BEARING (18X23X24) | A,B; FRC# 09263-18005 This part replaces 09263-18009.

09263-18021

2
Out of stock

6

CIRCLIP | A,B

09381-18002

4
Out of stock

7

CRANKSHAFT ASSY | A,B; Includes Item(s) 8 - 21

12200-15001

1
Out of stock

8

ROD, CONNECTING | A,B

12161-15000

2
Out of stock

9

PIN, CRANK | A,B

12211-15000

2
Out of stock

10

THRUST WASHER | A,B

09160-24007

4
Out of stock

11

CAGE, NEEDLE ROLLER | A,B

12215-15010

2
Out of stock

12

NEEDLE ROLLER | A,B

09261-03009

32
Out of stock

13

CRANKSHAFT, RH | A,B

12221-15000

1
Out of stock

14

WEB, CRANK | A,B

12222-15000

—
Out of stock

15

CRANKSHAFT, MIDDLE | A,B

12231-15001

—
Out of stock

16

CRANKSHAFT, LH | A,B

12261-15001

1
Out of stock

17

BEARING | A,B

09269-25003

2
Out of stock

18

BEARING, MIDDLE | A,B

09269-30002

1
Out of stock

19

OIL SEAL, RH | A,B

09283-35002

1
Out of stock

20

OIL SEAL, MIDDLE | A,B

09283-30003

2
Out of stock

21

OIL SEAL, LH | A,B

09283-25014

1
Out of stock
