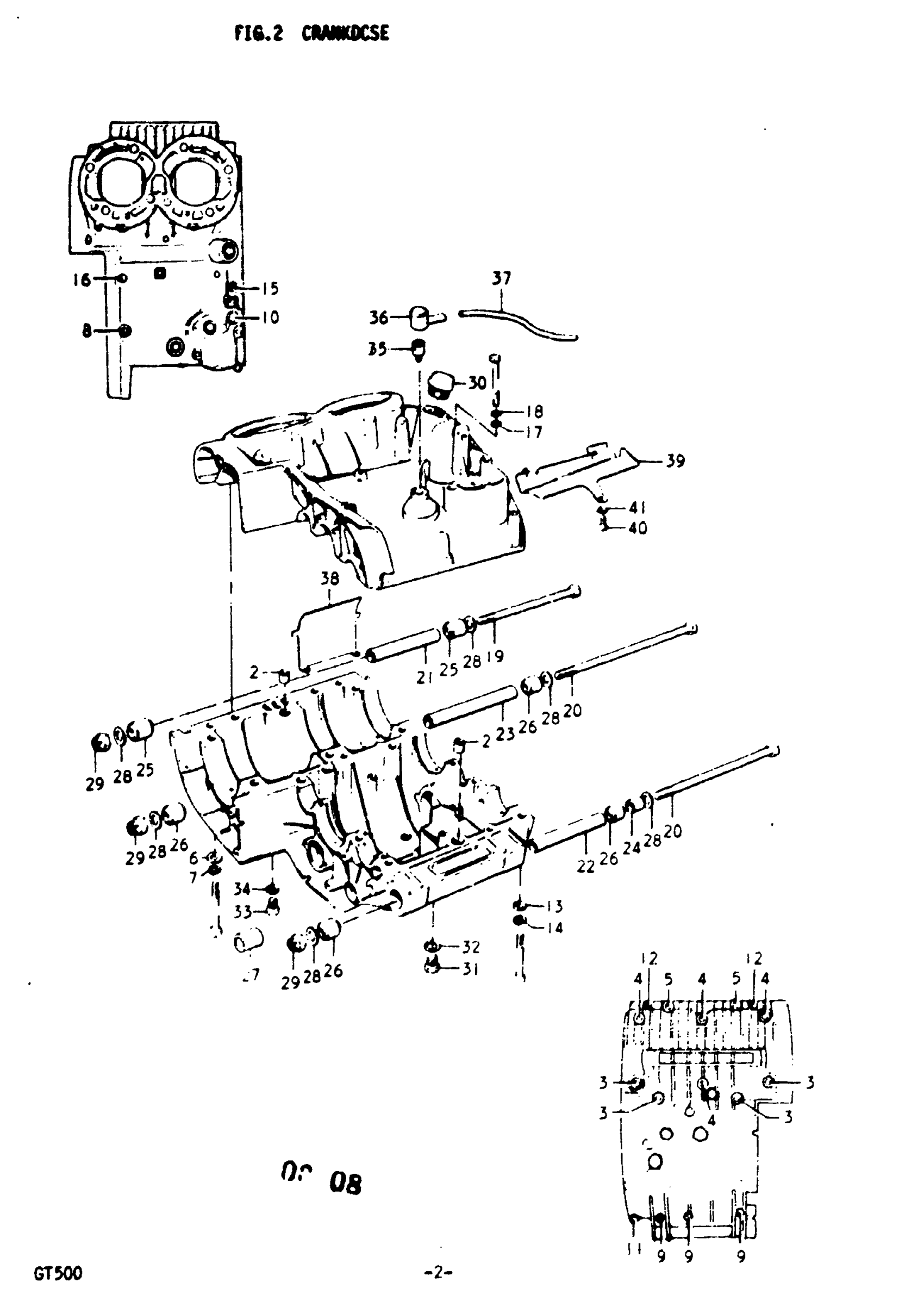

Suzuki GT500 (1977) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | A,B; Includes Item(s) 2 - 18

11300-15840

Unavailable

2

PIN | A,B This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT | A,B

09100-10035

Unavailable

4

BOLT | A,B This part replaces 01122-10808.

01500-1080B

$4.68

5

BOLT, 10X65 | A,B This part replaces 01122-10658.

01500-1065B

$5.88

6

WASHER | A,B This part replaces 08322-11108.

08322-01107

$2.15

7

LOCK WASHER | A,B This part replaces 08321-21108.

08321-01107

$1.84

8

BOLT | A,B This part replaces 01122-08908.

01500-0890B

$3.88

9

BOLT | A,B This part replaces 01122-08758.

01500-0875B

$4.10

10

BOLT | A,B This part replaces 01122-08708.

01500-0870B

$3.49

11

BOLT | A,B This part replaces 01122-08658.

01500-0865B

$3.49

12

BOLT | A,B This part replaces 01122-08608.

01500-0860B

$3.49

13

WASHER | A,B This part replaces 08322-11088.

08322-01087

$2.13

14

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

15

BOLT | A,B This part replaces 01112-06958.

01500-0695B

$20.93

16

BOLT | A,B This part replaces 01112-06708.

09100-06062

Unavailable

17

WASHER | A,B This part replaces 08322-21068.

08322-01067

$2.13

18

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$2.13

19

BOLT | A,B; 12x180

09104-12104

Unavailable

20

BOLT | A,B; 12x222

09104-12105

Unavailable

21

SPACER | A,B

09180-12024

Unavailable

22

SPACER | A,B

09180-12025

Unavailable

23

SPACER | A,B

09180-12026

Unavailable

24

SPACER | A,B

09180-12027

Unavailable

25

BUSHING | A,B

09319-12005

Unavailable

26

BUSHING | A,B

09319-12006

Unavailable
