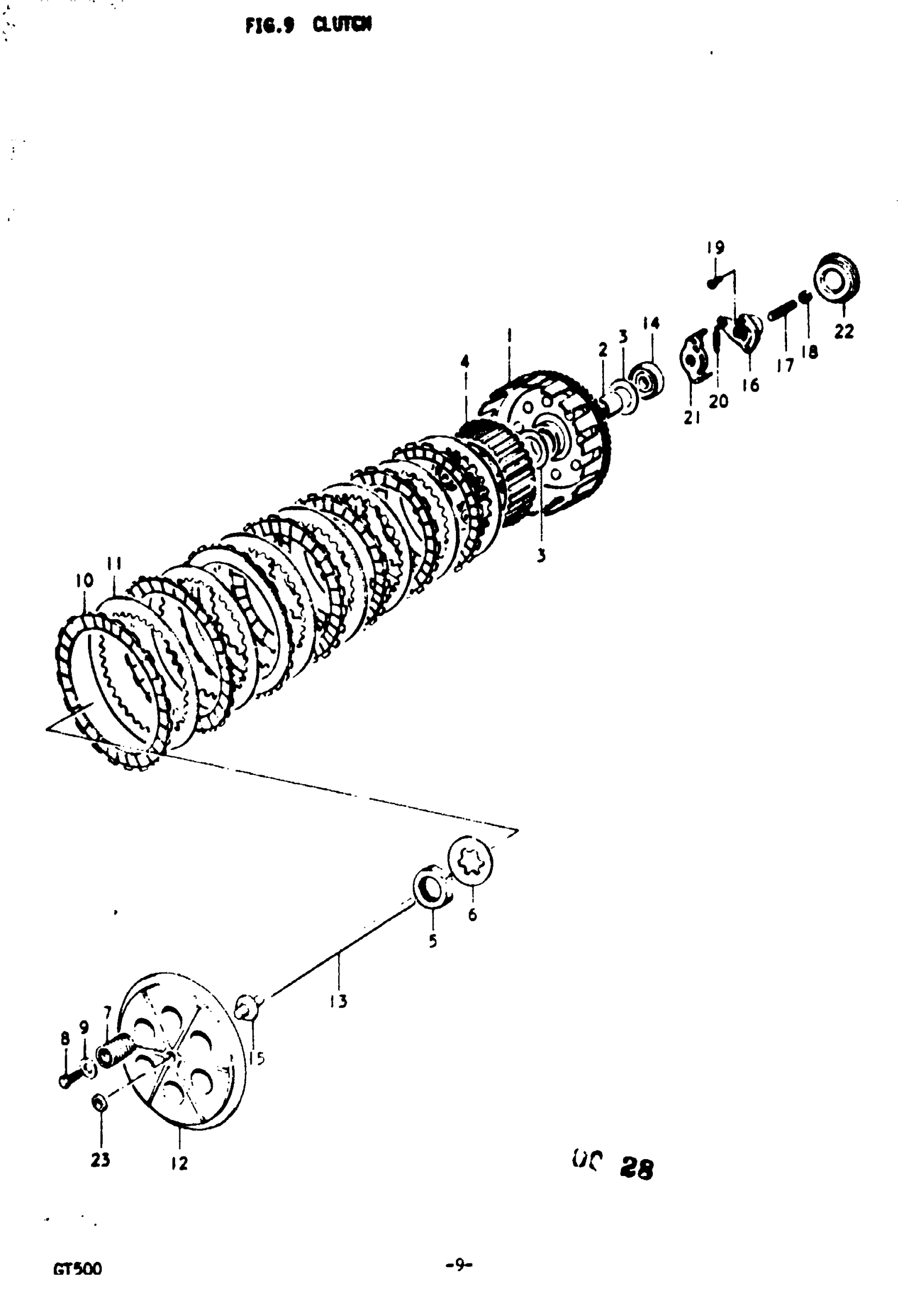

Suzuki GT500 (1977) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN | A,B; NT:65

21200-15002

Unavailable

2

SPACER | A,B

09180-22002

Unavailable

3

WASHER | A,B

08211-22423

$4.00

4

HUB | A,B

21411-15010

Unavailable

5

NUT | A,B

09140-22003

Unavailable

6

LOCK WASHER | A,B

09167-22005

$2.11

7

SPRING | A,B This part replaces 09440-19003.

09440-19027

$5.10

8

BOLT, CANISTER | A,B This part replaces 01112-06168.

01500-06167

$1.97

9

WASHER (6.5X20X1.6) | A,B This part replaces 09160-06020.

09160-06066

$1.89

10

PLATE, CLUTCH DRIVE NO.2 | A,B This part replaces 21441-16500.

21442-37401

$18.67

11

PLATE, DRIVE | A,B

21451-31000

$10.40

12

DISK, PRESSURE | A,B

21462-15000

Unavailable

13

ROD, PUSH | A,B

23111-15001

Unavailable

14

OIL SEAL | A,B

09285-08001

Unavailable

15

PIECE, PUSH | A,B

23121-15001

Unavailable

16

SCREW ASSY, RELEASE | A,B; Includes Item(s) 17 - 18

23200-15001

Unavailable

17

SCREW | A,B

09134-08006

Unavailable

18

NUT | A,B This part replaces 08312-31088.

08310-00087

$2.13

19

SCREW | A,B This part replaces 02111-06128.

02112-06127

$1.84

20

SPRING | A,B

09443-08001

$2.92

21

COVER, RELEASE SCREW | A,B

23241-15000

Unavailable

22

CAP | A,B

09250-30003

$3.89

23

OIL SEAL | A,B

09284-10002

$2.90
