1977 Suzuki GT500 Center Stand Diagram

← All diagrams

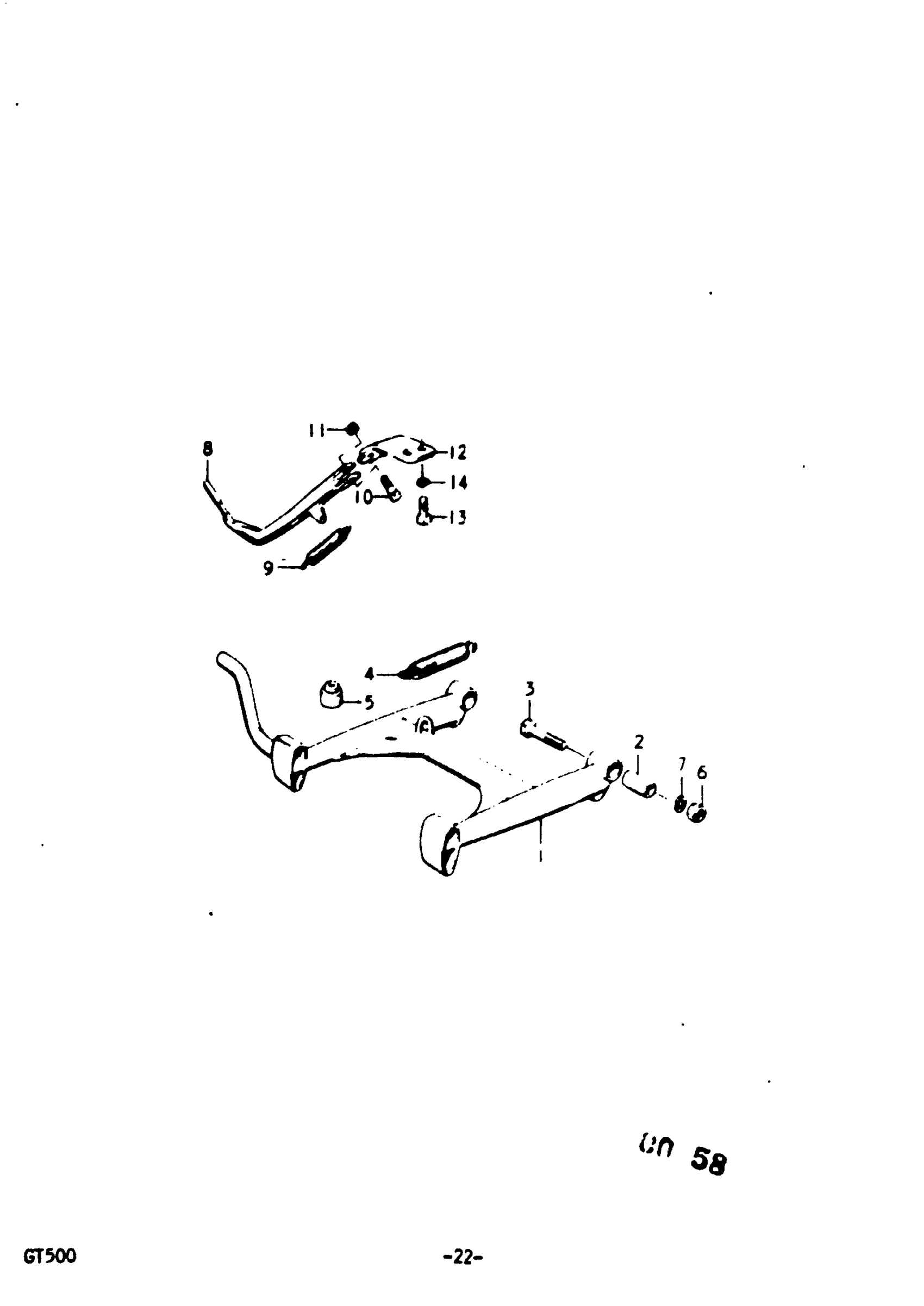

Find the part on the Center Stand diagram for your 1977 Suzuki GT500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT500 Center Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, CENTER | A,B

42100-15000

1
Out of stock

2

SPACER | A,B

09180-10001

2
Out of stock

3

BOLT | A,B

09100-10006

2
Out of stock

4

SPRING | A,B This part replaces 09443-16005.

09443-16005-XC0

1
Out of stock

5

CUSHION | A,B

09321-10001

2
Out of stock

6

NUT | A,B This part replaces 08312-11108.

08310-00107

2
Out of stock

7

LOCK WASHER | A,B This part replaces 08321-21108.

08321-01107

2
Out of stock

8

STAND, PROP | A,B

42310-15100

1
Out of stock

9

SPRING | A,B This part replaces 09443-14005.

09443-14017

1
Out of stock

10

BOLT | A,B This part replaces 09100-10007.

09100-10287

1
Out of stock

11

NUT | A,B This part replaces 08312-32108.

08310-00107

1
Out of stock

12

BRACKET | A,B

42330-15000

1
Out of stock

13

BOLT | A,B This part replaces 01111-10258.

01500-10257

2
Out of stock

14

LOCK WASHER | A,B This part replaces 08321-21108.

08321-01107

2
Out of stock
