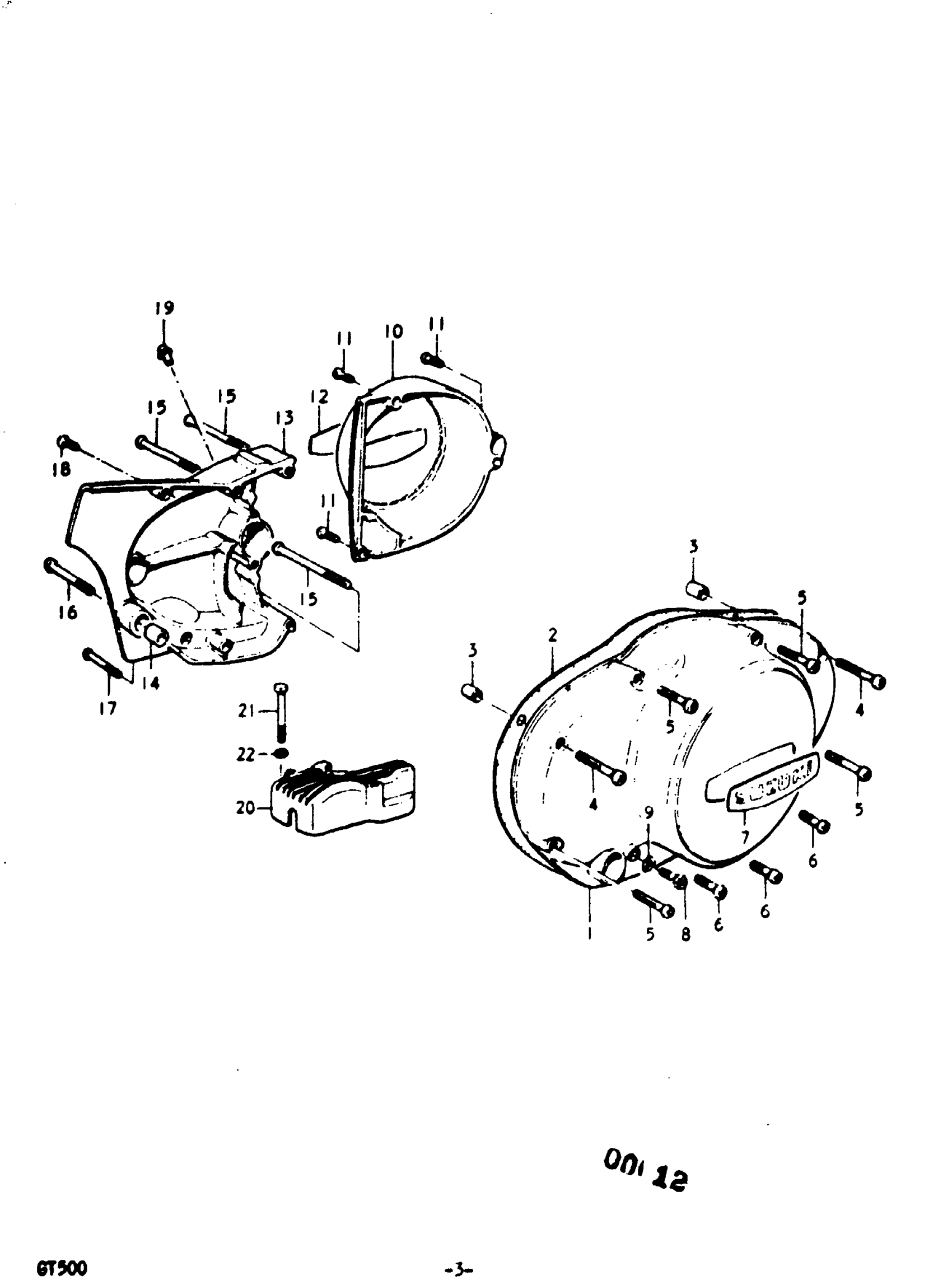

Suzuki GT500 (1977) COVER Diagram

#

Description
Price

1

COVER, CLUTCH | A,B

11341-15601

Unavailable

2

GASKET,CLUTCH C | A,B This part replaces 11482-15000.

11482-15001

Unavailable

3

PIN | A,B

04211-09129

$1.64

4

SCREW (6X45) | A,B This part replaces 02112-06458.

02112-06457

$1.77

5

SCREW (6X40) | A,B This part replaces 02112-06408.

02112-06407

$1.80

6

SCREW | A,B This part replaces 02112-06258.

02112-06257

$1.68

7

EMBLEM | A,B

68233-33000

Unavailable

8

SCREW (6X10) | A,B This part replaces 09128-06004.

09128-06044

$1.38

9

GASKET | A,B

09168-06001

$1.28

10

COVER, MAGNETO | A,B

11351-15601

Unavailable

11

SCREW | A,B This part replaces 02112-06208.

02112-06207

$1.77

12

EMBLEM | A,B

68233-34000

Unavailable

13

COVER, ENGINE SPROCKET | A,B

11361-15601

Unavailable

14

PIN | A,B

04211-09129

$1.64

15

SCREW | A,B This part replaces 02112-06758.

02112-06757

$3.37

16

SCREW (6X45) | A,B This part replaces 02112-06458.

02112-06457

$1.77

17

SCREW | A,B This part replaces 02112-06358.

02112-06357

$1.77

18

SCREW | A,B

02112-06307

$1.99

19

NIPPLE, GREASE | A,B

08351-11009

$8.17

20

COVER, OIL PUMP | A,B

11411-15001

Unavailable

21

BOLT | A,B This part replaces 01112-06358.

64455-07L00

$1.61

22

WASHER | A,B This part replaces 08322-21068.

08322-01067

$1.86
