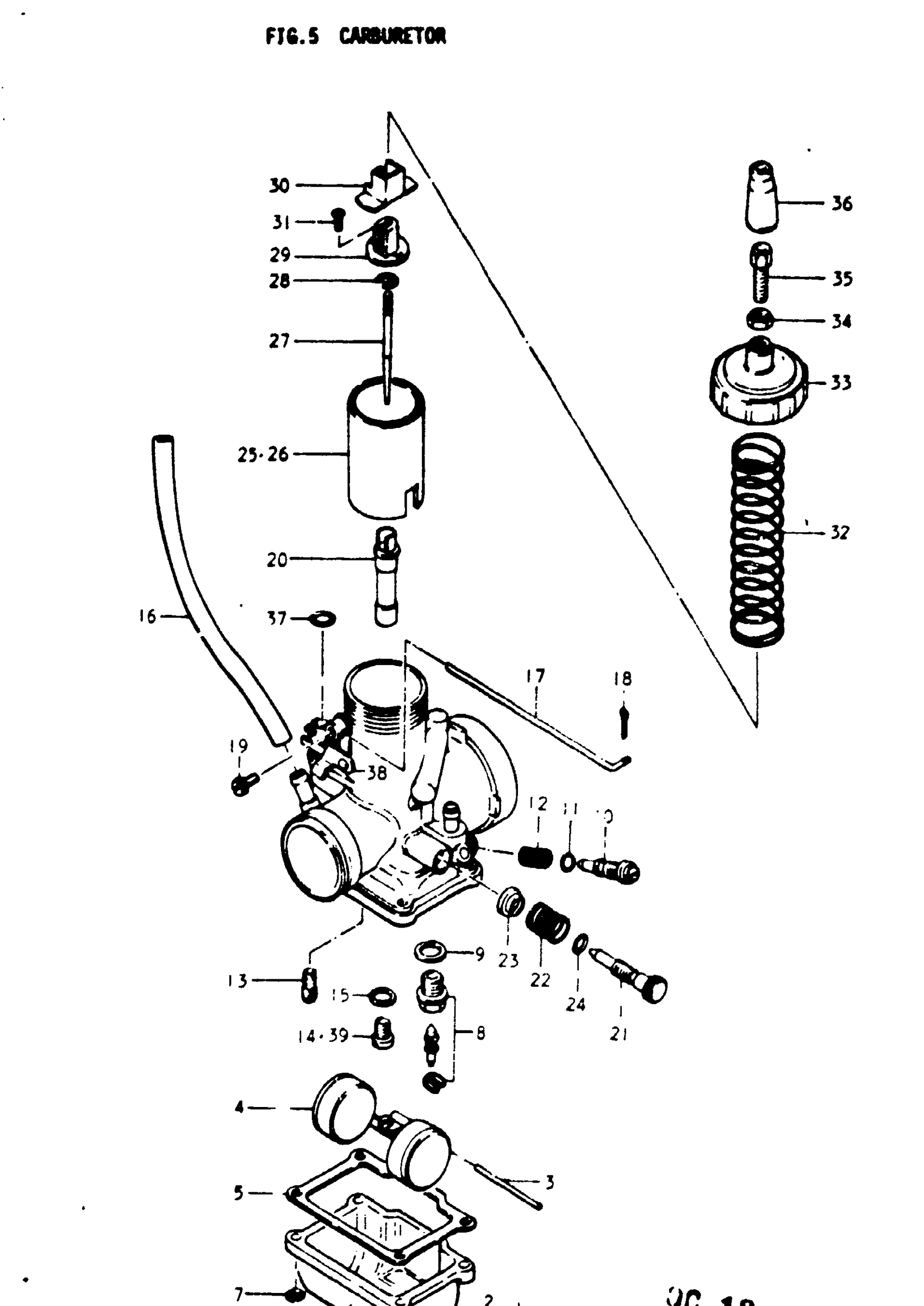

Suzuki GT500 (1977) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY, RH | A,B

13201-15313

Unavailable

CARBURETOR ASSY, LH | A,B; Includes Item(s) 1 - 14

13202-15313

Unavailable

1

PLUG, DRAIN | A,B

13247-05010

$5.11

2

GASKET | A,B

13249-05010

$1.98

3

.PIN, FLOAT | A,B

13254-01010

$3.62

4

FLOAT | A,B

13252-18010

Unavailable

5

GASKET | A,B

13251-33110

$9.03

6

SCREW | A,B This part replaces 02111-04168.

02112-0416A

$1.49

7

LOCK WASHER | A,B This part replaces 08321-21048.

08321-0104A

$1.84

8

VALVE,NEEDLE | A,B This part replaces 13370-18010.

13370-41500

Unavailable

9

GASKET | A,B

13392-16600

$1.94

10

SCREW, PILOT AIR | A,B

13269-15011

Unavailable

11

O RING | A,B

13295-33010

$4.48

12

SPRING, PILOT AIR SCREW | A,B

13268-01010

$5.28

13

JET, PILOT (30) | A,B; #30 This part replaces 09492-30003.

09492-30006

$9.55

14

JET, MAIN (97.5) | A,B; #97.5 This part replaces 09491-97001.

09491-97003

$11.38

15

WASHER, MAIN JET | A,B; Includes Item(s) 16 - 24

13382-03110

$2.80

16

HOSE(4.5X8.5X60 | A,B This part replaces 13683-31610.

09355-45001-600

$9.48

17

ROD, STARTER | A,B

13425-15010

Unavailable

18

PIN | A,B This part replaces 04111-12108.

04111-1210A

$1.50

19

BOLT, STARTER ROD | A,B

13429-15010

Unavailable

20

JET, NEEDLE | A,B; P-4

09494-00051

Unavailable

21

SCREW, THROTTLE STOP | A,B

13267-31011

Unavailable

22

SPRING | A,B

13268-31011

Unavailable

23

COVER | A,B

13291-34010

Unavailable

24

O RING | A,B This part replaces 13294-30010.

13278-02340

$1.91
