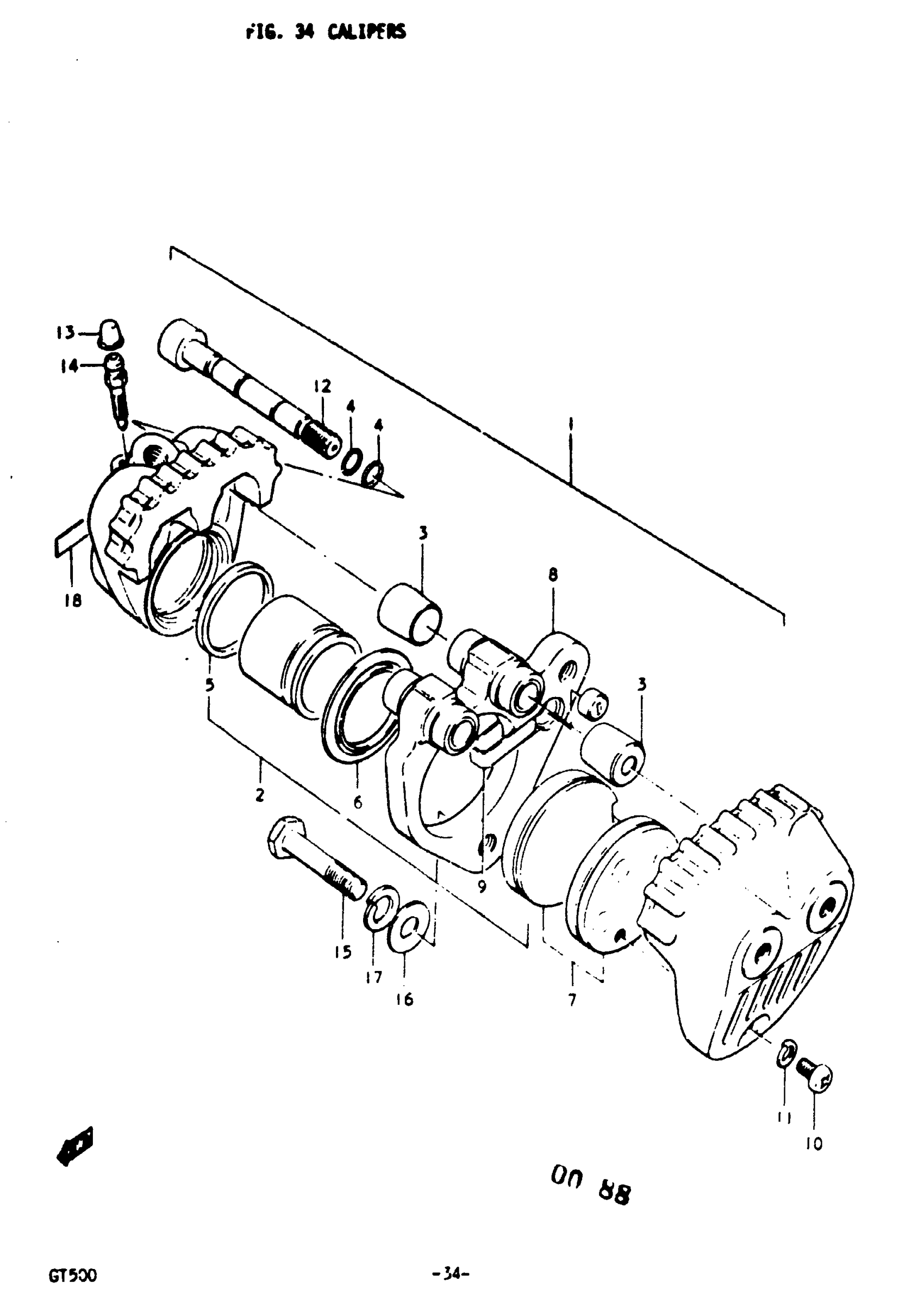

Suzuki GT500 (1977) CALIPERS Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 2 - 14 This part replaces 59100-33111.

59100-33112

Unavailable

2

PISTON SET | A,B This part replaces 59100-18831.

59100-18834

Unavailable

3

DUST SEAL | A,B

59112-18410

Unavailable

4

O RING | A,B

59111-18410

Unavailable

5

SEAL,PISTON | A,B This part replaces 59107-18410.

69107-05CF0

$9.07

6

BOOT | A,B

59108-18410

Unavailable

7

PAD SET | A,B This part replaces 59100-18840.

59300-18810

Unavailable

8

HOLDER, CALLPERS | A,B

59150-18411

Unavailable

9

STOPPER, HOLDER | A,B

59153-18410

Unavailable

10

SCREW | A,B This part replaces 02111-06128.

02112-06127

$1.84

11

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$2.13

12

AXLE | A,B

59105-18411

Unavailable

13

CAP, BLEEDER | A,B This part replaces 59122-18410.

55156-66310

$5.17

14

BLEEDER | A,B

59121-18410

$8.73

15

BOLT (10X38) | A,B This part replaces 09104-10007.

09104-10029

$3.55

16

WASHER | A,B This part replaces 08322-21108.

08322-01107

$2.15

17

LOCK WASHER | A,B This part replaces 08321-21108.

08321-01107

$1.84

18

EMBLEM | A,B

68334-18400

Unavailable
