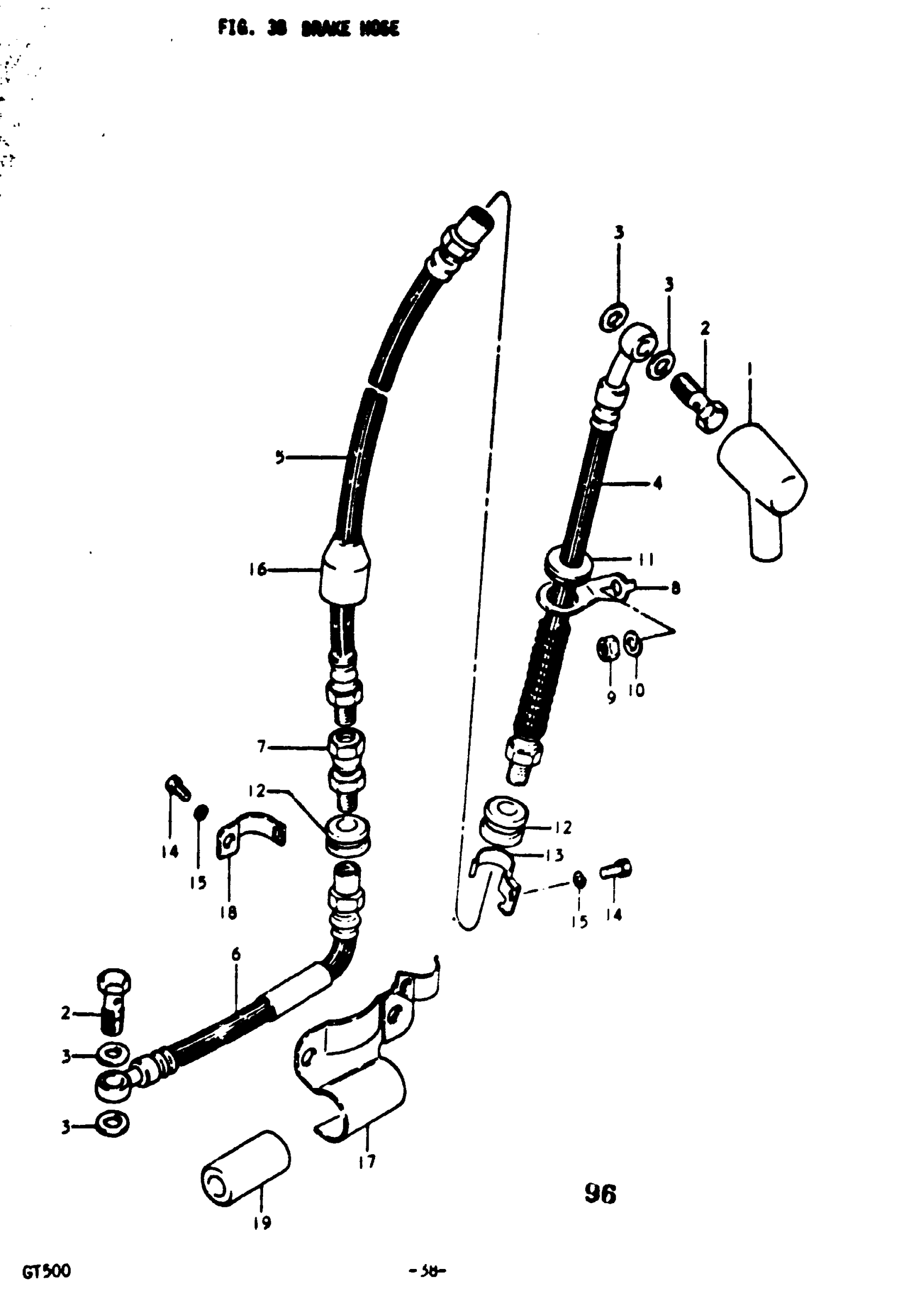

Suzuki GT500 (1977) BRAKE HOSE Diagram

#

Description
Price

1

BOOT, MASTER CYLINDER | A,B This part replaces 59711-18400.

59711-49001

$7.51

2

UNION | A,B This part replaces 09360-10003.

09360-10017

$3.42

3

WASHER (10X15X1.5) | A,B This part replaces 09161-10005.

09161-10009

$1.84

4

NO DESCRIPTION AVAILABLE | A,B This part replaces 59480-34902.

59480-34903

Unavailable

5

NO DESCRIPTION AVAILABLE | A,B This part replaces 59240-34011.

59240-34012

Unavailable

6

BRAKE HOSE 3 | A,B This part replaces 59520-31012.

59520-31013

Unavailable

7

ADAPTOR, BRAKE HOSE | A,B

59290-33110

Unavailable

8

GUIDE, BRAKE HOSE | A,B

59243-18401

Unavailable

9

NUT | A,B This part replaces 08312-32108.

08310-00107

$2.19

10

LOCK WASHER | A,B This part replaces 08321-21108.

08321-01107

$1.84

11

GROMMET | A,B This part replaces 09308-14007.

09308-14009

Unavailable

12

BUSHING | A,B

09305-14003

Unavailable

13

CLAMP | A,B

51266-18400

Unavailable

14

FRM CVR,SCREW(6 | A,B This part replaces 09128-06011.

09128-06092

$1.92

15

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$2.13

16

BOOT, ADAPTOR | A,B

59265-33100

Unavailable

17

COVER, BRAKE HOSE | A,B

59280-33101

Unavailable

18

CLAMP | A,B

59268-33100

Unavailable

19

CUSHION | A,B

09320-14003

Unavailable
