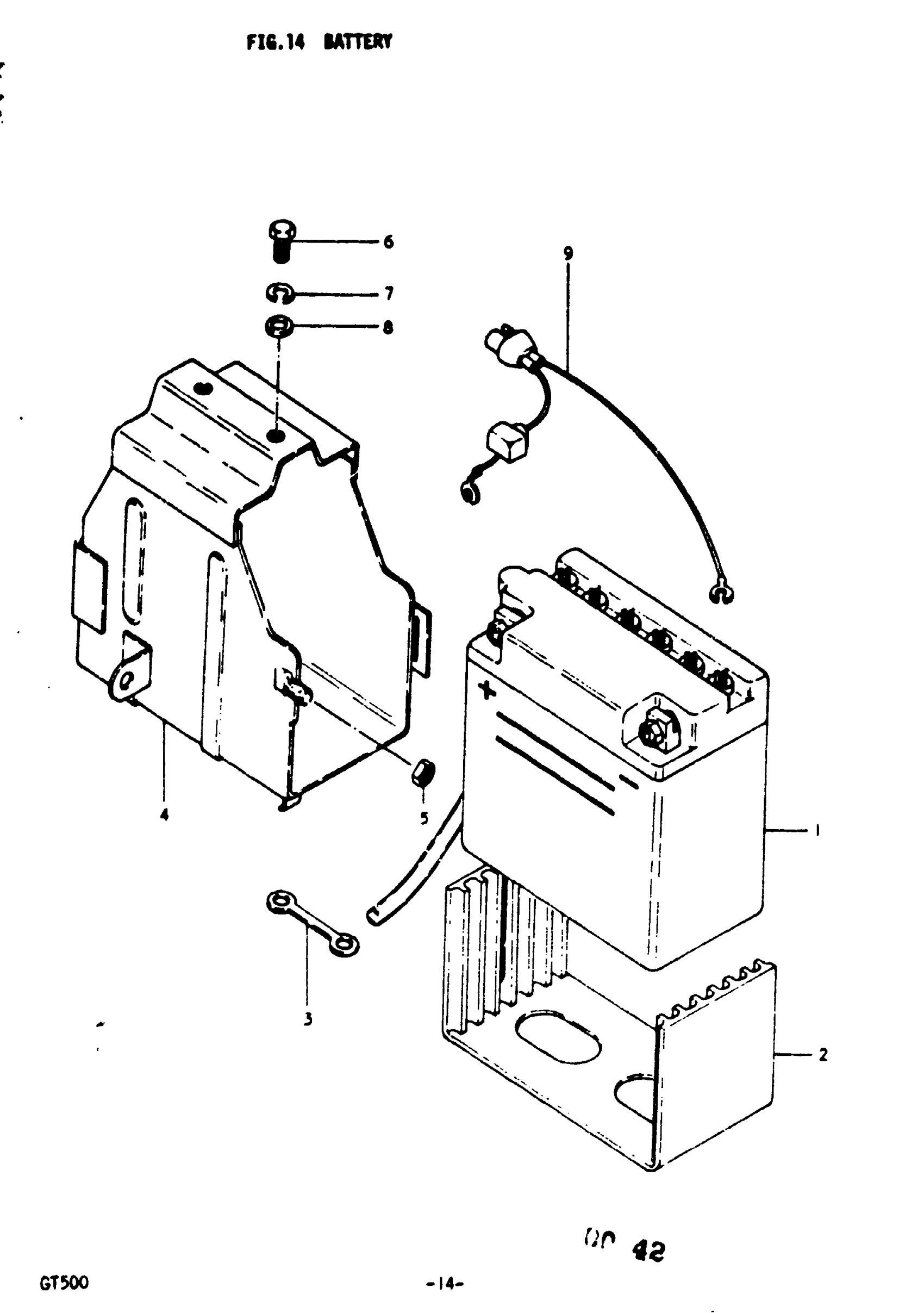

Suzuki GT500 (1977) BATTERY Diagram

#

Description

Price

1

YB7-A BATTERY(Y | A,B; 12V, 7AH This part replaces 33610-33120.

33610-10311

$100.82

2

PROTECTOR | A,B

33651-15000

Unavailable

3

CLAMP, EXTASUST PIPE | A,B

09404-07704

Unavailable

4

HOLDER, BATTERY | A,B

41540-15002

Unavailable

5

NUT, LICENSE HOLDER | A,B This part replaces 08313-11067.

08313-10067

$1.84

6

BOLT, REAR | A,B This part replaces 01122-08208.

01500-08207

$2.53

7

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

8

WASHER | A,B This part replaces 08322-21088.

08322-01087

$2.13

9

LEAD WIRE, BATTERY | A,B

36860-15020

Unavailable
