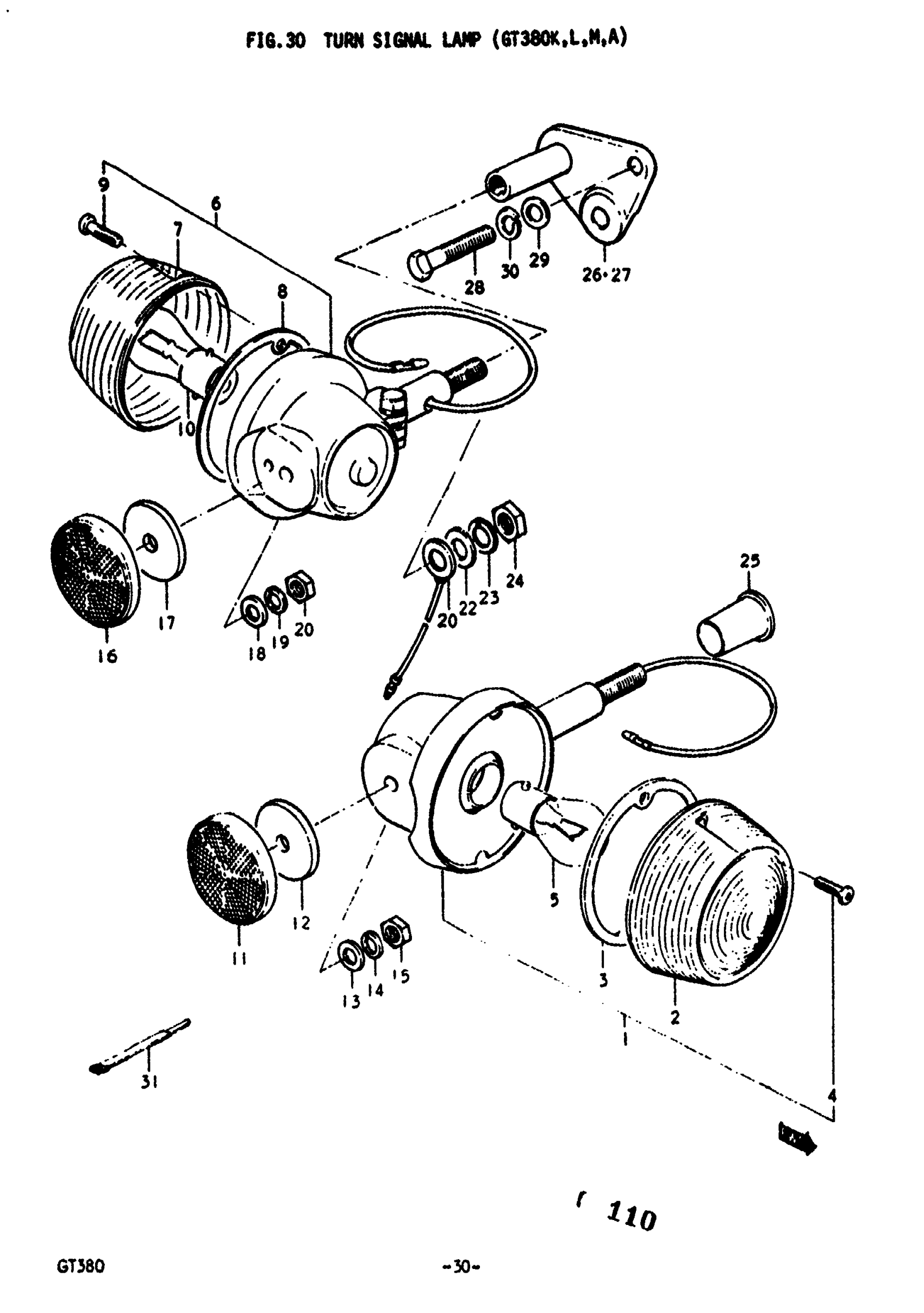

Suzuki GT380 (1977) TURN SIGNAL LAMP (GT380K Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL | K,L,M,A; FROM 35601-31010-999; Includes Item(s) 2 - 5

35601-31010

Unavailable

2

LENS | K,L,M,A

35612-31010

Unavailable

3

GASKET | K,L,M,A

35613-03610

$13.34

4

SCREW | K,L,M,A This part replaces 02111-03168.

02112-0316B

$2.35

5

BULB | K,L,M,A; 12V, 32CP

09471-12006

$3.98

6

NO DESCRIPTION AVAILABLE | K,L,M,A; FROM 35600-31830; Includes Item(s) 7 - 10 This part replaces 35603-31010.

35603-31010-999

Unavailable

7

LENS | K,L; RED

35652-31610

Unavailable

7

LENS | M,A; AMBER

35612-31010

Unavailable

8

GASKET | K,L,M,A

35613-03610

$13.34

9

SCREW | K,L,M,A This part replaces 02111-03168.

02112-0316B

$2.35

10

BULB | K,L,M,A; 12V, 32CP

09471-12006

$3.98

11

REFLEX REFLECTOR FRONT | K,L,M,A This part replaces 35950-31010.

35950-49080

$17.24

12

CUSHION | K,L,M,A

35656-31010

Unavailable

13

WASHER (5.5X18X1) | K,L,M,A; 5.5x18x1 This part replaces 09160-05003.

09160-05045

$1.93

14

LOCK WASHER | K,L,M,A This part replaces 08321-21058.

08321-0105A

$1.84

15

NUT | K,L,M,A This part replaces 08311-11058.

08310-00057

$1.84

16

REFLEX REFLECTOR, REAR | K,L,M,A

35970-31610

Unavailable

17

CUSHION | K,L,M,A

35656-31010

Unavailable

18

WASHER (5.5X18X1) | K,L,M,A; 5.5x18x1 This part replaces 09160-05003.

09160-05045

$1.93

19

LOCK WASHER | K,L,M,A This part replaces 08321-21058.

08321-0105A

$1.84

20

NUT | K,L,M,A This part replaces 08311-11058.

08310-00057

$1.84

21

LEAD WIRE | K,L This part replaces 36660-34000.

48528-78200

$5.82

22

WASHER | K,L,M,A This part replaces 08322-21108.

08322-01107

$2.15

23

LOCK WASHER | K,L,M,A This part replaces 08321-21108.

08321-01107

$1.84

24

COVER, FRONT TURN SIGNAL | K,L,M,A

35698-28000

Unavailable

25

NUT | K,L,M,A This part replaces 08312-12108.

08310-00107

$2.19

26

BRACKET, TURNSIGNAL LAMP RH | K,L,M,A

41640-33001

Unavailable

27

BRACKET, TURNSIGNAL LAMP LH | K,L,M,A

41650-33001

Unavailable

28

BOLT | K,L,M,A This part replaces 01111-10207.

01500-1020B

$3.16

29

WASHER | K,L,M,A This part replaces 08322-21108.

08322-01107

$2.15

30

LOCK WASHER | K,L,M,A This part replaces 08321-21108.

08321-01107

$1.84

31

CLAMP | K; TO 09407-11302

09410-00020

Unavailable

31

CLAMP | M,A This part replaces 09407-11302.

09407-18302

$2.28
