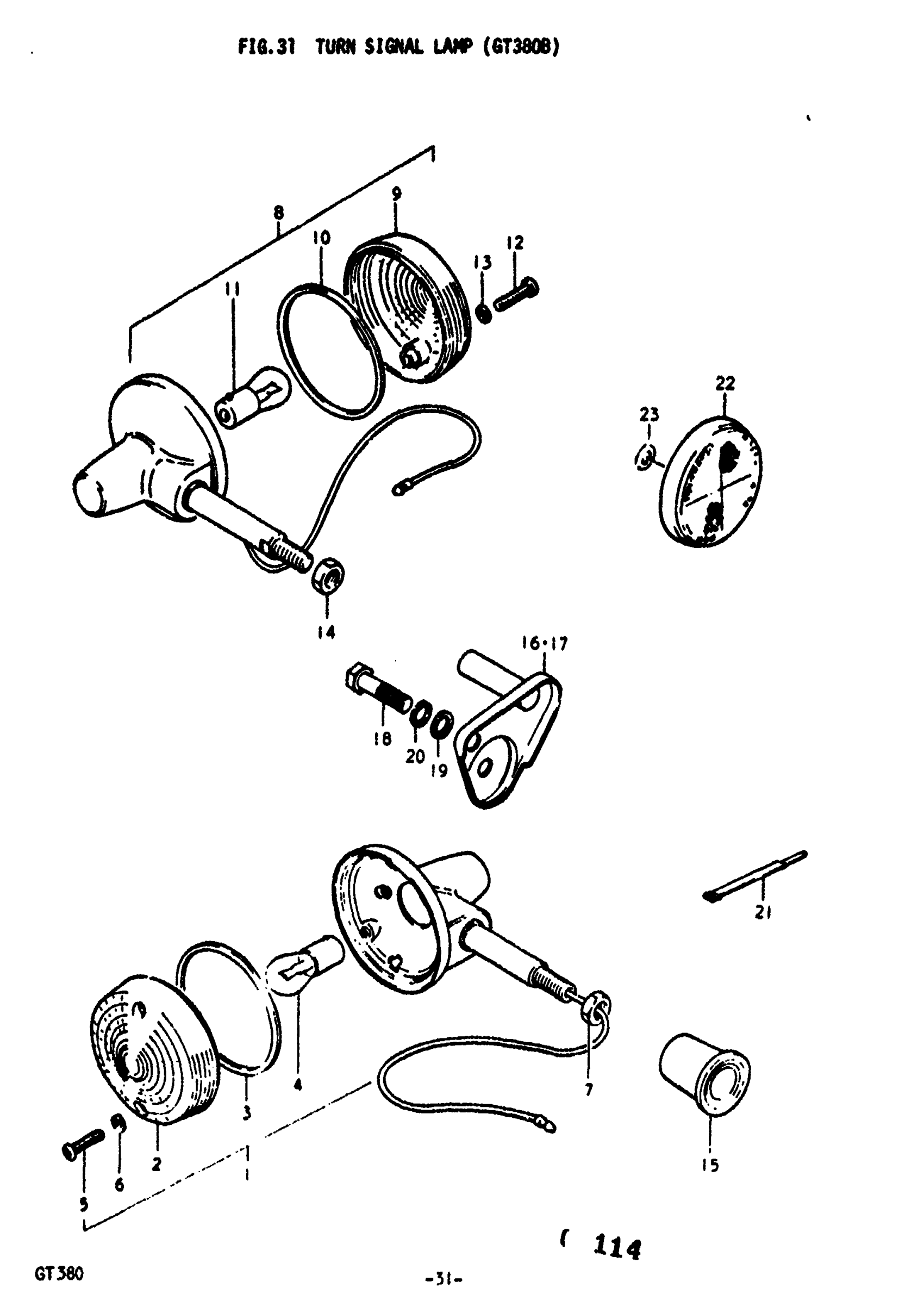

Suzuki GT380 (1977) TURN SIGNAL LAMP (GT380B) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 35601-29620.

35601-29620-999

Unavailable

2

LENS

35612-28620

$8.98

3

GASKET

35613-28620

$4.55

4

BULB | 12V, 23W

09471-12006

$3.98

5

SCREW

02111-04258

Unavailable

6

GASKET

35627-43010

$2.28

7

NUT This part replaces 08312-32108.

08310-00107

$2.19

8

LAMP RR TURN SI | Includes Item(s) 9 - 14 This part replaces 35603-18411.

35603-25610-999

Unavailable

9

LENS

35612-28620

$8.98

10

GASKET

35613-28620

$4.55

11

BULB | 12V, 23W

09471-12006

$3.98

12

SCREW

02111-04258

Unavailable

13

GASKET

35627-43010

$2.28

14

NUT This part replaces 08312-32108.

08310-00107

$2.19

15

COVER, FRONT TURNSIGNAL

35698-28000

Unavailable

16

BRACKET, TURNSIGNAL LAMP RH

41640-33001

Unavailable

17

BRACKET, TURNSIGNAL LAMP LH

41650-33001

Unavailable

18

BOLT This part replaces 01111-10207.

01500-1020B

$3.16

19

WASHER This part replaces 08322-21108.

08322-01107

$2.15

20

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

21

CLAMP This part replaces 09407-11302.

09407-18302

$2.28

22

REFLEX REFLECTOR, FRONT

35950-45010

$17.09

23

WASHER This part replaces 08322-21058.

08322-01057

$2.13
