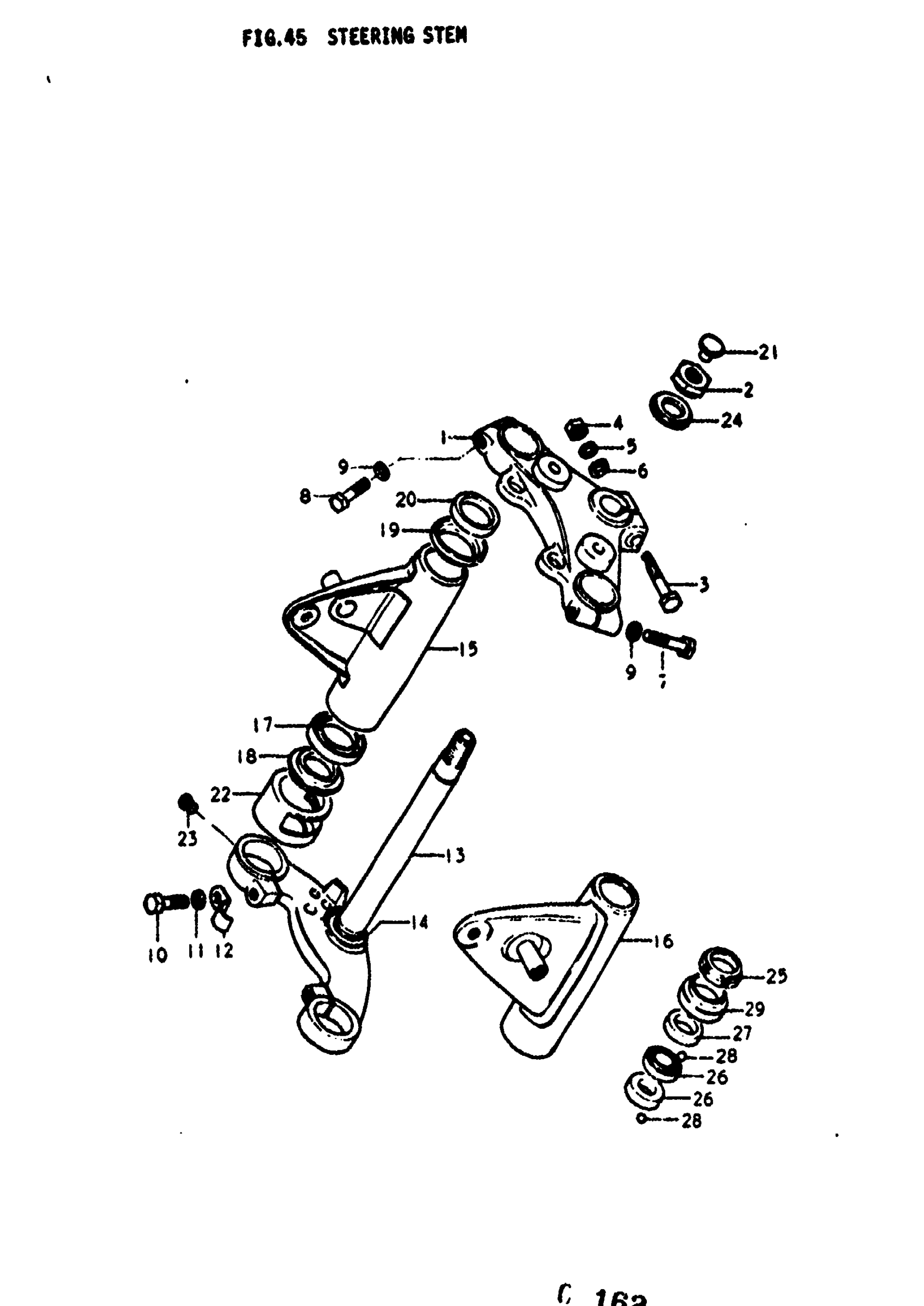

Suzuki GT380 (1977) STEERING STEM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | L This part replaces 51311-33001-019.

51311-33002-291

Unavailable

1

NO DESCRIPTION AVAILABLE | M,A,B This part replaces 51311-33002-019.

51311-33002-291

Unavailable

2

NUT | L,M,A,B This part replaces 51353-31700.

51353-31710

Unavailable

3

BOLT | L,M,A,B This part replaces 01122-08508.

01500-08507

$3.05

4

NUT | L,M,A,B This part replaces 08312-12087.

08310-00087

$2.13

5

.LOCK WASHER | L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

6

WASHER | L,M,A,B This part replaces 08322-11088.

08322-01087

$2.13

7

BOLT | L,M,A,B This part replaces 01121-10407.

01500-10407

$3.55

8

BOLT | L,M,A,B

09100-10021

Unavailable

9

LOCK WASHER | L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84

10

BOLT | L,M,A,B This part replaces 01122-10408.

01500-10407

$3.55

11

LOCK WASHER | L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84

12

CLIP | L

51452-08010

Unavailable

13

STEM, STEERING | L,M,A,B; Includes Item(s) 14

51410-33700

Unavailable

14

OUTER RACE | L,M,A,B

51621-33001

$16.25

15

BRACKET, HEADLAMP RH | L,M,A; CHROME-PLATED

51530-33100

Unavailable

15

NO DESCRIPTION AVAILABLE | B This part replaces 51530-33611-291.

51500-33820-126

Unavailable

16

BRACKET, HEADLAMP LH | L,M,A; CHROME-PLATED

51540-33100

Unavailable

16

NO DESCRIPTION AVAILABLE | B This part replaces 51540-33611-291.

51500-33820-126

Unavailable

17

SEAT, HEADLAMP BRACKET | L,M,A,B

51551-31000

Unavailable

18

CUSHION, HEADLAMP BRACKET | L,M,A,B

51553-33000

Unavailable

19

CAP, HEADLAMP | L,M,A,B

51555-31000

Unavailable

20

CUSHION, BRACKET UPPER | L,M,A,B

51556-33000

Unavailable

21

CAP, STEERING | L,M,A,B

09250-08005

$2.45

22

COVER, STEERING STEM | L

51575-33100

Unavailable

22

COVER, STEERING STEM | M,A,B

51570-37000

Unavailable

23

SCREW | M,A This part replaces 02141-05067.

09125-05117

$2.72

24

WASHER | L,M,A,B

51356-31700

Unavailable

25

NUT, STEERING STEM | K,L,M,A,B

51631-28000

$17.37

26

RACE, INNER, LOWER | K,L; TO 51611-93002 This part replaces 51611-33001.

51611-33002

$13.81

26

PACE, STEERING INNER | M,A,B

51611-33002

$13.81

27

PACE, STEERING OUTER UPPER | K,L,M,A,B

51621-30001

Unavailable

28

BALL,STEERING | K,L,M,A,B

06111-08003

$1.49

29

DUST SEAL | K,L,M,A,B

51643-30000

Unavailable
