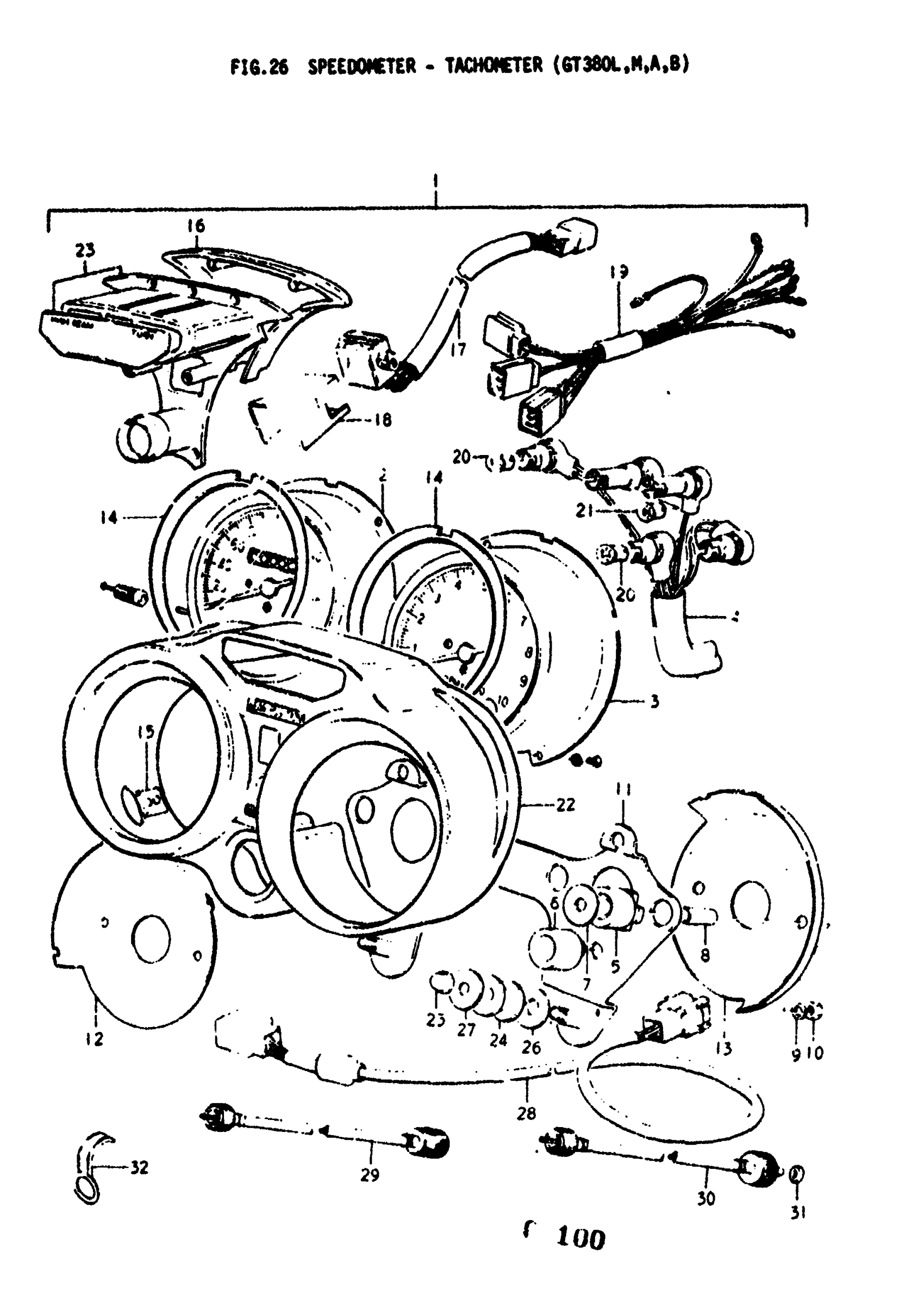

Suzuki GT380 (1977) SPEEDOMETER - TACHOMETER (GT380L Diagram

#

Description
Price

1

SPEEDOMETER/TACHOMETER ASSY | L,M; MILE SCALE TO 34100-33634

34100-33730

Unavailable

1

NO DESCRIPTION AVAILABLE | A; MILE SCALE TO 34100-33634 This part replaces 34100-33633.

34100-33637

Unavailable

1

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 2 - 23 This part replaces 34100-33636.

34100-33637

Unavailable

2

NO DESCRIPTION AVAILABLE | L,M; MILE SCALE TO 34110-33631 This part replaces 34101-33630.

34110-33635

Unavailable

2

NO DESCRIPTION AVAILABLE | A; MILE SCALE TO 34110-33634 This part replaces 34110-33631.

34110-33635

Unavailable

2

NO DESCRIPTION AVAILABLE | B This part replaces 34110-33634.

34110-33635

Unavailable

3

TACHOMETER ASSY | L,M; TO 34210-32121 This part replaces 34201-33120.

34210-33123

Unavailable

3

TACHOMETER | A; FROM 34210-33121

34210-33122

Unavailable

3

NO DESCRIPTION AVAILABLE | B This part replaces 34210-33124.

34210-33126

Unavailable

4

SOCKET ASSY | L,M,A,B

34170-33620

Unavailable

5

CUSHION (1) | L,M,A,B

34955-16420

$4.43

6

CUSHION (2) | L,M,A,B

34956-33600

Unavailable

7

WASHER | L,M,A,B; FROM 09160-05006

09160-05024

$1.78

8

SPACER | L,M,A,B

34972-16420

Unavailable

9

LOCK WASHER | L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

10

NUT | L,M,A,B This part replaces 08311-11058.

08310-00057

$1.84

11

BRACKET | L,M,A,B

34950-33120

Unavailable

12

PLATE, SPEEDOMETER | L,M; TO 34960-33602

34960-33601

Unavailable

12

PLATE, SPEEDOMETER | A,B

34960-33602

Unavailable

13

PLATE, TACHOMETER | L,M; TO 34961-33602

34961-33601

Unavailable

13

PLATE, TACHOMETER | A,B

34961-33602

Unavailable

14

GASKET | L,M,A,B

34181-33600

Unavailable

15

CAP | L,M,A,B

34192-33600

Unavailable

16

UNDER COVER | L,M,A,B

34982-33120

Unavailable

17

NO DESCRIPTION AVAILABLE | L,M,A,B; FROM 34990-33120 This part replaces 34990-33121.

34990-33123

Unavailable

18

COVER | L,M,A,B

34161-33120

Unavailable

19

LEAD WIRE ASSY | L,M

34980-33120

Unavailable

20

BULB | L,M,A,B; 12V, 3.4W

09471-12001

$1.65

21

BULB, TURN SIGNAL | L,M,A,B; 12V,1.7W

09471-12004

$2.69

22

NO DESCRIPTION AVAILABLE | L,M,A,B This part replaces 34051-34120.

34051-34121

Unavailable

23

NO DESCRIPTION AVAILABLE | L,M,A,B; FROM 34111-33120 This part replaces 34111-33121.

36380-33628

Unavailable

24

CUSHION, BRACKET | L,M,A,B

34956-15100

$3.71

25

NUT, LICENSE HOLDER | L,M,A,B This part replaces 08313-11067.

08313-10067

$1.84

26

WASHER | L,M,A,B This part replaces 09160-06007.

09160-06084

$1.78

27

WASHER | L,M,A; Includes Item(s) 28 This part replaces 08322-21088.

08322-01087

$2.13

28

LEAD WIRE, CHANGE INDICATOR | L,M,A,B

36660-31200

Unavailable

29

CABLE,SPEEDOMET | L,M; TO 34910-18130 This part replaces 34910-34031.

34910-18991

$31.50

29

CABLE,SPEEDOMET | A,B This part replaces 34910-18130.

34910-18991

$31.50

30

CABLE,TACHOMETE | L,M,A,B; Includes Item(s) 31 This part replaces 34940-33030.

34940-33032

Unavailable

31

OIL SEAL | L,M This part replaces 34928-08430.

34943-11030

$3.11

32

CLAMP, CABLE | L,M,A,B

34991-18100

Unavailable
