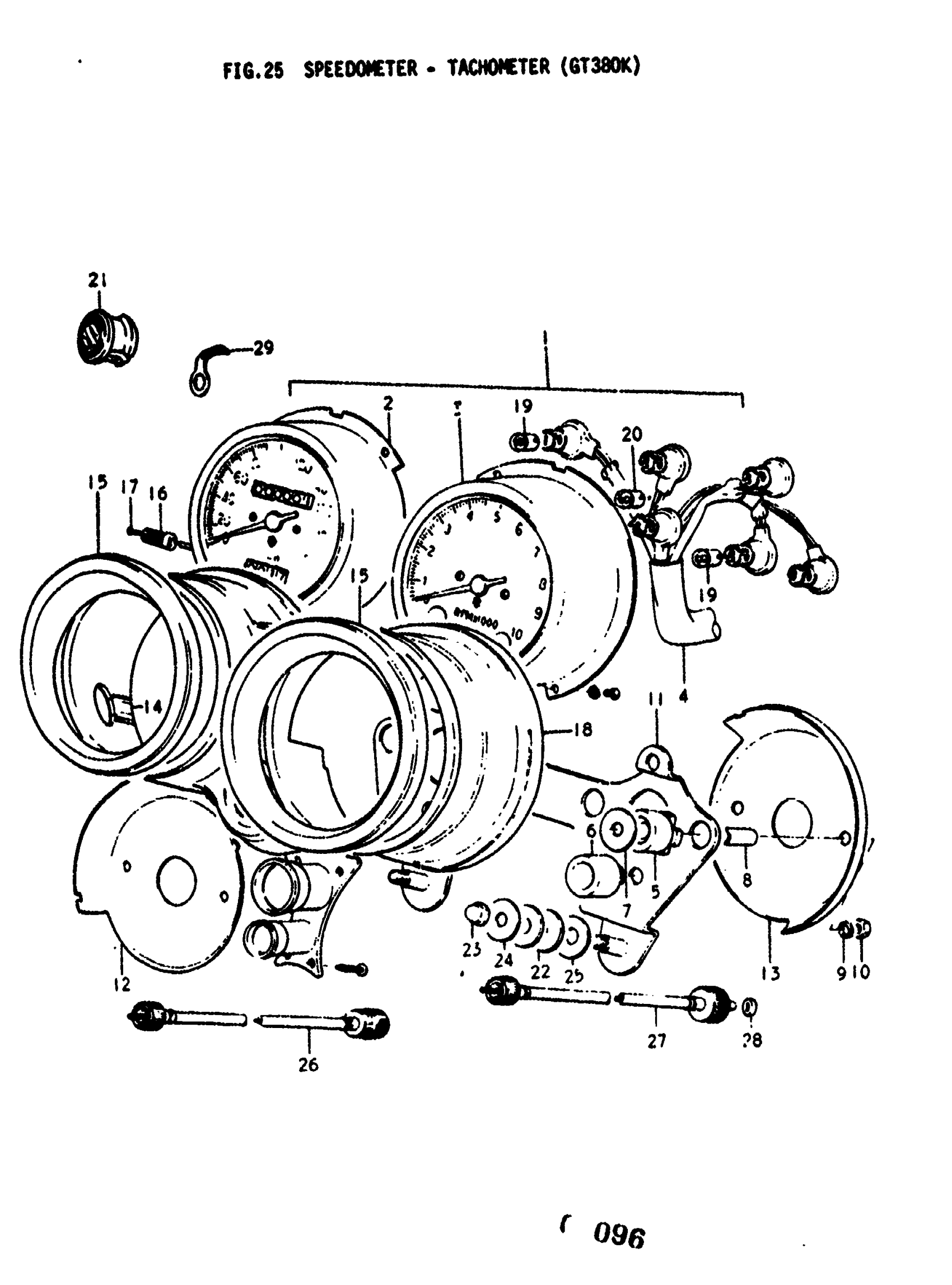

Suzuki GT380 (1977) SPEEDOMETER - TACHOMETER (GT380K) Diagram

#

Description
Price

1

SPEEDOMETER / TACHOMETER ASSY | FROM 34000-33611-999 TO 34100-33614; Includes Item(s) 2 - 20

34000-33611

Unavailable

2

NO DESCRIPTION AVAILABLE | MILE SCALE FROM 34100-33611-999 This part replaces 34100-33611.

34100-33761

Unavailable

3

NO DESCRIPTION AVAILABLE | FROM 34200-33601-999 This part replaces 34200-33601.

34200-33710

Unavailable

4

SOCKET, SPEEDOMETER & TACHOME

34170-33600

Unavailable

5

CUSHION (1)

34955-16420

$4.43

6

CUSHION (2)

34956-33600

Unavailable

7

WASHER This part replaces 34973-18620.

09160-06084

$1.78

8

SPACER

34972-16420

Unavailable

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

10

NUT This part replaces 08311-11058.

08310-00057

$1.84

11

BRACKET

34950-33600

Unavailable

12

PLATE, SPEEDOMETER UNDER | TO 34960-33602

34960-33601

Unavailable

13

PLATE, TACHOMETER UNDER | TO 34961-33602

34961-33601

Unavailable

14

CAP, TRIP METER KNOB

34192-33600

Unavailable

15

COVER, METER HOOD

34190-33601

Unavailable

16

KNOB, TRIP METER

34980-33600

Unavailable

17

SCREW (2X6) This part replaces 34981-33600.

09139-02003

$1.65

18

CASE, METER | TO 34051-33600

34051-33610

Unavailable

19

BULB | 12V, 3.4W

09471-12001

$1.65

20

BULB | 12V, 1.7W

09471-12004

$2.69

21

CAP, METER

34995-31600

Unavailable

22

CUSHION, METER BRACKET

34956-15100

$3.71

23

NUT, LICENSE HOLDER This part replaces 08313-11067.

08313-10067

$1.84

24

WASHER This part replaces 08322-21088.

08322-01087

$2.13

25

WASHER This part replaces 09160-06007.

09160-06084

$1.78

26

CABLE,SPEEDOMET | TO 34910-34031 This part replaces 34910-34030.

34910-18991

$31.50

27

CABLE,TACHOMETE | Includes Item(s) 28 This part replaces 34940-33030.

34940-33032

Unavailable

28

OIL SEAL This part replaces 34928-08430.

34943-11030

$3.11

29

CLAMP, METER CABLE

34991-18100

Unavailable
