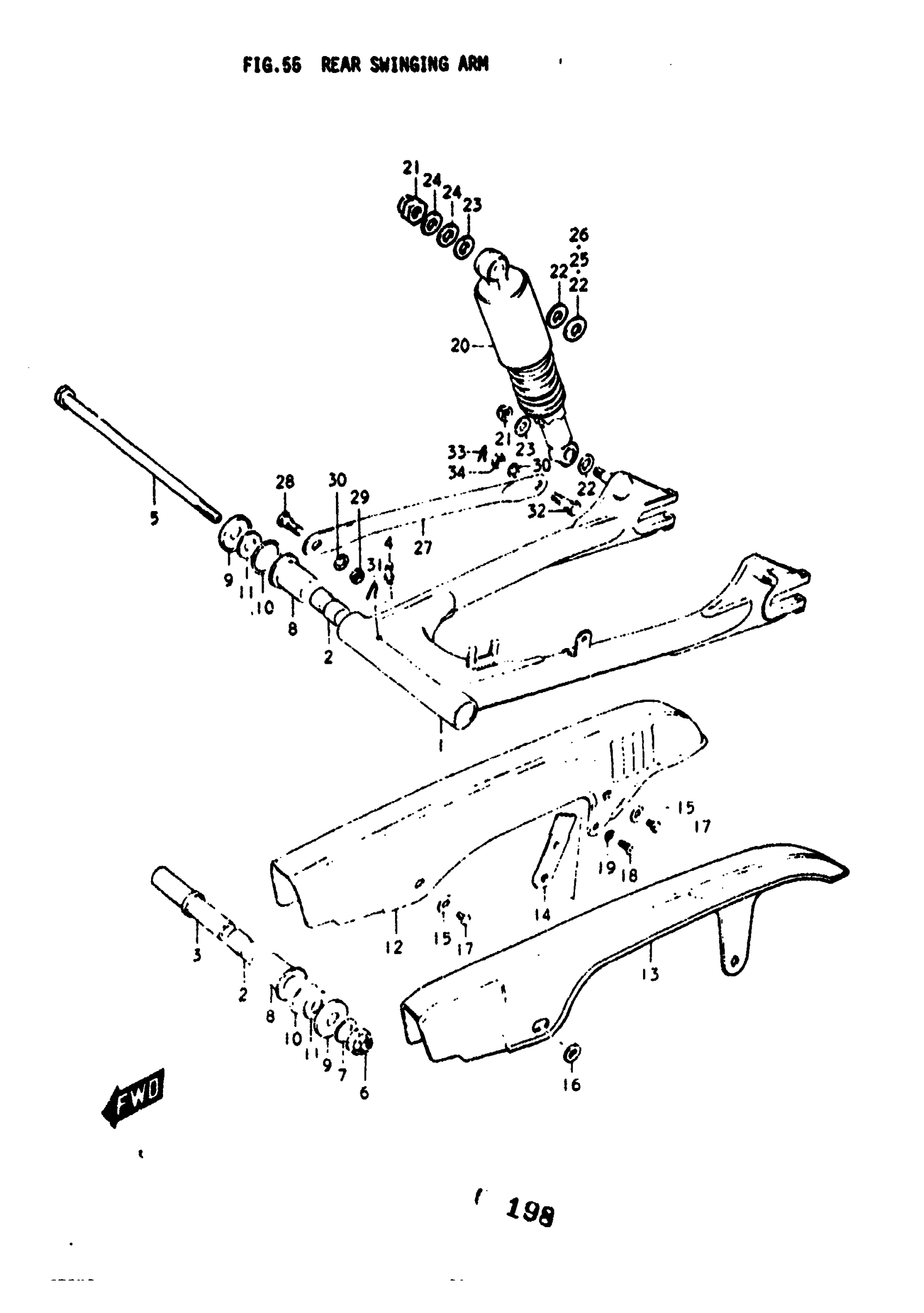

Suzuki GT380 (1977) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | K,L,M,A; TO 61100-33810-019 This part replaces 61101-33805-019.

61100-33811-019

Unavailable

1

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 2 - 4 This part replaces 61100-33810-019.

61100-33811-019

Unavailable

2

BUSHING | K,L,M,A,B

09307-22003

Unavailable

3

SPACER | K,L,M,A,B

61280-33000

Unavailable

4

NIPPLE, GREASE | K,L,M,A,B This part replaces 08351-31008.

08351-3100A

$4.45

5

SHAFT, PIVOT | K,L,M,A; TO 61211-33001 This part replaces 61211-33000.

61211-33002

Unavailable

5

SHAFT, PIVOT | B This part replaces 61211-33001.

61211-33002

Unavailable

6

NUT | K,L,M; TO 09159-14003 This part replaces 09159-14002.

09159-14003

Unavailable

6

NUT | A

09159-14003

Unavailable

6

NUT | B This part replaces 08319-11148.

08319-2114A

$3.96

7

WASHER | K,L,M,A,B This part replaces 08322-11148.

08322-01147

$1.91

8

SPACER | K,L,M,A; TO 61251-15001 USED WITH 09319-11148 This part replaces 61251-15000.

61251-15001

Unavailable

8

SPACER | B

61251-15001

Unavailable

9

COVER, DUST SEAL | K,L,M,A,B

61262-15000

$93.03

10

.O RING (D:3,ID:29.5) | K,L,M,A,B

09280-30001

$1.72

11

THRUST WASHER | K,L,M,A,B

09160-14009

$2.82

12

THRUST WASHER | K

61310-33900-019

Unavailable

13

CHAIN CASE | L,M; TO 61311-33600

61310-33100

Unavailable

13

CHAIN CASE | A,B

61310-33600

Unavailable

14

REINFORCEMENT, CHAIN CASE | K; FROM 61381-31001

61381-31002

Unavailable

15

WASHER | K

09169-06010

$2.60

16

WASHER | L,M,A,B This part replaces 09160-06007.

09160-06084

$1.78

17

BOLT | KL,M,A,B

09100-06011

$1.67

18

SCREW | K,L,M,A,B This part replaces 02122-06168.

02122-06167

$1.49

19

LOCK WASHER | K,L,M,A,B

08323-31068

Unavailable

20

ABSORBER ASSY, REAR SHOCK | K,L

62100-33010

Unavailable

20

ABSORBER ASSY, REAR SHOCK | M,A,B

62100-34031

Unavailable

21

NUT | K,L,M,A,B This part replaces 08313-11107.

08313-10107

$2.50

22

WASHER | K,A,BL,M This part replaces 08322-11128.

08322-01127

$1.84

23

WASHER, LOWER (10.5X24X2.3) | K,L,M,A,B; 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

$2.35

24

WASHER | L,M,A,B; 10.5x24x3.2 This part replaces 09160-10033.

09160-10128-XC0

$2.62

25

WASHER, FRONT AXLE | K,A,B; 12.5x24x3.2 This part replaces 09160-12012.

09160-12082

$3.29

26

WASHER | K,A,B; 12.5x24x1.6 This part replaces 09160-12004.

09160-12088

$2.00

27

NO DESCRIPTION AVAILABLE | K,L,M,A,B This part replaces 64311-31001.

64311-31001-13L

Unavailable

28

BOLT | K; TO 09111-10010 USED WITH 09385-10001

09119-10009

Unavailable

28

BOLT | L,M,A,B

09111-10010

Unavailable

29

NUT | K,L,M,A,B This part replaces 08312-32108.

08310-00107

$2.19

30

LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84

31

CLIP | K,L,M,A,B This part replaces 09385-10001.

09385-10005

$1.56

32

BOLT | K,L,M,A,B

09101-10003

Unavailable

33

NUT | K,L,M,A,B This part replaces 08311-11108.

08310-00107

$2.19

34

CLIP | K

09384-08001

Unavailable

34

CLIP | L,M,A,B This part replaces 09385-10001.

09385-10005

$1.56
