Partiron

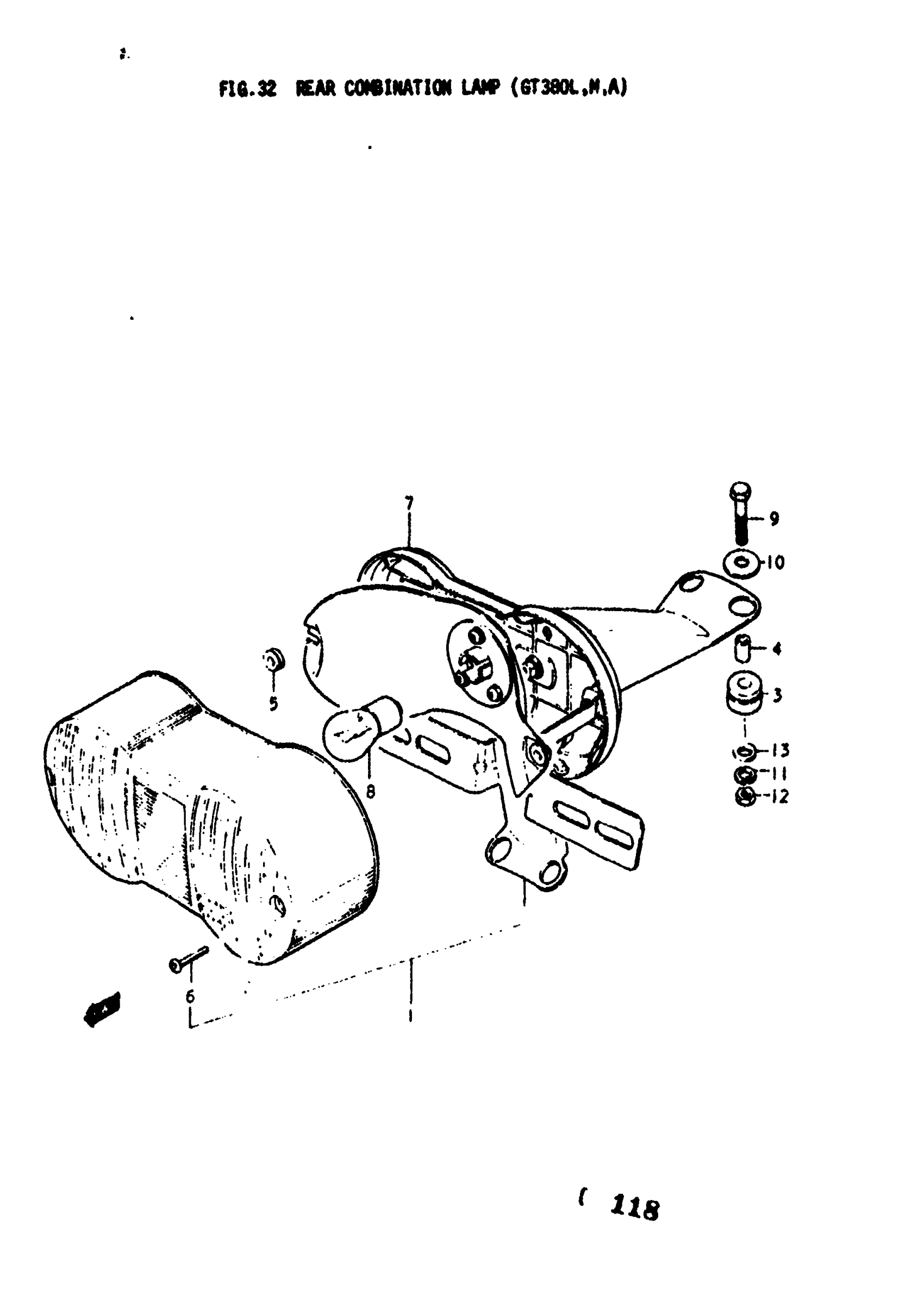

Suzuki GT380 (1977) REAR COMBINATION LAMP (GT380L Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | L,M,A; FROM 35710-33110-999; Includes Item(s) 2 - 8

35710-33111

Unavailable

2

TAIL LAMP LENS | L,M,A This part replaces 35712-27660.

35712-27671

Unavailable

3

CUSHION | L,M,A; 10x20x8.2

35765-15010

Unavailable

4

SPACER | L,M,A; 7x10x8 This part replaces 35766-15010.

35766-37110

$5.28

5

CUSHION | L,M,A; 4.5x12x6

35765-27691

Unavailable

6

SCREW | L,M,A This part replaces 02111-04208.

02112-0420A

$1.49

7

HOUSING | L,M,A

35715-27691

Unavailable

8

BULB | L,M,A; 12V, 23/8W

09471-12035

$4.49

9

BOLT | L,M This part replaces 01112-06208.

01500-06207

$2.28

9

BOLT, CANISTER | A This part replaces 01112-06168.

01500-06167

$1.97

10

WASHER (6.5X20X1.6) | L,M This part replaces 09160-06020.

09160-06066

$1.89

10

WASHER (6.5X20X1.2) | A This part replaces 09160-06027.

09160-06077

$1.91

11

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

$2.13

12

.NUT | L,M,A This part replaces 08311-11068.

08310-00067

$2.13

13

WASHER | L,M,A This part replaces 08322-21068.

08322-01067

$2.13
