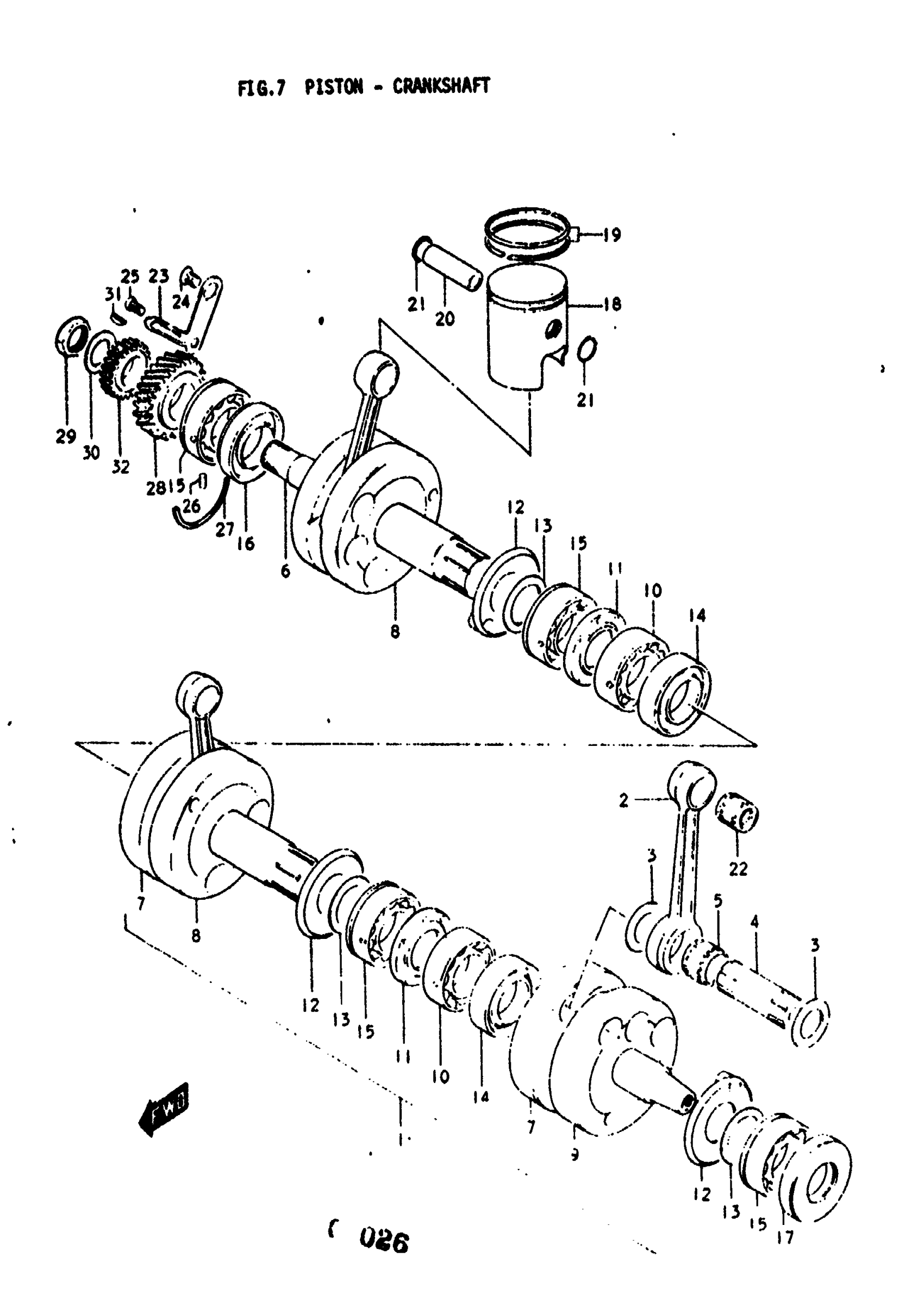

Suzuki GT380 (1977) PISTON - CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | K; TO 12200-33810

12000-33802

Unavailable

1

CRANKSHAFT ASSY | L; TO 12200-33811

12200-33810

Unavailable

1

CRANKSHAFT ASSY | M,A,B; FROM 12200-33811; Includes Item(s) 2 - 17

12200-33000

Unavailable

2

ROD CONNECTING | K,L,M,A,B This part replaces 12161-11000.

12161-11001

Unavailable

3

WASHER | K,L,M,B; 20x34x1 This part replaces 09160-20010.

09160-20052

$5.68

3

THRUST WASHER | A; 20x34x1

08211-20341

$2.80

4

PIN, CRANK | K,L,M,A,B

12211-58000

Unavailable

5

BEARING, CRANK PIN | A,B; TO 09263-20020 This part replaces 09263-20001.

09263-20020

$20.60

5

BEARING | A,B

09263-20020

$20.60

6

CRANKSHAFT, RH | K; TO 12221-33001

12221-33000

Unavailable

6

CRANKSHAFT, RH | L,M,A,B

12221-33001

Unavailable

7

WEB, CRANK | K,L,M,A,B

12222-33000

Unavailable

8

CRANKSHAFT, MIDDLE | K,L,M,A,B

12231-33000

Unavailable

9

CRANKSHAFT, LH | K,L,M,A,B

12261-33000

Unavailable

10

B1 25X52X15 BEA | K,L,M,A,B This part replaces 09262-25031.

09262-25077

Unavailable

11

SPACER, CRANKSHAFT | K,L,M,A; TO 12353-33011

12353-33010

Unavailable

11

SPACER, CRANKSHAFT | B

12353-33011

Unavailable

12

PLATE, CRANKSHAFT OIL GUIDE | K,L,M,A,B

12511-33000

Unavailable

13

SHIM (T:0.50) | K,L,M This part replaces 08221-25365.

09181-25186

$3.93

13

SHIM | A,B

08221-25345

Unavailable

14

OIL SEAL | K,L,M,A,B

09289-25005

Unavailable

15

BEARING | K; TO 09262-25030

09262-25032

Unavailable

15

BEARING | L,M,A,B

09262-25030

$47.97

16

OIL SEAL | K

09283-32005

Unavailable

16

OIL SEAL | L,M,A,B

09289-32002

Unavailable

17

OIL SEAL | K,L,M,A,B

09283-25047

Unavailable

18

PISTON | K,L,M; 12110-33004 This part replaces 12110-33002.

12110-33004

Unavailable

18

PISTON | A,B

12110-33004

Unavailable

18

PISTON SET | OPT K,L,M; TO 12110-33703 OS:0,5 This part replaces 12110-33701.

12103-33810-050

Unavailable

18

PISTON SET | A,B; TO 12110-33703 OS:0.5 OPT This part replaces 12110-33703.

12103-33810-050

Unavailable

18

PISTON SET | OPT K,L,M; TO 12110-33713 OS:1.0 This part replaces 12110-33711.

12103-33810-100

Unavailable

18

PISTON SET | A,B; TO 12110-33713 OS:1.0 OPT This part replaces 12110-33713.

12103-33810-100

Unavailable

19

RING SET, PISTON | K,L,M,A,B; FROM 12140-33011

12140-33012

Unavailable

19

RING SET, PISTON | K,L,M,A,B; OS:0.5 FROM 12140-33701OPT FROM 12140-33711

12140-33012-050

Unavailable

19

RING SET, PISTON | K,L,M,A,B; OS:1.0 FROM 12140-33701;FROM 12140-33711

12140-33012-100

Unavailable

20

PIN,PISTON | K,L,M,A,B This part replaces 12151-07000.

12151-23400-0A0

$8.67

21

RING | K,L,M,A,B

09381-14001

$1.49

22

ROLLR BRG,14X18 | K,L,M,A; TO 09263-14006 This part replaces 09263-14004.

09263-14022

$11.97

22

ROLLR BRG,14X18 | B This part replaces 09263-14006.

09263-14022

$11.97

23

PLATE, CRANKSHAFT SET | K,L,M,A,B; FROM 127:8-33000

12581-33000

Unavailable

24

SCREW | K,L,M,A,B This part replaces 02122-06128.

02122-06127

$1.84

25

SCREW | K,L,M,A,B This part replaces 02112-06108.

02112-06107

$1.49

26

PIN | K,L,M,A,B This part replaces 06211-04063.

04221-04069

$2.12

27

C RING | K,L,M,A,B

09390-52002

Unavailable

28

GEAR, PRIMARY DRIVE | K,L,M,A,B; NT:24

21111-33001

Unavailable

29

NUT | K,L,M,A,B

09140-18002

$3.87

30

WASHER | K,L,M,A,B

09166-18001

$2.71

31

KEY | K,L,M,A,B

08341-31059

$2.48

32

GEAR, BREAKER CAM DRIVE | K; SEE NOTE ~F.NO.24759. TO 12712-33012

12712-33010

Unavailable

32

GEAR, BREAKER CAM DRIVE | K,L,M; FROM 12712-33012 TO 12551-33000

12712-33000

Unavailable

32

GEAR, BREAKER CAM DRIVE | K,L,M; FROM 12712-33000 TO 12551-33001 This part replaces 12551-33000.

12551-33001

Unavailable

32

GEAR, BREAKER CAM DRIVE | A,B

12551-33001

Unavailable
