Partiron

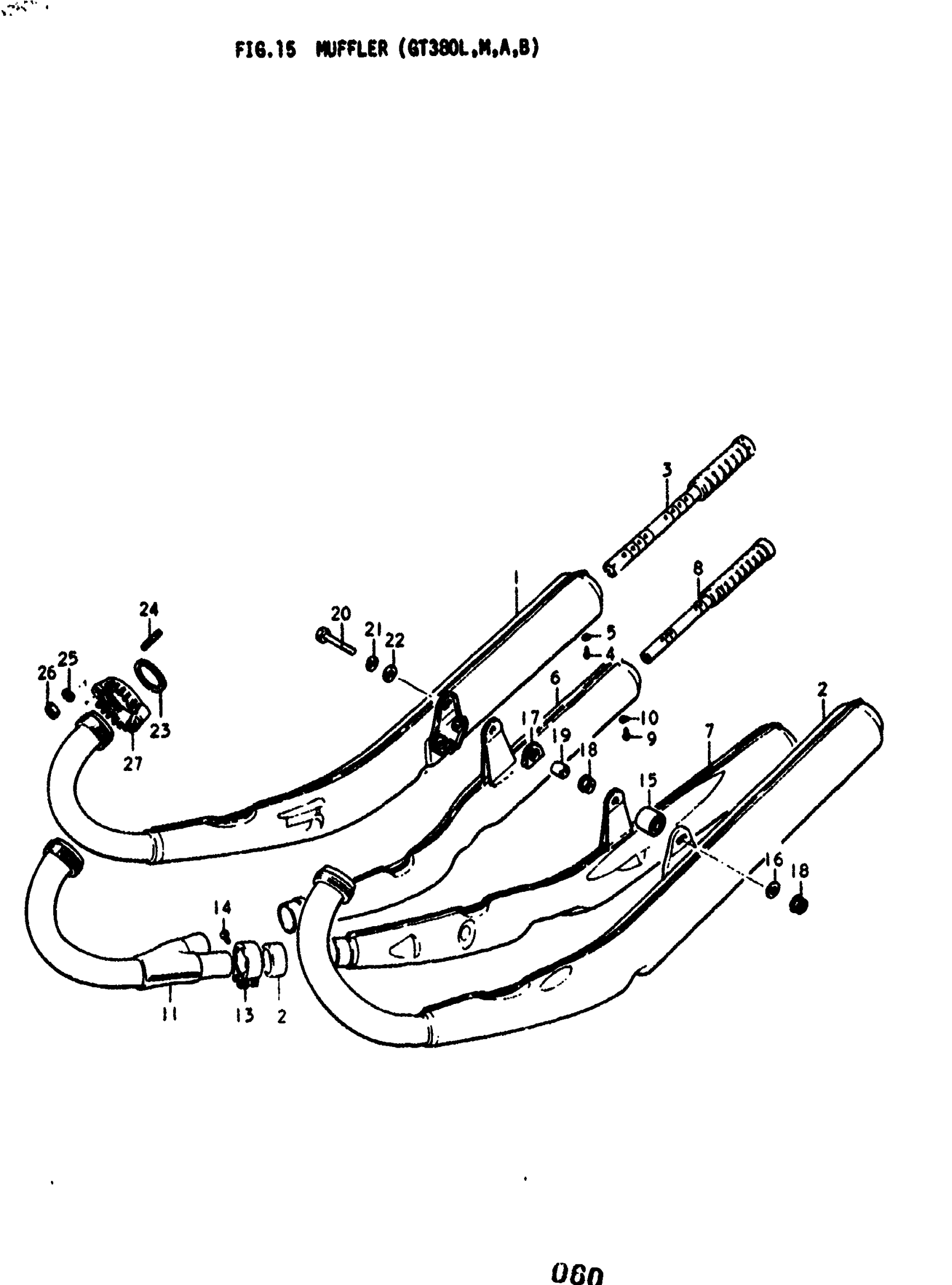

Suzuki GT380 (1977) MUFFLER (GT380L Diagram

#

Description
Price

1

MUFFLER ASSY, RH | L,M,A; TO 14301-33002

14301-33001

Unavailable

1

NO DESCRIPTION AVAILABLE | B This part replaces 14301-33002.

14301-33002-H01

Unavailable

2

MUFFLER ASSY, LH | L,M,A; TO 14302-33002

14302-33001

Unavailable

2

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 3 - 5 This part replaces 14302-33002.

14302-33002-H01

Unavailable

3

PIPE, BAFFLE | L,M,A,B

14510-18100

Unavailable

4

SCREW | L,M,A,B

09128-05004

Unavailable

5

LOCK WASHER | L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

6

NO DESCRIPTION AVAILABLE | L,M,A; TO 14303-33603 This part replaces 14303-33002.

14303-33603-H01

Unavailable

6

NO DESCRIPTION AVAILABLE | B This part replaces 14303-33603.

14303-33603-H01

Unavailable

7

NO DESCRIPTION AVAILABLE | L,M,A; TO 14304-33603 This part replaces 14304-33002.

14304-33603-H01

Unavailable

7

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 8 - 10 This part replaces 14304-33603.

14304-33603-H01

Unavailable

8

PIPE, BAFFLE | L,M,A,B

14510-36100

Unavailable

9

SCREW | L,M,A,B

09128-05004

Unavailable

10

LOCK WASHER | L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

11

PIPE, EXHAUST CENTER | L,M,A,B

14170-33001

Unavailable

12

CONNECTOR, MUFFLER | L,M,A,B

14771-06090

$10.14

13

CLAMP | L,M,A,B

09402-36708

Unavailable

14

SCREW | L,M,A,B This part replaces 02112-06208.

02112-06207

$1.78

15

BUSHING | L,M,A,B This part replaces 09319-10019.

09319-10009

$7.62

16

WASHER | L,M,A,B This part replaces 08322-21108.

08322-01107

$2.15

17

DAMPER, MUFFLER | L,M,A,B

14770-33000

Unavailable

18

NUT | L,M,A,B This part replaces 09159-10014.

09159-10046-XC0

$2.03

19

SPACER | L,M,A,B; 10.1x15x4.8

09180-10038

Unavailable

20

BOLT | L,M; TO 01122-10608

01221-10607

Unavailable

20

BOLT | A,B This part replaces 01122-10608.

01500-1060A

$4.41

21

LOCK WASHER | L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84

22

WASHER | L,M,A,B This part replaces 08322-11108.

08322-01107

$2.15

23

GASKET,EXHAUST | L,M,A,B This part replaces 14181-18010.

14181-36A00

$9.17

24

STUD BOLT (L:30) | L,M This part replaces 09108-08038.

09108-08142

$3.18

24

STUD BOLT | A,B

09108-08047

Unavailable

25

.LOCK WASHER | L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

26

NUT | L,M,A,B This part replaces 08312-11088.

08310-00087

$2.13

27

CLAMP, EXHAUST PIPE | L,M,A,B

14182-33000

Unavailable
