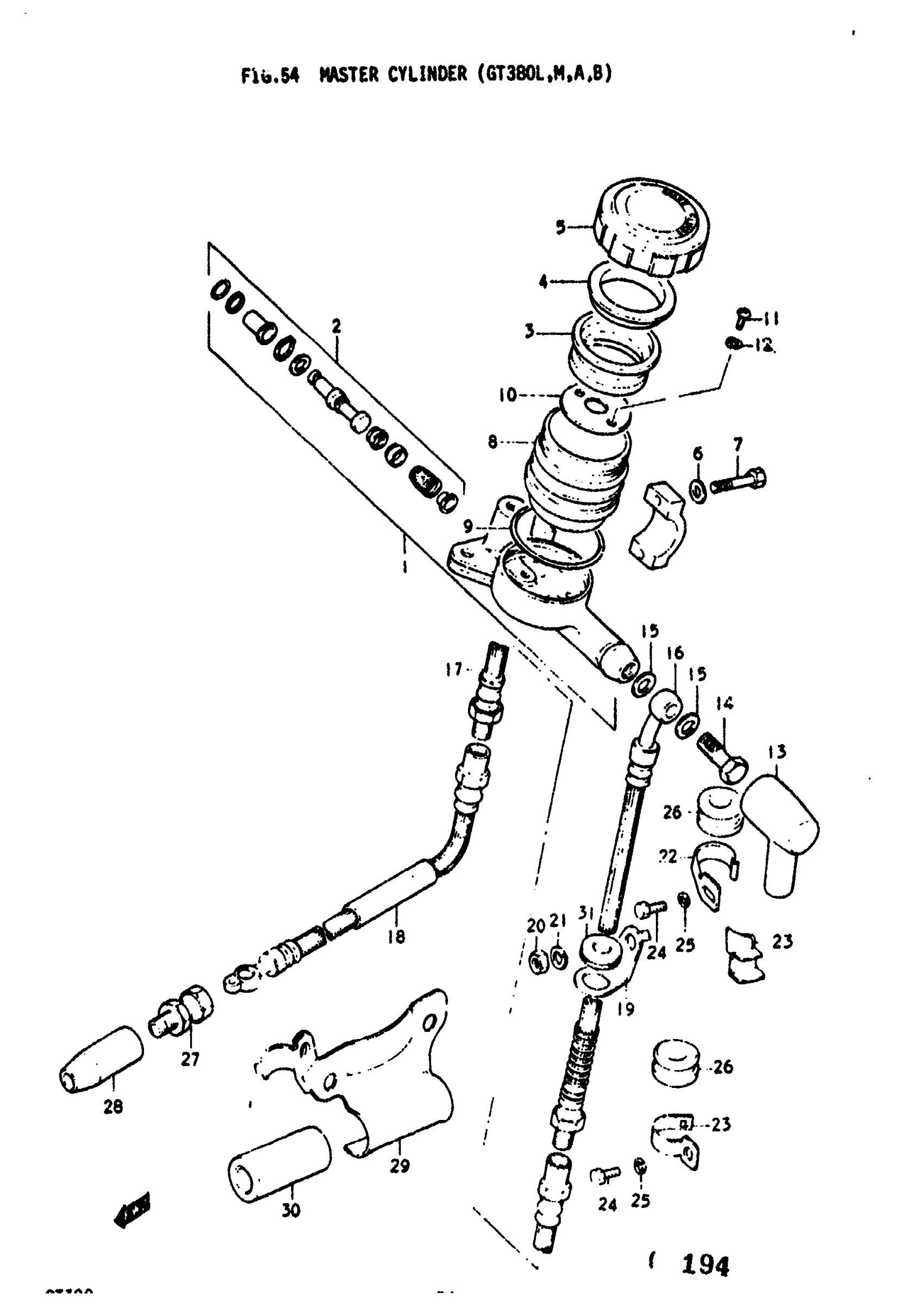

Suzuki GT380 (1977) MASTER CYLINDER (GT380L Diagram

#

Description
Price

1

CYLINDER ASSY, MASTER | L; TO 59600-33612

59600-33610

Unavailable

1

NO DESCRIPTION AVAILABLE | M,A,B; Includes Item(s) 2 - 11 This part replaces 59600-33612.

59600-336V1

Unavailable

2

PISTON / CUP SET | L,M,A,B This part replaces 59600-18824.

59600-45821

Unavailable

2

PISTON CUP SET | A,B This part replaces 59600-33810.

59600-33811

Unavailable

3

DIAPHRAGM | L,M,A,B This part replaces 59667-18440.

59667-18441

$10.28

3

DIAPHRAGH | A,B

59667-33620

Unavailable

4

PLATE | L,M,A,B; NISSIN

59668-18441

$4.52

4

PLATE | A,B; ASCO

59668-33620

Unavailable

5

CAP | L; TO 59669-18603

59669-18600

Unavailable

5

CAP | M; TO 59669-33601 This part replaces 59669-33600.

59669-07D00

$31.72

5

CAP | M; TO 59669-33602

59669-33601

Unavailable

5

CAP | A; TO 59669-18604

59669-18603

Unavailable

5

CAP | B This part replaces 59669-18604.

59669-07D00

$31.72

5

CAP | A,B

59669-33630

Unavailable

6

WASHER | L,M,A,B This part replaces 08322-21068.

08322-01067

$2.13

7

BOLT | L,M,A,B This part replaces 01112-06258.

01500-06257

$1.97

8

RESERVIOR | L,M,A,B; FROM 59687-33602 This part replaces 59687-33603.

59687-45000

Unavailable

8

RESERVOIR | A,B This part replaces 59687-33621.

59687-47021

Unavailable

9

O RING | L,M,A,B

59686-33600

Unavailable

9

O RING | A,B

59686-33620

Unavailable

10

PLATE, RESERVOIR | L,M,A,B This part replaces 59685-33600.

59685-33601

Unavailable

11

SCREW | L,M,A,B This part replaces 09125-03105.

09125-03105-XC0

$2.23

11

SCREW | A,B; Includes Item(s) 12

59688-33620

Unavailable

12

LOCK WASHER | L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

13

BOOT, MASTER CYLINDER | L,M,A,B This part replaces 59711-18400.

59711-49001

$7.51

13

BOOT, MASTER CYLINDER | L; OPT

59711-33600

Unavailable

14

UNION | L,M,A,B This part replaces 09360-10003.

09360-10017

$3.42

15

WASHER (10X15X1.5) | L,M,A,B This part replaces 09161-10005.

09161-10009

$1.84

16

NO DESCRIPTION AVAILABLE | L,M; TO 59480-34012 This part replaces 59480-34011.

59480-34013

Unavailable

16

NO DESCRIPTION AVAILABLE | A,B This part replaces 59480-34012.

59480-34013

Unavailable

17

HOSE, BRAKE (2) | L; TO 59240-34010

59240-33010

Unavailable

17

NO DESCRIPTION AVAILABLE | M; TO 59240-34011 This part replaces 59240-34010.

59240-34012

Unavailable

17

NO DESCRIPTION AVAILABLE | A,B; STAMPED DOT NCRN This part replaces 59240-34011.

59240-34012

Unavailable

18

HOSE, BRAKE (3) | L; TO 59520-31011

59520-31010

Unavailable

18

BRAKE HOSE 3 | M; TO 59520-31012 This part replaces 59520-31011.

59520-31013

Unavailable

18

BRAKE HOSE 3 | A,B; STAMPED DOT NCRN This part replaces 59520-31012.

59520-31013

Unavailable

19

GUISE, BRAKE HOSE | L,M,A,B

59243-18401

Unavailable

20

NUT | L,M,A,B This part replaces 08312-32108.

08310-00107

$2.19

21

LOCK WASHER | L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84

22

CLAMP, BRAKE HOSE (1) | L,M,A,B; FROM 51266-33100

51266-18400

Unavailable

23

CLAMP, BRAKE HOSE (2) | L,M,A,B

59268-33100

Unavailable

24

FRM CVR,SCREW(6 | L,M,A,B This part replaces 09128-06011.

09128-06092

$1.92

25

LOCK WASHER | L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

26

BUSHING | L,M,A,B

09305-14003

Unavailable

27

ADAPTER, BRAKE HOSE | L,M,A,B

59290-33110

Unavailable

28

BOOT, BRAKE HOSE ADAPTER | L,M,A,B

59265-33100

Unavailable

29

COVER, BRAKE HOSE | L,M; TO 59280-33101

59280-33100

Unavailable

29

COVER, BRAKE HOSE | A,B

59280-33101

Unavailable

30

CUSHION | L,M,A,B; 14.5x24x40

09320-14003

Unavailable

31

GROMMET | L,M,A,B This part replaces 09308-14007.

09308-14009

Unavailable
