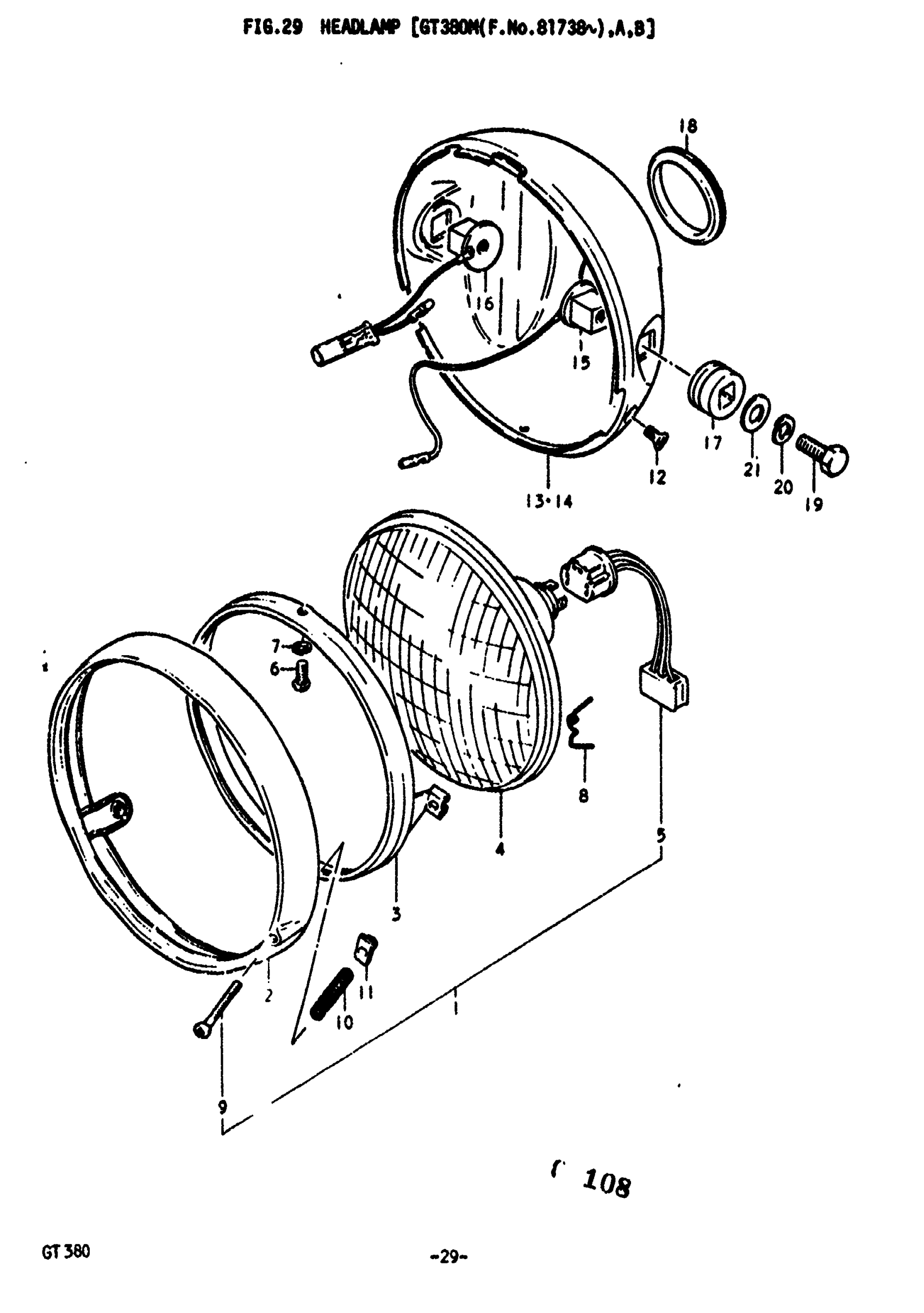

Suzuki GT380 (1977) HEADLAMP [GT380M(F.NO.81738-) Diagram

#

Description
Price

1

HEADLAMP ASSY | M,A,B; F.NO.81738~#; Includes Item(s) 2 - 11

35100-33630

Unavailable

2

RIM | M,A,B

35111-33630

Unavailable

3

P.MC | M,A,B

35127-33630

Unavailable

4

UNIT | M,A,B; 12V, 40/30W

35121-33630

Unavailable

5

LEAD WIRE, HEADLAMP | M,A,B This part replaces 36852-33630.

36853-30500

$11.63

6

SCREW | M,A,B This part replaces 35136-33630.

35136-29610

Unavailable

7

LOCK WASHER | M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

8

SPRING | M,A,B

35172-33630

Unavailable

9

SCREW | M,A,B

35151-33630

Unavailable

10

SPRING | M,A,B

35154-33630

Unavailable

11

NUT | M,A,B

35152-15611

$3.25

12

SCREW | A,B This part replaces 02231-05128.

02122-05127

$1.93

13

HOUSING, HEADLAMP | A; CHROME-PLATED

51810-33600

Unavailable

14

HOUSING, HEADLAMP | B

51810-27600-291

Unavailable

15

SPACER | A,B

51821-27301

Unavailable

16

SPACER | A,B

51822-27301

Unavailable

17

CUSHION,HEADLAM | A,B This part replaces 51827-27301.

51827-27303

$3.66

18

GROMMET | A,B; FROM 51845-31030

51845-31031

$4.52

19

BOLT | A,B This part replaces 01221-08207.

01204-08207

$2.30

20

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

21

WASHER | A,B This part replaces 08322-11088.

08322-01087

$2.13
