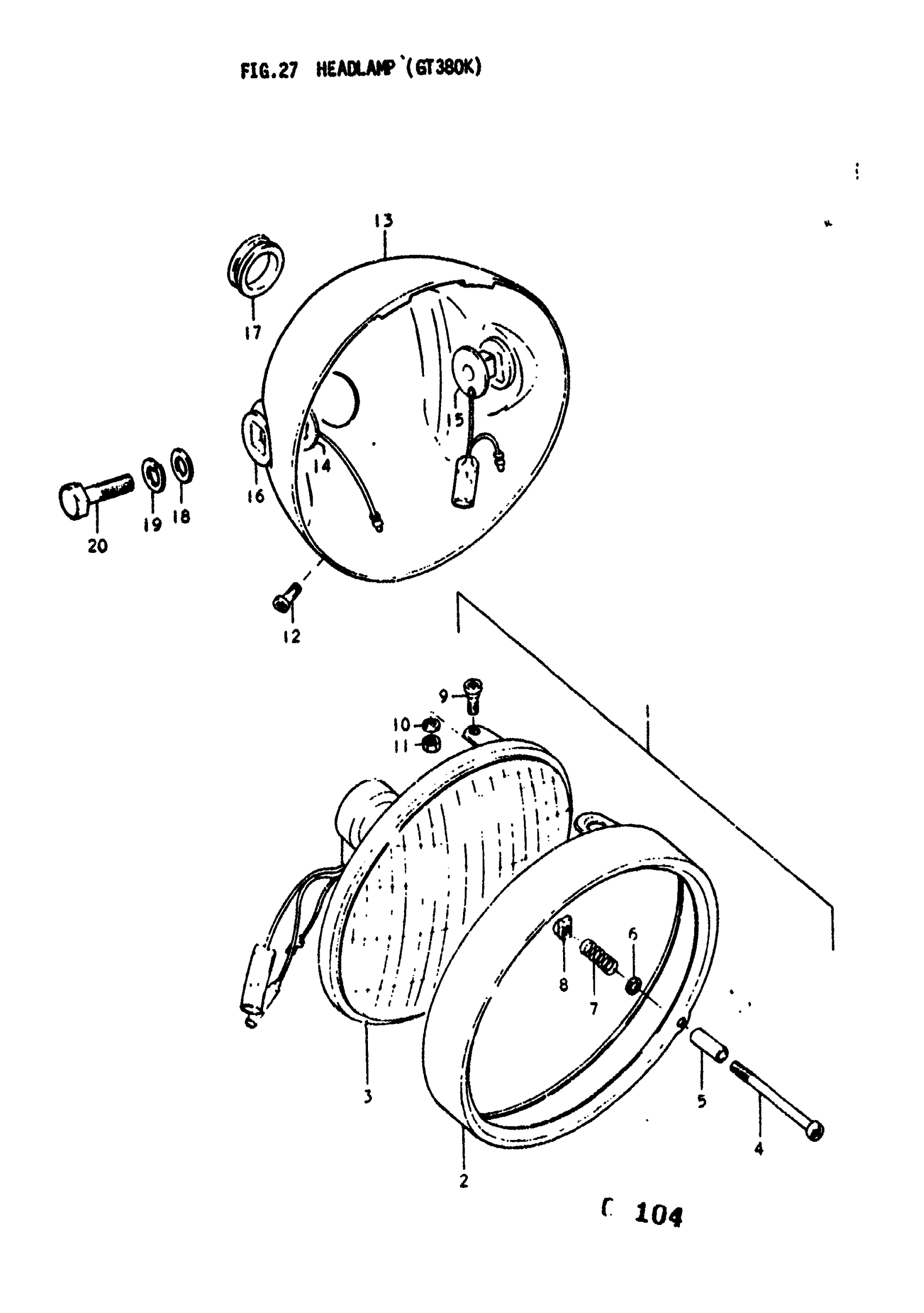

Suzuki GT380 (1977) HEADLAMP (GT380K) Diagram

#

Description
Price

1

HEADLAMP ASSY | TO 35100-36160 WITH 36852-15670...1PC; Includes Item(s) 2 - 11

35100-33612

Unavailable

2

RIM

35111-33611

Unavailable

3

UNIT | TO 35121-36160 This part replaces 35121-33612.

35121-36160

Unavailable

4

SCREW This part replaces 35151-33611.

35151-45900

$3.65

5

SPACER

35165-31610

Unavailable

6

WASHER This part replaces 08322-21048.

08322-01047

$1.86

7

SPRING

35154-33611

Unavailable

8

NUT

35152-15611

$3.25

9

SCREW

35181-15611

$3.37

10

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

11

NUT This part replaces 08311-11048.

08310-00047

$2.23

12

SCREW This part replaces 02231-05128.

02122-05127

$1.93

13

NO DESCRIPTION AVAILABLE This part replaces 51810-27300-279.

51810-27300-737

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 51810-27300-716.

51810-27300-737

Unavailable

14

SPACER, RH | TO 51821-27301

51821-27300

Unavailable

15

SPACER, LH | TO 51822-27301

51822-27300

Unavailable

16

CUSHION | TO 51827-27301

51827-27300

Unavailable

17

GROMMET | FROM 51845-31030

51845-31031

$4.52

18

WASHER This part replaces 08322-11088.

08322-01087

$2.13

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

BOLT This part replaces 01221-08207.

01204-08207

$2.30
