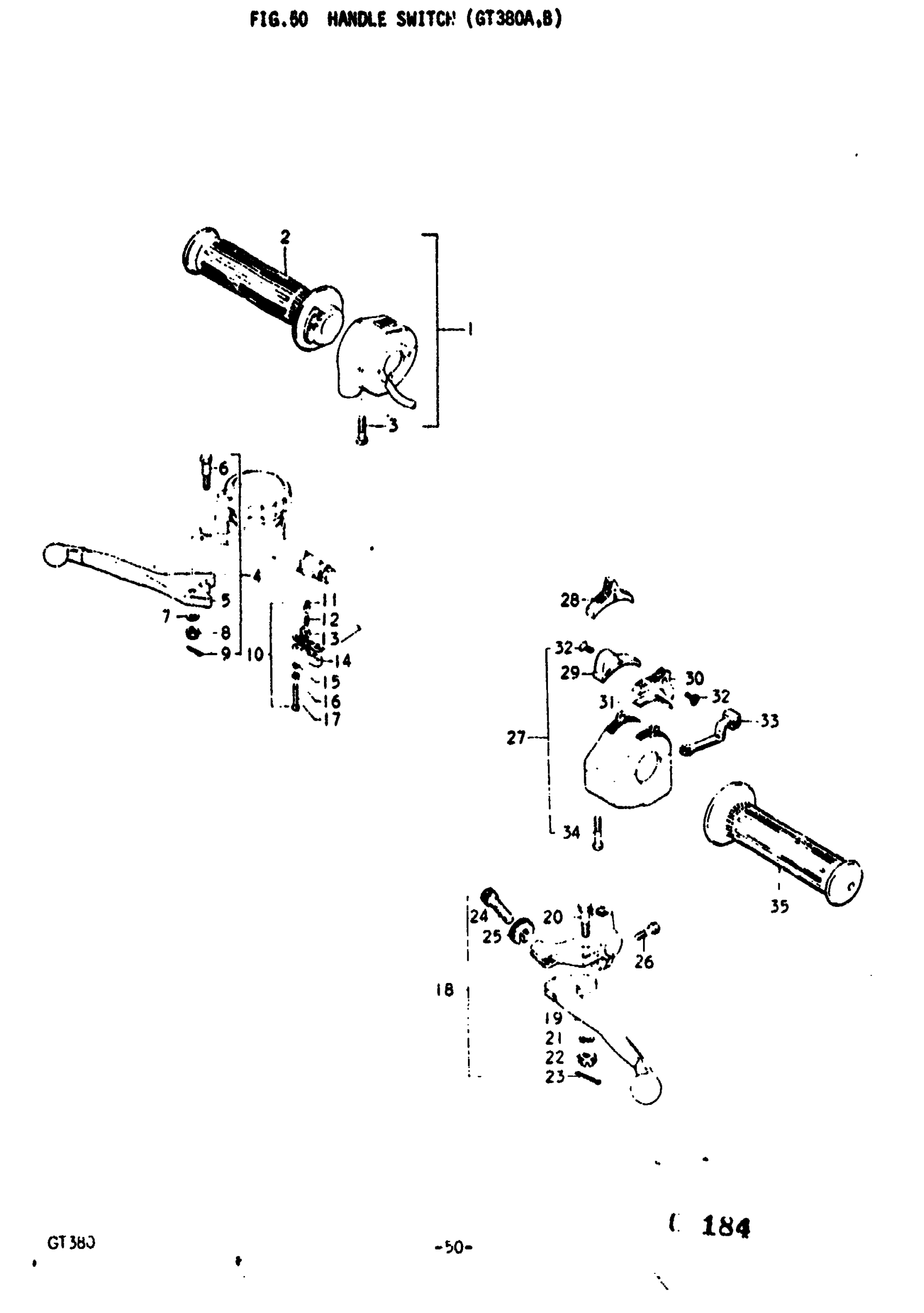

Suzuki GT380 (1977) HANDLE SWITCH (GT380M Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 2 - 3 This part replaces 57100-33600.

57100-33601

Unavailable

2

THROTTLE GRIP | A,B This part replaces 57110-34600.

57110-34601

Unavailable

3

SCREW | A,B This part replaces 02111-05257.

02112-05257

$1.49

4

LEVER ASSY, BRAKE | A,B; Includes Item(s) 5 - 9 This part replaces 57300-18621.

57300-45010

Unavailable

5

LEVER, BRAKE | A,B This part replaces 57420-18620.

57420-45010

Unavailable

6

BOLT | A,B This part replaces 57431-18620.

57431-18621

$8.28

7

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$2.13

8

NUT, LEVER PIVOT | A,B

57433-11010

$5.64

9

PIN | A,B This part replaces 04111-16158.

04111-1620A

$1.49

10

SWITCH ASSY, STOP | A,B; Includes Item(s) 11 - 17

57460-33700

$43.37

11

HOLDER | A,B This part replaces 57461-18600.

57465-18601

$4.34

12

HOLDER | A,B This part replaces 57462-18600.

57465-18601

$4.34

13

HOLDER | A,B This part replaces 57463-18600.

57465-18601

$4.34

14

COVER | A,B

57481-33010

$5.84

15

WASHER | A,B This part replaces 08322-21038.

08322-01037

$1.93

16

WASHER,LOCK | A,B This part replaces 08321-21038.

09162-03001

$1.49

17

SCREW | A,B This part replaces 09125-03105.

09125-03105-XC0

$2.23

18

LEVER ASSY, CLUTCH | A,B; Includes Item(s) 19 - 26 This part replaces 57500-18601.

57500-45010

Unavailable

19

LEVER, CLUTCH | A,B This part replaces 57620-31010.

57620-45010

Unavailable

20

BOLT | A,B This part replaces 57431-11010.

57431-11013

$6.31

21

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$2.13

22

NUT, LEVER PIVOT | A,B

57433-11010

$5.64

23

PIN | A,B This part replaces 04111-16158.

04111-1620A

$1.49

24

ADJUSTER, CABLE | A,B

57441-11010

$5.62

25

NUT, CABLE ADJUSTER | A,B

57442-11010

$2.79

26

BOLT | A,B This part replaces 01112-06208.

01500-06207

$2.28

27

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 28 - 34

57700-31622

Unavailable

28

KNOB,HANDLE SWI | A,B; OPT This part replaces 57712-33011.

57712-33012

$6.17

29

KNOB, LIGHTING STOP | A,B

57718-36630

Unavailable

30

KNOB, LIGHTING | A,B This part replaces 57713-33010.

57713-33011

$5.24

31

PLATE, SWITCH KNOB | A,B

57714-33010

$3.25

32

SCREW | A,B This part replaces 02121-03068.

02122-03067

$1.80

33

KNOB, TURN SIGNAL | A,B

67650-33013

Unavailable

34

SCREW | A,B This part replaces 02111-05207.

02112-05207

$1.97

35

GRIP, LH | A,B

57211-28600

$16.32
