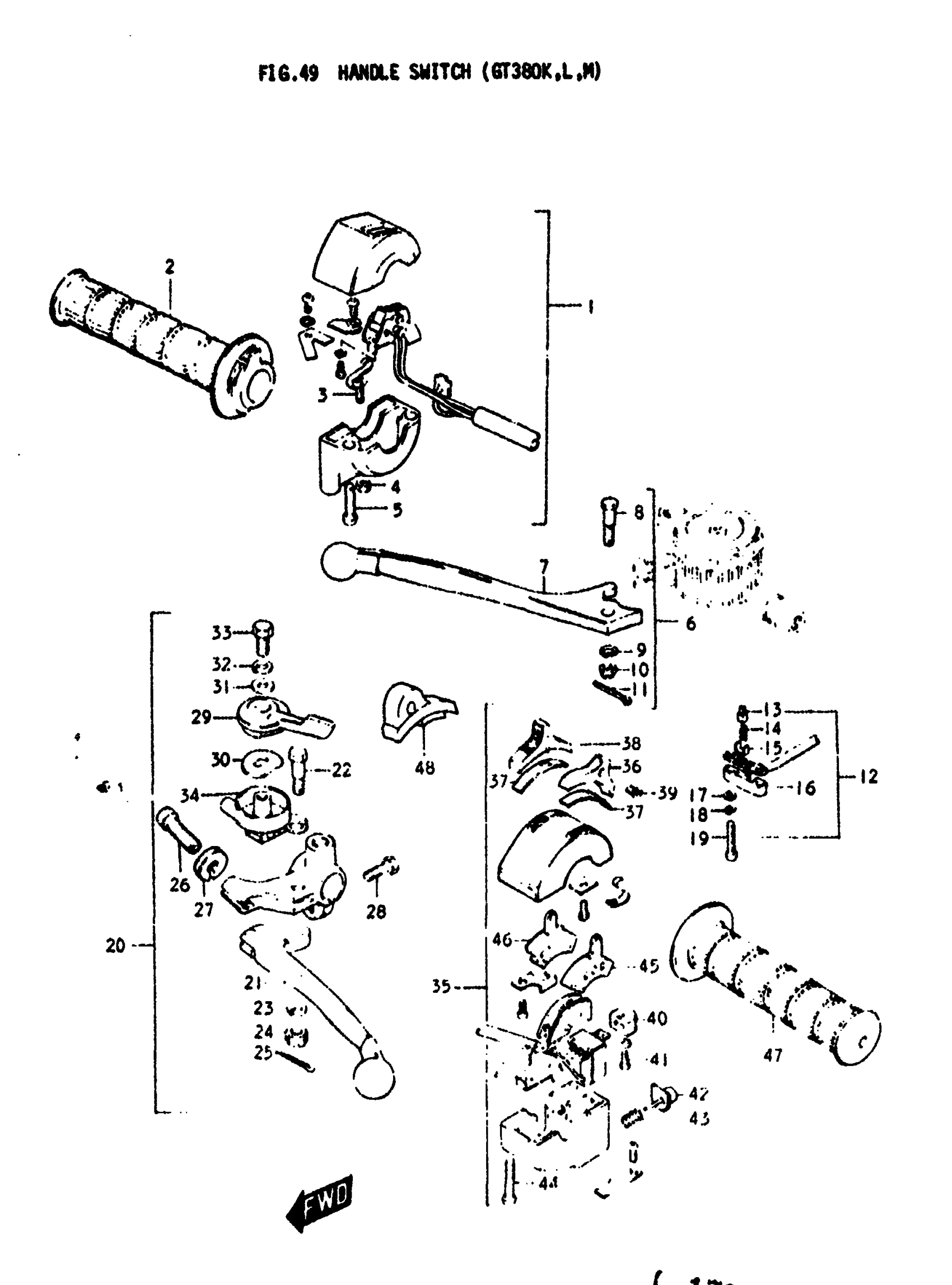

Suzuki GT380 (1977) HANDLE SWITCH (GT380K Diagram

GRIP ASSY, THROTTLE | K

57100-33011

Unavailable

GRIP ASSY, THROTTLE | L; TO 57100-33013

57100-33012

Unavailable

GRIP ASSY, THROTTLE | M; Includes Item(s) 2 - 5

57100-33013

Unavailable

GRIP, THROTTLE | K; TO 57110-33012 This part replaces 57110-33010.

57110-33012

Unavailable

GRIP, THROTTLE | L,M

57110-33012

Unavailable

ADJUSTER | K

57170-11011

Unavailable

NUT | K This part replaces 08311-11058.

08310-00057

$1.89

SCREW | K,L,M This part replaces 02111-05257.

02112-05257

$1.55

LEVER ASSY, BRAKE | K,L; TO 57300-18621

57300-18620

Unavailable

LEVER ASSY, BRAKE | M; Includes Item(s) 7 - 11 This part replaces 57300-18621.

57300-45010

Unavailable

LEVER, BRAKE | K,L,M This part replaces 57420-18620.

57420-45010

Unavailable

BOLT | K,L,M This part replaces 57431-18620.

57431-18621

$9.35

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$1.89

NUT, LEVER PIVOT | K,L,M

57433-11010

$5.56

PIN | K,L,M This part replaces 04111-16158.

04111-1620A

$0.96

SWITCH ASSY, STOP | K; TO 57460-33010

57460-18600

Unavailable

SWITCH ASSY, STOP | L; TO 57460-33700

57460-33011

Unavailable

SWITCH ASSY, STOP | M; Includes Item(s) 13 - 19

57460-33700

$42.67

HOLDER | K,L,M This part replaces 57461-18600.

57465-18601

$4.15

HOLDER | K,L,M This part replaces 57462-18600.

57465-18601

$4.15

HOLDER | K,L,M This part replaces 57463-18600.

57465-18601

$4.15

COVER | K; TO 57481-33010 This part replaces 57481-18600.

57481-33010

$5.74

COVER | L,M

57481-33010

$5.74

WASHER | K,L,M This part replaces 08322-21038.

08322-01037

$2.01

WASHER,LOCK | K,L,M This part replaces 08321-21038.

09162-03001

$1.22

SCREW | K,L,M This part replaces 09125-03105.

09125-03105-XC0

$2.08

NO DESCRIPTION AVAILABLE | K; TO 57500-31601 USED WITH 56741-31700 This part replaces 57500-31600.

57500-31601

Unavailable

LEVER ASSY, CLUTCH | L; TO 57500-18601

57500-18600

Unavailable

LEVER ASSY, CLUTCH | M; Includes Item(s) 21 - 34 This part replaces 57500-18601.

57500-45010

Unavailable

LEVER, CLUTCH | K,L,M This part replaces 57620-31010.

57620-45010

Unavailable

BOLT, LEVER PIVOT | K

57431-31010

$10.52

BOLT | L,M This part replaces 57431-11010.

57431-11013

$6.21

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$1.89

NUT, LEVER PIVOT | K,L,M

57433-11010

$5.56

PIN | K,L,M This part replaces 04111-16158.

04111-1620A

$0.96

ADJUSTER, CABLE | K,L,M

57441-11010

$5.38

NUT, CABFE ADJUSTER | K,L,M

57442-11010

$2.80

BOLT | K,L,M; FROM 57451-11010 This part replaces 01112-06208.

01500-06207

$2.06

LEVER, STARTER | K

58721-03010

Unavailable

WASHER, LEVER ADJUSTER | K

58722-03010

$3.66

.WASHER (6.5X16X1) | K This part replaces 58723-03010.

09160-06129

$2.50

LOCK WASHER | K This part replaces 08321-21068.

08321-01067

$1.89

BOLT | K This part replaces 01112-06128.

01500-06127

$2.01

BODY, STARTER LEVER | K This part replaces 58710-31010.

58710-31600

Unavailable

BODY, STARTER LEVER | K

58710-31600

Unavailable

SWITCH ASSY, HANDLE | K; TO 57700-33011

57700-33010

Unavailable

SWITCH ASSY, HANDLE | L

57700-33011

Unavailable

NO DESCRIPTION AVAILABLE | M; TO 57700-31622; Includes Item(s) 36 - 45 This part replaces 57700-31603.

57700-31622

Unavailable

KNOB, UPPER | K,L,M; TO 57712-33011

57712-33010

Unavailable

PLATE, UPPER KNOB | K,L,M

57714-33010

$2.80

KNOB, LIGHTING | K,L,M This part replaces 57713-33010.

57713-33011

$5.16

SCREW | K,L,M This part replaces 02121-03068.

02122-03067

$1.88

KNOB, LOWER | K,L,M

57742-33010

Unavailable

SCREW | K,L,M This part replaces 02121-03068.

02122-03067

$1.88

BUTTON, HORN | K,L,M

57850-31010

Unavailable

SPRING, HORN BUTTON | K,L,M

57761-26010

Unavailable

SCREW | K,L,M This part replaces 02111-05207.

02112-05207

$2.03

BLOCK, DIMMER SWITCH | K,L,M

57353-33010

Unavailable

GRIP, LH | K,L,M

57211-33010

Unavailable

KNOB, STOP | M; OPT

57718-36630

Unavailable
