1977 Suzuki GT380 Alternator Diagram

← All diagrams

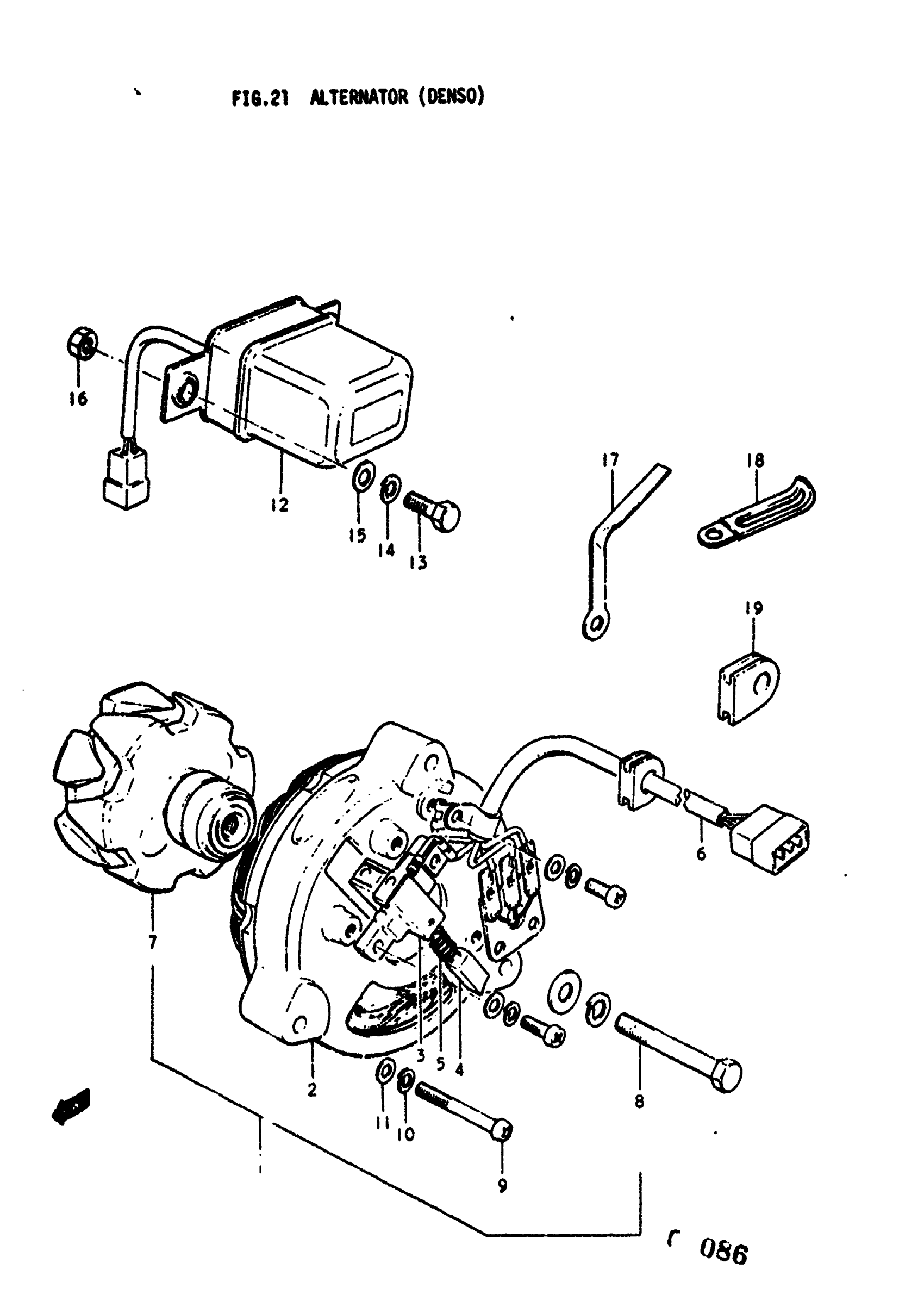

Find the part on the Alternator diagram for your 1977 Suzuki GT380, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT380 Alternator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | K; TO 31400-33012 This part replaces 31400-33011.

31400-33012

—
Out of stock

1

ALTERNATOR ASSY | L,M,A; TO 31400-33111

31400-33110

—
Out of stock

1

ALTERNATOR ASSY | B; Includes Item(s) 2 - 11

31400-33111

1
Out of stock

2

STATOR ASSY | K,L,M,A; TO 31401-33013 This part replaces 31401-33012.

31401-33013

1
Out of stock

2

STATOR ASSY | B

31401-33013

1
Out of stock

3

HOLDER, BRUSH | K,L,M,A; TO 31656-33012 This part replaces 31656-33011.

31656-33012

1
Out of stock

3

HOLDER, BRUSH | B

31656-33012

1
Out of stock

4

BRUSH | K; TO 31631-31011

31631-31010

—
Out of stock

4

BRUSH | L,M,A,B

31631-31011

2
Out of stock

5

SPRING | K,L,M,A; TO 31635-55012 This part replaces 31635-55011.

31635-55012

2
Out of stock

5

SPRING, BRUSH | B

31635-55012

2
Out of stock

6

LEAD WIRE | K,L,M

31480-33010

1
Out of stock

7

ROTOR ASSY | K,L,M,A,B

31402-33012

1
Out of stock

8

BOLT | K,L,M,A,B This part replaces 01122-08658.

01500-0865B

1
Out of stock

9

SCREW | K,L,M,A,B This part replaces 02111-05458.

02112-05457

3
Out of stock

10

LOCK WASHER | K,L,M,A,B This part replaces 08321-21058.

08321-0105A

3
Out of stock

11

3

$2.33

In stock

12

REGULATOR, VOLTAGE | K,L,M,A,B

32500-31010

1
Out of stock

12

REGULATOR, VOLTAGE | K,L,M,A,B

32500-33020

1
Out of stock

15

2

$1.84

In stock

16

2

$1.82

In stock

17

CLAMP | K,L,M,A,B

09404-05501

—
Out of stock

18

1

$3.13

In stock

19

1

$2.58

In stock
