1977 Suzuki GT380 Gear Shifting Diagram

← All diagrams

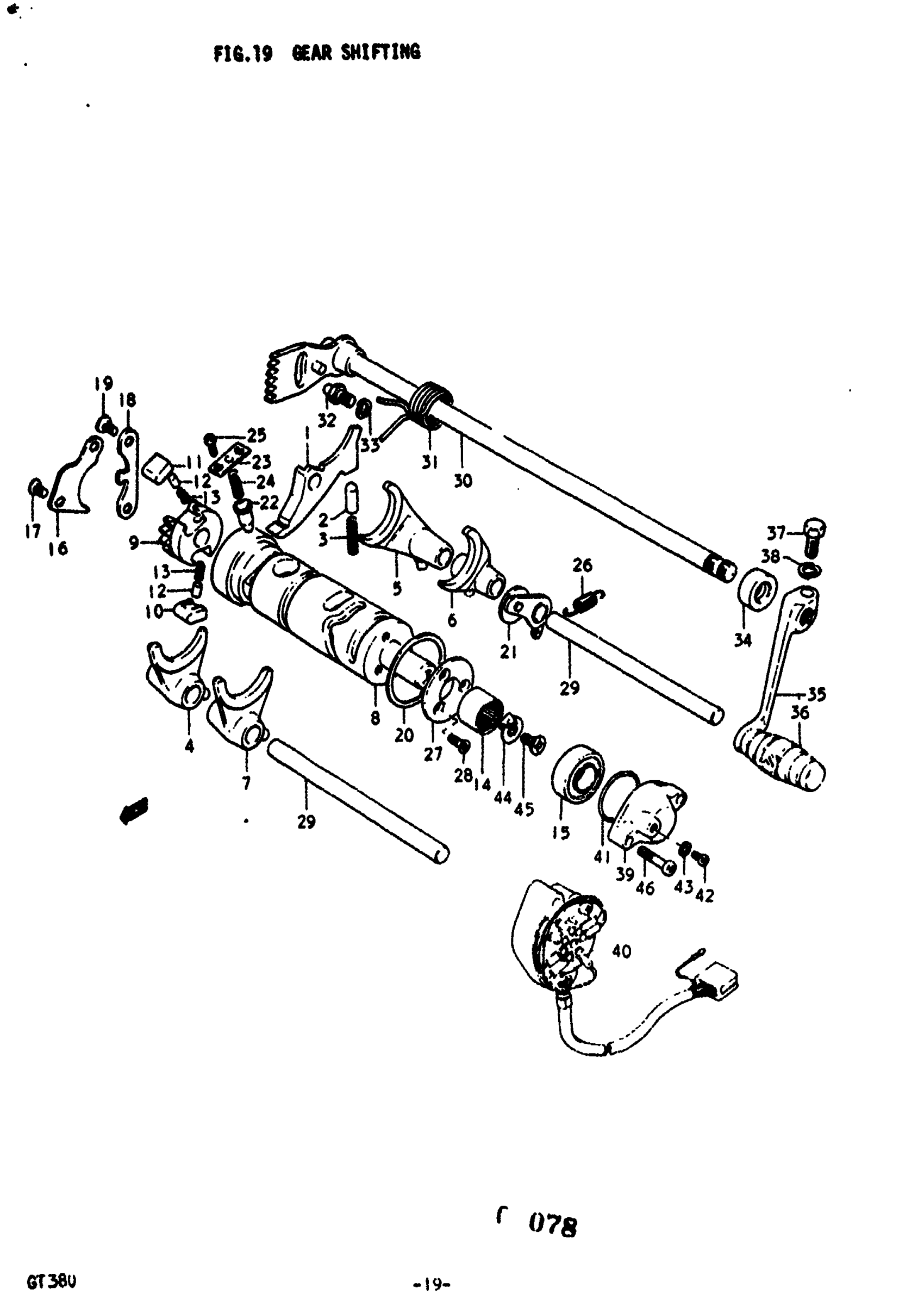

Find the part on the Gear Shifting diagram for your 1977 Suzuki GT380, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT380 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHOE, TRANSMISSION BRAKE | K,L,M,A,B This part replaces 24640-33000.

24641-33031

1
Out of stock

2

TAPPET, TRANSMISSION SHOE | K,L,M,A,B

24631-18010

1
Out of stock

3

SPRING | K,L,M,A,B

09440-07017

1
Out of stock

4

FORK, 5TH DRIVE GEAR SHIFTING | K,L; TO 25241-18000 This part replaces 25211-18000.

25241-18000

1
Out of stock

5

FORK, GEAR SHIFTING | K,L,M,A,B

25221-18000

1
Out of stock

6

FORK, GEAR SHIFTING | K,L,M,A,B

25231-18000

1
Out of stock

7

FORK, GEAR SHIFTING | K,LM,A,B

25241-18000

1
Out of stock

8

CAM, GEAR SHIFTING | K; TO 25310-18003 USED WITH 02122-06168 This part replaces 25310-18002.

25310-18004

1
Out of stock

8

CAM, GEAR SHIFTING | L,M; TO 25310-18004

25310-18003

—
Out of stock

8

CAM, GEAR SHIFTING | A,B

25310-18004

1
Out of stock

9

GEAR, GEAR SHIFT CAM DRIVEN | K,L,M,A,B This part replaces 25322-11000.

25322-31310

1
Out of stock

10

PAWL, GEAR SHIFT NO.1 | K,L,M,A,B This part replaces 25323-11000.

25323-34201

1
Out of stock

11

PAWL, GEAR SHIFT NO.2 | K,L,M,A,B This part replaces 25324-11000.

25324-34201

1
Out of stock

12

PIN | K,L,M,A,B

09261-05003

2
Out of stock

13

SPRING | K,L,M,A,B

09440-04003

2
Out of stock

14

BEARING | K,L,M; 16x22x16

09263-16006

1
Out of stock

14

BEARING | M,A,B; USED TO 11300-33821

09263-16012

1
Out of stock

15

OIL SEAL | M,A,B; USED TO 11300-33821

09284-16002

1
Out of stock

16

LIFTER, GEAR SHIFTING PAWL | K,L,M,A,B

25331-11001

1
Out of stock

17

SCREW | K,L,M,A,B This part replaces 02122-06128.

02122-06127

2
Out of stock

18

GUIDE, GEAR SHIFTING CAM | K,L,M,A,B

25341-18000

1
Out of stock

19

SCREW | K,L,M,A,B This part replaces 02122-06128.

02122-06127

2
Out of stock

20

THRUST WASHER | K,L,M,AB

09160-40001

2
Out of stock

21

STOPPER, GEAR SHIFTING CAM | K,L,M,A,B

25350-18000

1
Out of stock

22

STOPPER, GEAR SHIFTING CAM | K,L,M,A,B

25351-18001

1
Out of stock

23

HOLDER, STOPPER SPRING | K,L,M,A,B

25354-18000

—
Out of stock

24

SPRING | K,L,M,A,B

09440-05011

1
Out of stock

25

SCREW | K,L,M,A,B This part replaces 02111-04087.

02112-04087

2
Out of stock

26

SPRING | K,L,M,A,B

09443-09006

1
Out of stock

27

PLATE, CAM STOPPER | K,L,M,A; TO 25381-20001 This part replaces 25381-20000.

25381-20001

1
Out of stock

27

PLATE, STOPPER | B

25381-20001

1
Out of stock

28

.SCREW | K,L,M,A,B This part replaces 02121-04127.

02122-0412A

3
Out of stock

29

SHAFT, SHIFTING FORK | K,L,M,A,B

25411-18000

2
Out of stock

30

NO DESCRIPTION AVAILABLE | K,L,M,A,B This part replaces 25510-33000.

25510-33X00

1
Out of stock

31

SPRING | K,L,M,A,B; FROM 09444-26001 This part replaces 09444-26012.

09444-26013

1
Out of stock

32

STOPPER, ARM | K,L,M,A,B This part replaces 25671-01000.

25671-01011

1
Out of stock

33

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

1
Out of stock

34

OIL SEAL (12X22X9) | K,L,M,A,B; 12.5x22x29 This part replaces 09285-12002.

09285-12006

1
Out of stock

35

LEVER ASSY, GEAR SHIFTING | K,L,M,A,B; FROM 25600-33002; Includes Item(s) 36 - 36 This part replaces 25600-33003.

25600-44000

1
Out of stock

36

.RUBBER,GEAR SHIFT PEDAL | K; USED TO 25600-33002 This part replaces 25652-03201.

25652-16510

1
Out of stock

36

.RUBBER,GEAR SHIFT PEDAL | L,M,A,B This part replaces 25652-16500.

25652-16510

1
Out of stock

37

BOLT, REAR | K,L,M,A,B This part replaces 01122-08208.

01500-08207

1
Out of stock

38

.LOCK WASHER | K,L,M This part replaces 08321-21088.

08321-01087

1
Out of stock

39

BODY, GEAR SHIFTING SWITCH | K

37721-15002

1
Out of stock

40

SWITCH ASSY, GEAR SHIFTING | L,M; TO 37710-33111

37710-33110

—
Out of stock

40

SWITCH ASSY, GEAR SHIFTING | M; TO 37710-33990 This part replaces 37710-33111.

37710-33112

1
Out of stock

40

SWITCH ASSY, GEAR SHIFTING | M; MARKED "A" TO 37710-33112

37710-33990

—
Out of stock

40

SWITCH ASSY, GEAR SHIFTING | A,B

37710-33112

1
Out of stock

41

O RING | K,L,M,A,B

09280-28002

1
Out of stock

42

SCREW | K This part replaces 02111-03048.

02112-03047

1
Out of stock

43

WASHER | K This part replaces 08322-21038.

08322-01037

1
Out of stock

44

CONTACT, SHIFTING SWITCH | K; FROM 37711-05100

37711-05101

1
Out of stock

45

SCREW | K This part replaces 02122-06128.

02122-06127

1
Out of stock

45

SCREW | L This part replaces 02122-06168.

02122-06167

1
Out of stock

46

SCREW | K,L,M,A,B This part replaces 02111-05207.

02112-05207

2
Out of stock
