1977 Suzuki GT380 Clutch Diagram

← All diagrams

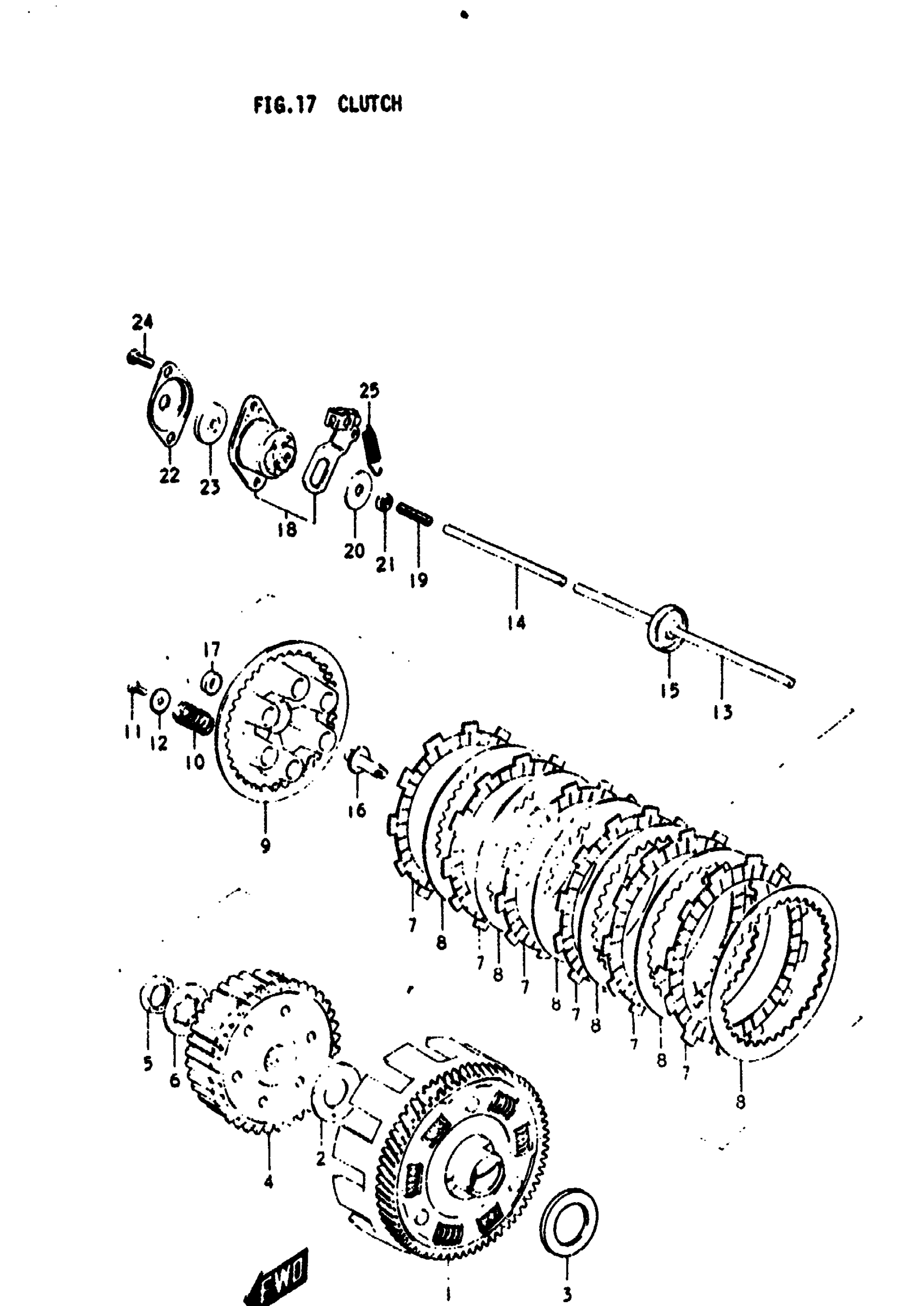

Find the part on the Clutch diagram for your 1977 Suzuki GT380, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT380 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVEN | K,L; NT:68 TO 21200-33003 This part replaces 21200-33002.

21200-33003

1
Out of stock

1

GEAR ASSY, PRIMARY DRIVEN | M,A,B; NT:68

21200-33003

1
Out of stock

2

THRUST WASHER | K,L,M,A,B; 20x44x3

09160-20015

1
Out of stock

3

THRUST WASHER | M,A,B

09160-25009

1

$5.20

In stock

4

HUB, SLEEVE | K,L,M,A,B This part replaces 21411-30000.

21411-30001

1
Out of stock

5

NUT | K,L,M,A,B This part replaces 09140-20002.

09140-20001

1
Out of stock

6

LOCK WASHER | K,L,M,A,B This part replaces 09167-20006.

09167-20009

1
Out of stock

7

PLATE, CLUTCH DRIVE NO.2 | K,L,M,A,B This part replaces 21441-16500.

21442-37401

6
Out of stock

8

PLATE, CLUTCH DRIVEN | K,L,M,A,B

21451-31000

6
Out of stock

9

DISK, CLUTCH PRESSURE | K,L,M,A,B

21462-15000

1
Out of stock

10

SPRING | K,L,M,A,B

09440-19004

6
Out of stock

12

WASHER (6.5X20X1.6) | K,L,M,A,B; 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

6
Out of stock

13

ROD, CLUTCH PUSH (1) | K,L,M,A,B; L:123

23111-10000

1
Out of stock

14

ROD, CLUTCH PUSH (2) | K,L,M,A,B; L:194

23111-33000

1
Out of stock

15

SEAL,OIL(6X30X7 | K,L; 4.5x30x7 TO 09285-06005 This part replaces 09285-06004.

09285-06009

1
Out of stock

15

SEAL,OIL(6X30X7 | M,A,B This part replaces 09285-06005.

09285-06009

1
Out of stock

16

PIECE, CLUTCH PUSH | K,L,M,A,B

23121-15001

1
Out of stock

17

OIL SEAL | K,L,M,A,B; 10x17x5

09284-10002

1
Out of stock

18

SCREW ASSY, CLUTCH RELEASE | K,L,M,A,B; Includes Item(s) 19 - 21

23200-33000

1
Out of stock

19

SCREW | K,L,M,A,B This part replaces 09134-06001.

09134-06010

1
Out of stock

20

WASHER (6.5X24X1.2) | K,L,M,A,B; 6.5x24x1.2 This part replaces 09160-06002.

09160-06114

1
Out of stock

21

.NUT | K,L,M,A,B This part replaces 08311-31068.

08310-00067

1
Out of stock

22

COVER, CLUTCH RELEASE SCREW | K,L,M,A,B

23241-33000

1
Out of stock

23

DUST SEAL | K,L,M,A,B

09285-06007

1
Out of stock

24

SCREW | K,L,M,A,B This part replaces 02112-06168.

02112-06167

2
Out of stock

25

SPRING | K,L,M,A,B

09443-08001

1
Out of stock
