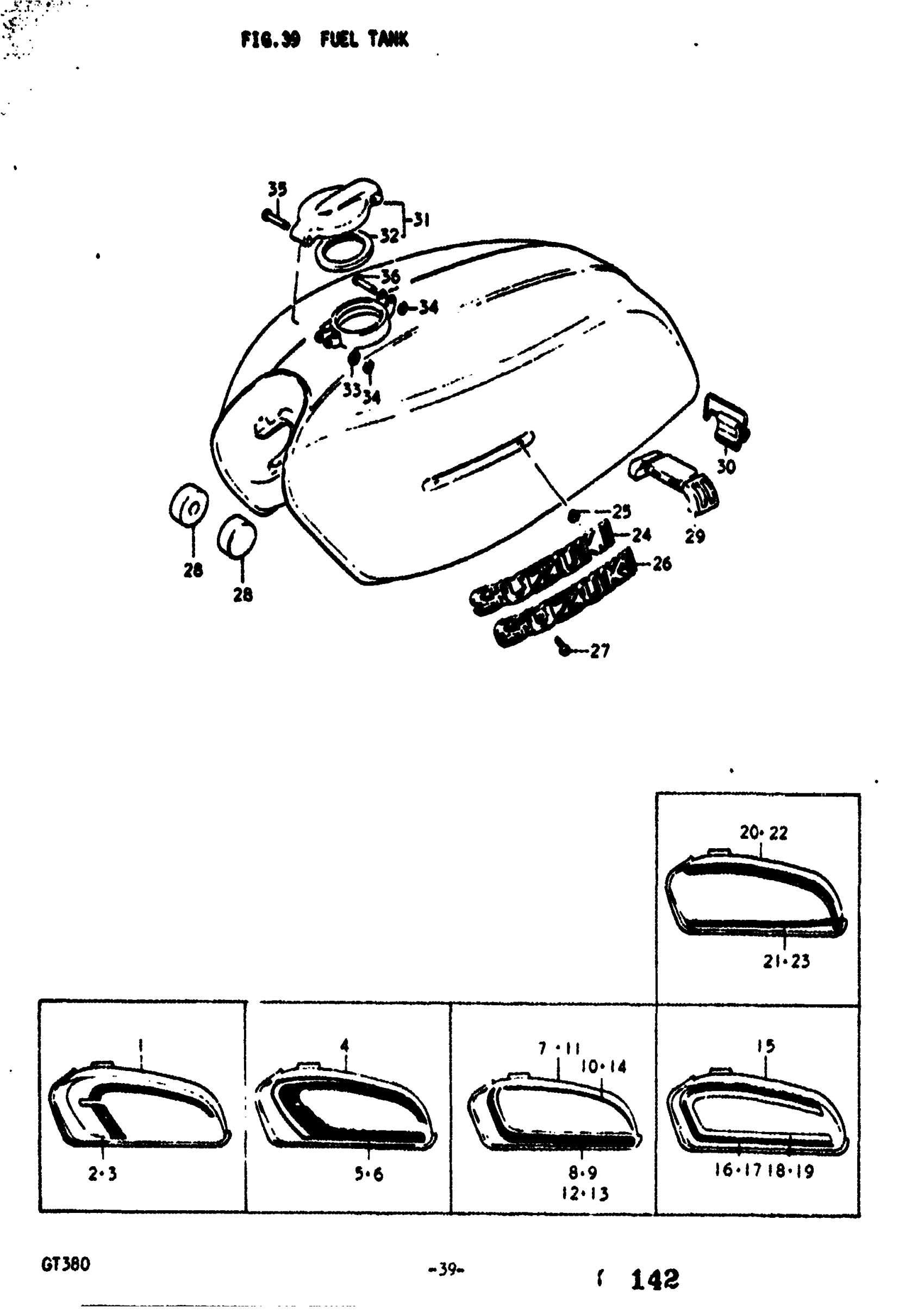

Suzuki GT380 (1977) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | K; FROM 44110-33807-279 TO 44110-33601-279 USED WITH 68111-34000 (2), 09127-03003 (4) This part replaces 44110-33600-279.

44101-33861-737

Unavailable

1

TANK SET, FUEL | K; FROM 44110-33807-716 TO 44110-33601-716 USED WITH 68111-34000 (2), 09127-03003 (4); Includes Item(s) 2 - 3

44110-33600-716

Unavailable

2

NO DESCRIPTION AVAILABLE | K; TO 68100-33830-211 This part replaces 68115-33600-211.

68100-33830-211

Unavailable

3

NO DESCRIPTION AVAILABLE | K; TO 68100-33830-211 This part replaces 68125-33600-211.

68100-33830-211

Unavailable

4

TANK, FUEL | L; TO 44110-33101-156 USED WITH 68111-34000 (2), 09127-03002 (4)

44110-33100-156

Unavailable

4

NO DESCRIPTION AVAILABLE | L; TO 44110-33101-176 USED WITH 68111-34000 (2), 09127-03002 (4); Includes Item(s) 5 - 6 This part replaces 44110-33100-176.

44110-33010-13L

Unavailable

5

TAPE, STRIPING RH | L; TO 68100-33820-765

68115-33100-765

Unavailable

6

NO DESCRIPTION AVAILABLE | L; TO 68100-33820-765 This part replaces 68125-33100-765.

68100-33820-765

Unavailable

7

TANK, FUEL | M; TO 44110-33611-00J USED WITH 68111-34000 (2), 09127-03002 (4).; Includes Item(s) 8 - 10

44110-33610-00J

Unavailable

8

NO DESCRIPTION AVAILABLE | M; TO 68100-33850-764 This part replaces 68115-33620-764.

68100-33850-764

Unavailable

9

NO DESCRIPTION AVAILABLE | M; TO 68100-33850-764 This part replaces 68125-33620-764.

68100-33850-764

Unavailable

10

NO DESCRIPTION AVAILABLE | M; TO 68100-33850-764 This part replaces 68116-33620-764.

68100-33850-764

Unavailable

11

TANK, FUEL | M; TO 44110-33611-737 USED WITH 68111-34000 (2), 09127-03002 (4).; Includes Item(s) 12 - 14

44110-33610-737

Unavailable

12

NO DESCRIPTION AVAILABLE | M; TO 68100-33850-765 This part replaces 68115-33620-765.

68100-33850-765

Unavailable

13

NO DESCRIPTION AVAILABLE | M; TO 68100-33850-765 This part replaces 68125-33620-765.

68100-33850-765

Unavailable

14

NO DESCRIPTION AVAILABLE | M; TO 68100-33850-765 This part replaces 68116-33620-765.

68100-33850-765

Unavailable

15

NO DESCRIPTION AVAILABLE | A This part replaces 44110-33620-019.

44110-33010-13L

Unavailable

15

NO DESCRIPTION AVAILABLE | A; Includes Item(s) 16 - 19 This part replaces 44110-33620-797.

44110-33010-13L

Unavailable

16

NO DESCRIPTION AVAILABLE | A; TO 68100-33860-60S This part replaces 68115-33630-60S.

68100-33860-60S

Unavailable

17

NO DESCRIPTION AVAILABLE | A; TO 68100-33860-60S This part replaces 68125-33630-60S.

68100-33860-60S

Unavailable

18

NO DESCRIPTION AVAILABLE | A; TO 68100-33860-60S This part replaces 68116-33630-60S.

68100-33860-60S

Unavailable

19

TAPE, STRIPING NO.2 LH | A; TO 68100-33860-60S

68126-33630-608

Unavailable

20

NO DESCRIPTION AVAILABLE | B This part replaces 44110-33630-03F.

44110-33010-13L

Unavailable

21

TAPE SET, STRIPING | B

68100-33870-61U

Unavailable

22

NO DESCRIPTION AVAILABLE | B This part replaces 44110-33630-03G.

44110-33010-03G

Unavailable

23

TAPE SET, STRIPING | B

68100-33870-61R

Unavailable

24

EMBLEM | K

68111-33000

Unavailable

24

EMBLEM | L

68111-33001

Unavailable

24

EMBLEM, FUEL TANK | M; TO 68111-33001 This part replaces 68111-33002.

68111-33001

Unavailable

25

NUT | K,L,M

09148-04005

Unavailable

26

EMBLEM | A,B

68111-34000

$20.15

27

SCREW | A,B This part replaces 09127-03002.

02122-0306B

$2.26

28

CUSHION | K,L,M,A,B This part replaces 09329-10007.

09329-10026

$2.23

29

CUSHION | K,L,M,A,B

44541-33000

Unavailable

30

BAND | K,L,M,A,B

09462-00049

Unavailable

31

CAP ASSY,FUEL T | K,L,M,A,B; Includes Item(s) 32 - 36 This part replaces 44200-33011.

44200-33012

Unavailable

32

GASKET | K,L,M,A,B; FROM 44248-33010 This part replaces 44248-33011.

44248-33012

$9.67

33

WASHER, CAP FRICTION | K,L,M,A,B

44238-33010

Unavailable

34

E RING | K,L,M,A,B

09383-02003

Unavailable

35

PIN, CAP FRONT | K,L,M,A,B

44239-33010

Unavailable

36

PIN, CAP LOCK | K,L,M,A,B

44233-33010

Unavailable
