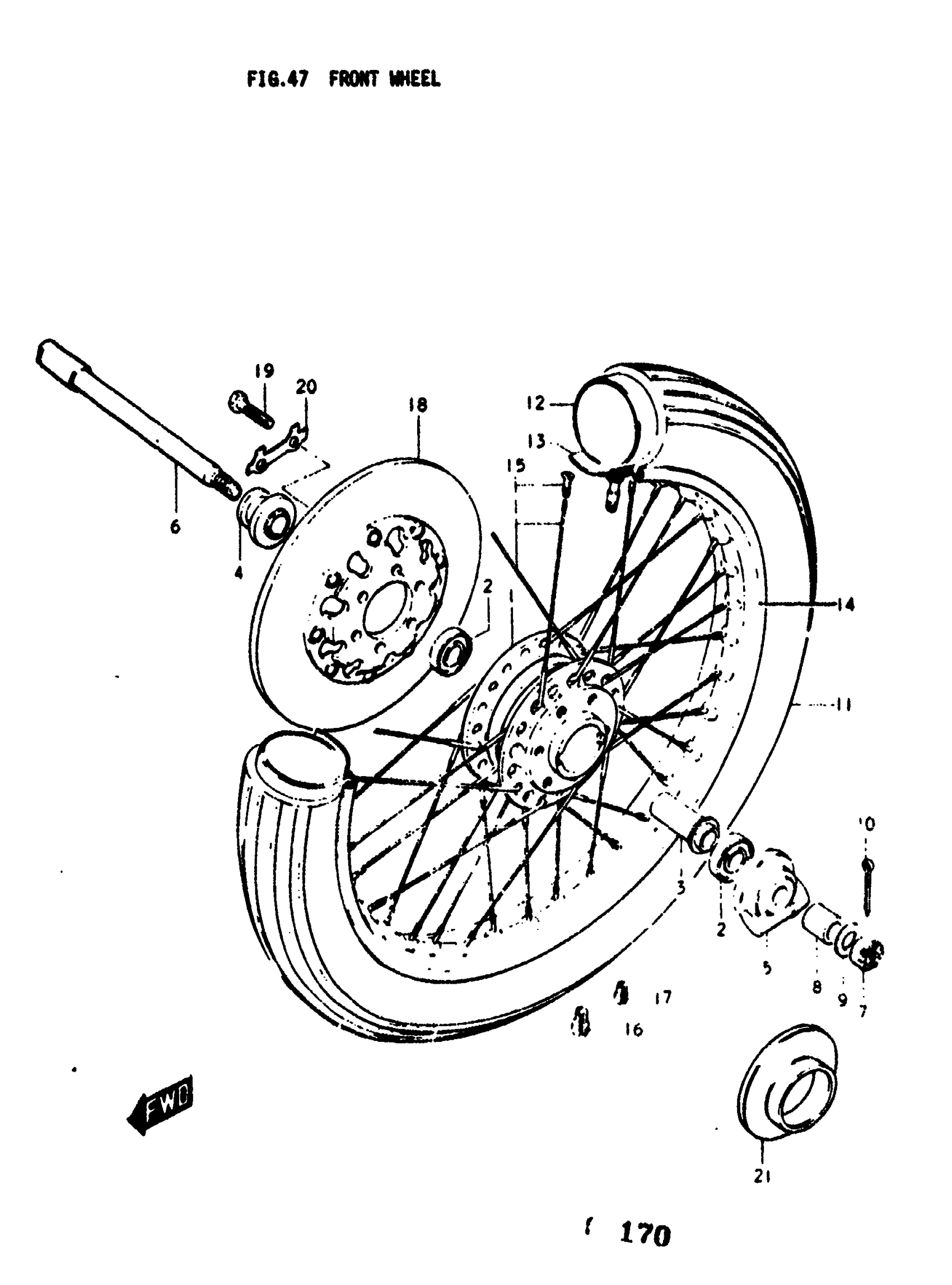

Suzuki GT380 (1977) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEEL | K,L; TO 54100-18831

54100-18830

Unavailable

1

NO DESCRIPTION AVAILABLE | M,A,B; Includes Item(s) 2 - 3 This part replaces 54100-18831.

54111-47002

Unavailable

2

BEARING | K,L,M,A,B This part replaces 08123-63020.

08123-6302B

$22.74

3

SPACER | K,L,M,A,B

54730-18400

$20.45

4

SPACER, AXLE, RH | K,L,M; TO 54740-18401 This part replaces 54740-18400.

54740-18402

Unavailable

4

SPACER, AXLE, RH | A,B This part replaces 54740-18401.

54740-18402

Unavailable

5

BOX ASSY,SPEEDO | K,L,M,A; TO 54600-34001 This part replaces 54600-34000.

54600-08C01

Unavailable

5

BOX ASSY,SPEEDO | B This part replaces 54600-34001.

54600-08C01

Unavailable

6

AXLE, FRONT | K,L

54711-33000

Unavailable

6

AXLE,FRONT | L; TO 54711-33002 USED WITH 09180-05034 This part replaces 54711-33001.

54711-3300V

Unavailable

6

AXLE,FRONT | M,A,B This part replaces 54711-33002.

54711-3300V

Unavailable

7

NUT | K,L; L:37

54721-31000

Unavailable

7

NUT | L,M,A,B; L:15 This part replaces 08314-31128.

08314-3112A

$2.41

8

SPACER | L,M,A,B

09180-15034

Unavailable

9

WASHER | L,M,A,B This part replaces 08322-21108.

08322-01107

$2.15

10

PIN | L,M,A,B This part replaces 04111-30308.

04111-3030A

$1.49

11

NO DESCRIPTION AVAILABLE | K,L; 3.00-19 TO 55100-33600 This part replaces 55100-33030.

55100-33610

Unavailable

11

TIRE | M; TO 55100-33600

55100-33012

Unavailable

11

NO DESCRIPTION AVAILABLE | A,B This part replaces 55100-33600.

55100-33610

Unavailable

12

TUBE | K,L,M; 3.00-19

55200-33030

Unavailable

12

TUBE | A,B

55200-29010

Unavailable

13

PROTECTOR | K,L,M; TO 55261-15010

55261-15030

Unavailable

13

PROTECTOR, WHEEL INNER TUBE FRONT | A,B This part replaces 55261-15010.

55261-15020

$3.15

14

RIM | K,L,M,A,B

55311-33600

Unavailable

15

SPOKE SET | K,L,M,A,B This part replaces 55320-34805.

55320-45000

Unavailable

16

BALANCER WHEEL (30G) | (0~2)K,L,M,A,B; 30G This part replaces 55412-11000.

55413-41F00

$7.50

17

BALANCER WHEEL (15G) | (0~2)K,L,M,A,B; 20G This part replaces 55411-11000.

55411-26G00

$7.73

18

DISK, FRONT BRAKE | K,L,M; TO 59210-18401

59210-18400

Unavailable

18

NO DESCRIPTION AVAILABLE | A,B This part replaces 59210-18401.

59210-18402

Unavailable

19

BOLT, DISK | K,L,M,A,B

09100-08094

$2.71

20

WASHER | K,L,M,A,B

09169-08016

$2.41

21

DUST SEAL | K,L,M,A,B

54871-18400

Unavailable
