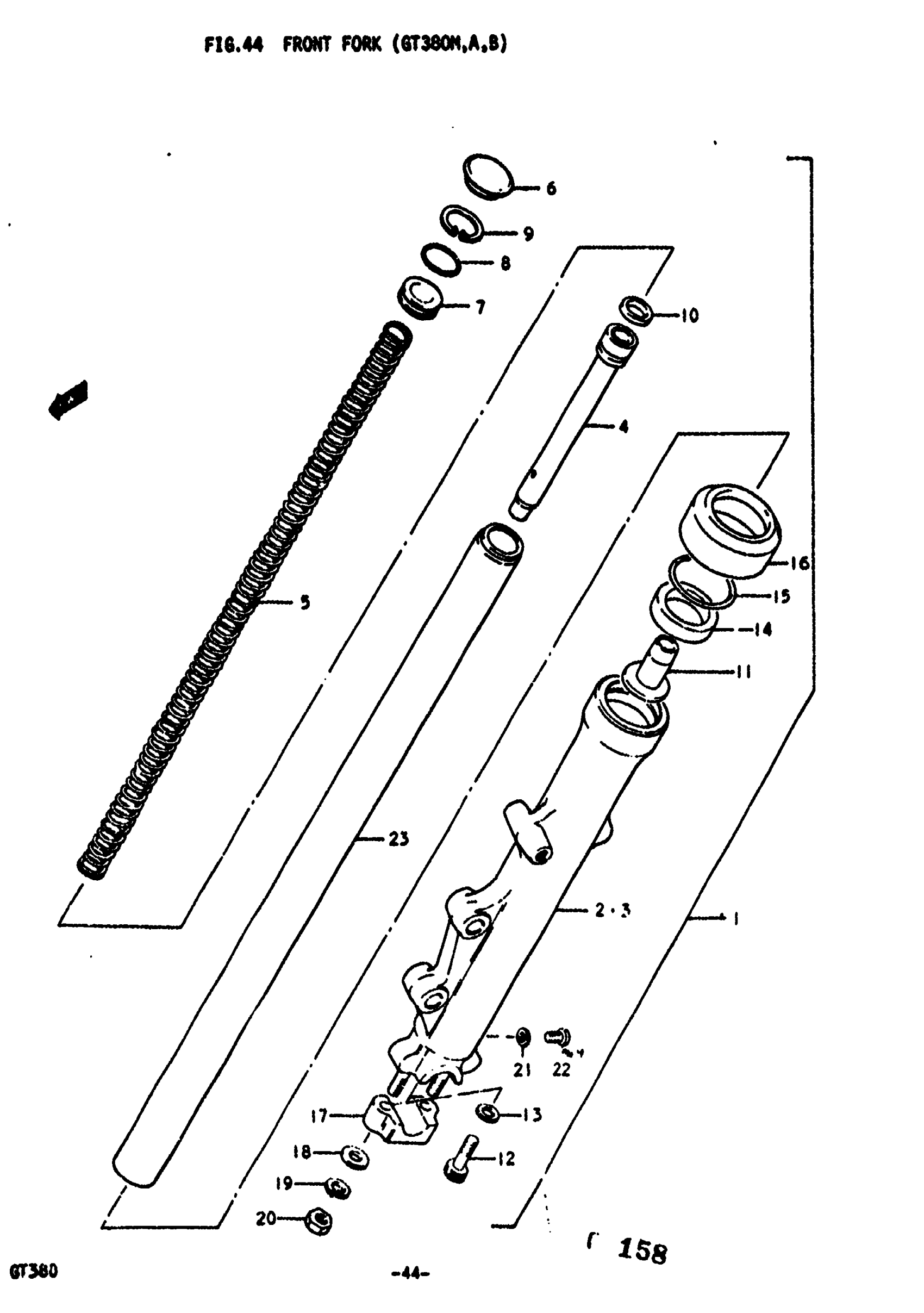

Suzuki GT380 (1977) FRONT FORK (GT380M Diagram

#

Description
Price

1

DAMPER ASSY, RH | M,A; TO 51103-33132 This part replaces 51103-33131.

51103-33132

Unavailable

1

DAMPER ASSY, RH | B

51103-33132

Unavailable

1

DAMPER ASSY, LH | M,A; TO 51104-33132

51104-33131

Unavailable

1

DAMPER ASSY, LH | B; Includes Item(s) 2 - 23

51104-33132

Unavailable

2

OUTER TUBE, RH | M,A; TO 51130-33132 This part replaces 51130-33131.

51130-33132

Unavailable

2

OUTER TUBE, RH | B

51130-33132

Unavailable

3

OUTER TUBE, LH | M,A; TO 51140-33132 This part replaces 51140-33131.

51140-33132

Unavailable

3

OUTER TUBE, LH | B

51140-33132

Unavailable

4

SEAT, PIPE | M,A,B

51146-33130

Unavailable

5

SPRING | M,A,B

51171-33131

Unavailable

6

NO DESCRIPTION AVAILABLE | M,A,B This part replaces 51189-33130.

51189-13620

Unavailable

7

SEAT, SPRING | M,A,B

51172-33130

Unavailable

8

O RING | M,A,B

51181-33131

$4.68

9

CLIP | M,A,B

08331-41268

Unavailable

10

PISTON RING | M,A,B

51196-33130

$8.12

11

PIECE, OLL LOCK | M,A,B

51195-33130

Unavailable

12

BOLT | M,A,B This part replaces 51147-31030.

51147-48130

$4.34

13

O RING | M,A,B This part replaces 51148-31030.

51148-36011

$3.56

14

OIL SEAL | M,A,B This part replaces 51153-33730.

51153-02B00

$20.06

15

RING, OIL SEAL STOPPER | M,A,B This part replaces 51156-33130.

51156-02B00

$5.36

16

DUST SEAL | M,A,B This part replaces 51571-33131.

51571-37310

$20.15

17

HOLDER, AXIE | M,A,B

51132-31030

Unavailable

18

WASHER | M,A,B This part replaces 08322-21088.

08322-01087

$2.13

19

.LOCK WASHER | M,A,B This part replaces 08321-21088.

08321-01087

$2.13

20

NUT | M,A,B This part replaces 08311-11088.

08310-00087

$2.13

21

GASKET, DRAIN PLUG | M,A,B

51183-33030

Unavailable

22

SCREW | M,A,B This part replaces 02112-06068.

02112-06067

$1.93

23

INNER TUBE | M,A,B

51110-33131

Unavailable
