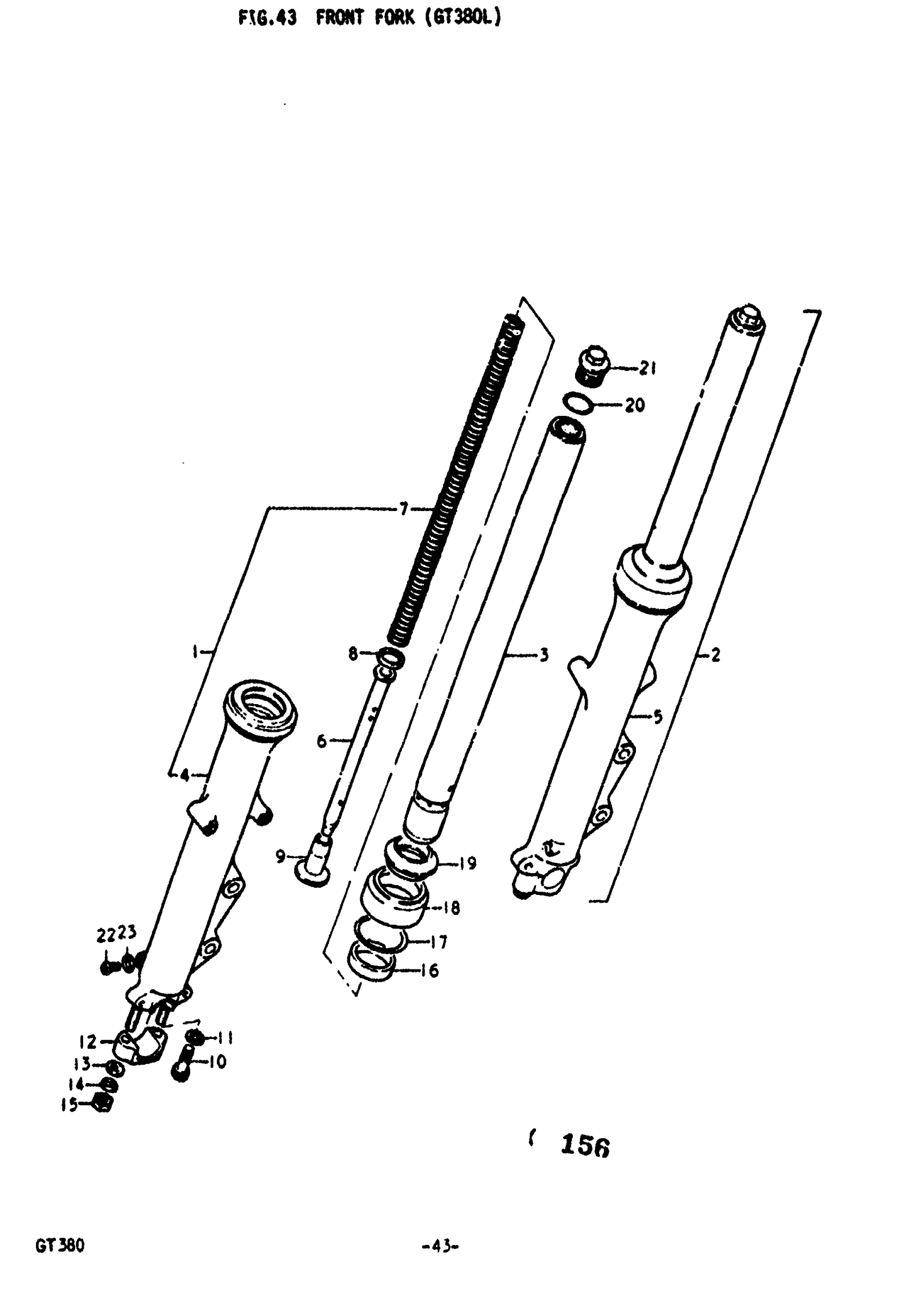

Suzuki GT380 (1977) FRONT FORK (GT380L) Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-33130

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 23

51104-33130

Unavailable

3

TUBE, FRONT FORK

51110-33130

Unavailable

4

TUBE, OUTER RH

51130-33130

Unavailable

5

TUBE, OUTER LH

51140-33130

Unavailable

6

TUBE, INNER

51146-33130

Unavailable

7

SPRING

51171-33130

Unavailable

8

RING, PISTON

51196-33130

$8.12

9

PIEACE, OIL LOCK

51195-33130

Unavailable

10

BOLT This part replaces 51147-31030.

51147-48130

$4.34

11

O RING This part replaces 51148-31030.

51148-36011

$3.56

12

HOLDER, FRONT AXIE

51132-31030

Unavailable

13

WASHER This part replaces 08322-21088.

08322-01087

$2.13

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

NUT This part replaces 08311-11088.

08310-00087

$2.13

16

OIL SEAL This part replaces 51153-33730.

51153-02B00

$20.06

17

RING, OIL SEAL STOPPER This part replaces 51156-33130.

51156-02B00

$5.36

18

COVER | CHROME-PLATED

51572-31230

Unavailable

19

DUST SEAL This part replaces 51571-33130.

51571-37310

$20.15

20

O RING

51181-33130

Unavailable

21

BOLT

51351-33130

Unavailable

22

SCREW This part replaces 02111-04067.

02112-0406B

$1.55

23

GASKET

51183-33030

Unavailable
