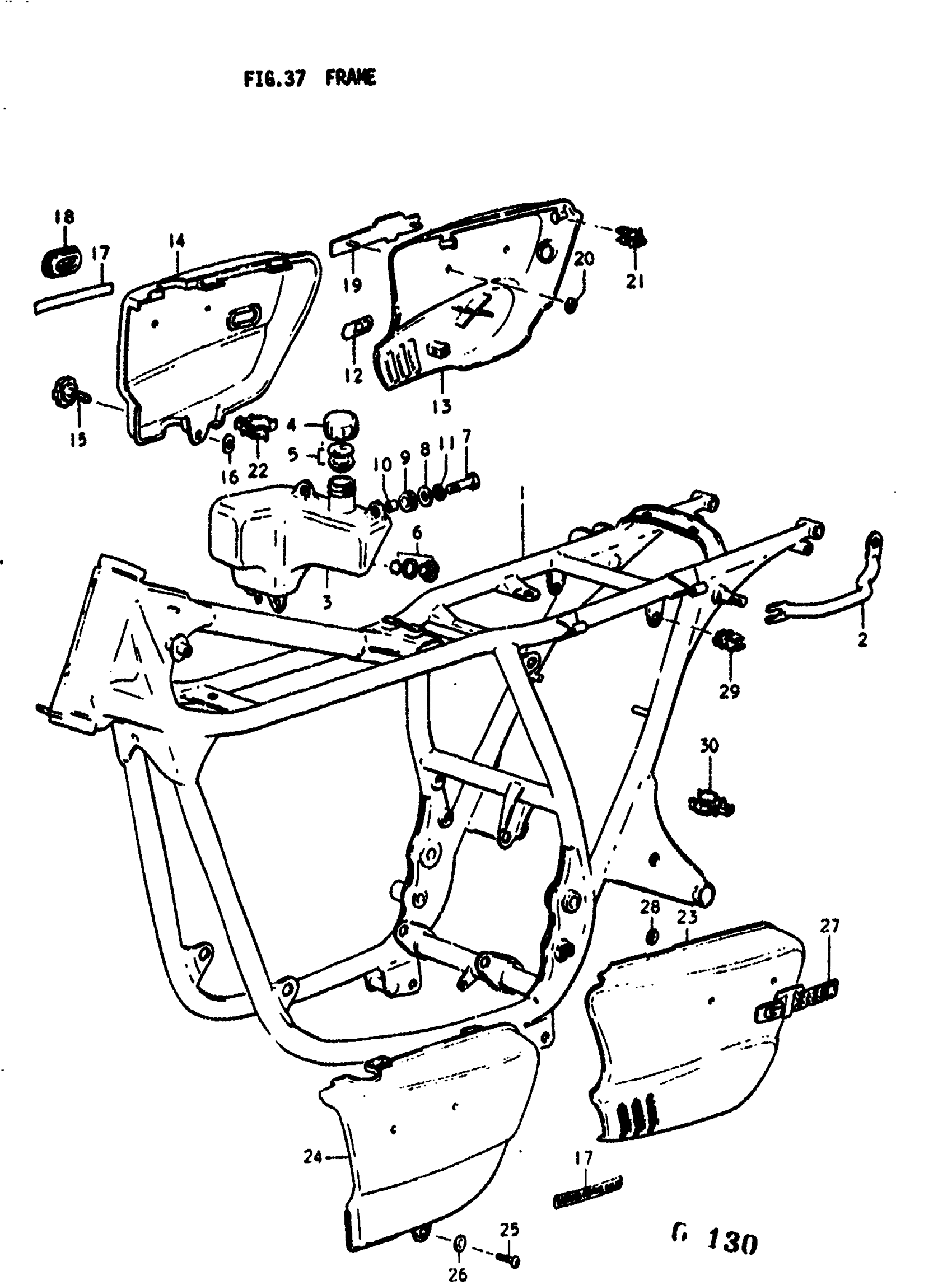

Suzuki GT380 (1977) FRAME Diagram

#

Description
Price

1

FRAME | K; SEE NOTE

41100-33001-019

Unavailable

1

FRAME | K; F.NO.47292~.

41100-33002-019

Unavailable

1

FRAME | L,M; TO 41100-33101-019

41100-33100-019

Unavailable

1

FRAME | B; TO 41100-33101-019

41100-33101-019

Unavailable

2

GRIP, FRAME HANDLE | K,M,A,B

41411-33000

Unavailable

3

TANK, OIL | K

44611-33000

Unavailable

3

TANK, OIL | L,M,A,B

44611-33100

Unavailable

4

CAP, OIL TANK | L This part replaces 44651-05000.

44651-05003

$5.05

4

CAP, OIL TANK | L,M,A,B; FROM 44651-05001 This part replaces 44651-05002.

44651-05003

$5.05

5

GASKET SET | K,L,M,A; FROM 44660-33806 TO 44600-35821 This part replaces 44600-35820.

44600-30833

$5.42

5

GASKET SET | B This part replaces 44600-35821.

44600-30833

$5.42

6

OIL LEVEL INSPE | K; TO 44600-31830 This part replaces 44640-31807.

44600-31832

$11.07

6

OIL LEVEL INSPE | M,A,B This part replaces 44600-31830.

44600-31832

$11.07

7

BOLT | K,L,M,A This part replaces 01112-06258.

01500-06257

$1.97

7

BOLT | B This part replaces 01112-06208.

01500-06207

$2.28

8

WASHER | K,L,M,A,B This part replaces 09160-06007.

09160-06084

$1.78

9

CUSHION | K,L,M,A,B This part replaces 09320-10008.

09320-10075

$1.93

10

SPACER (6.5X10X10) | K,L,M,A,B; 6.8x10x10 This part replaces 09180-06030.

09180-06310

$1.91

11

.LOCK WASHER | K,L,M, This part replaces 08321-21088.

08321-01087

$2.13

12

EMBLEM, CCI | K,L,M,A,B

68171-26000

$3.59

13

NO DESCRIPTION AVAILABLE | K This part replaces 47111-33000-279.

47111-33000-019

Unavailable

13

NO DESCRIPTION AVAILABLE | K This part replaces 47111-33000-716.

47111-33000-019

Unavailable

14

COVER, FRAME RH | L This part replaces 47111-34100-156.

47111-34100

Unavailable

14

COVER, FRAME RH | L This part replaces 47111-34100-176.

47111-34100

Unavailable

14

COVER, FRAME RH | M This part replaces 47111-34100-00J.

47111-34100

Unavailable

14

COVER, FRAME RH | M This part replaces 47111-34100-737.

47111-34100

Unavailable

14

COVER, FRAME RH | A This part replaces 47111-34100-019.

47111-34100

Unavailable

14

COVER, FRAME RH | A This part replaces 47111-34100-797.

47111-34100

Unavailable

14

COVER, FRAME RH | B This part replaces 47111-34100-03F.

47111-34100

Unavailable

14

COVER, FRAME RH | B This part replaces 47111-34100-291.

47111-34100

Unavailable

15

KNOB, FRAME COVER RH | L,M,A,B; FROM 47130-33100

47130-33101

$9.32

16

STOPPER, KNOB | L,M,A,B

09152-06002

$1.67

17

LABEL, COMPANY NAME | L,M,A,B

68363-26200

Unavailable

18

RUBBER, OIL LEVEL INSPECTION | L,M,A,B

44649-34100

Unavailable

19

EMBLEM, FRAME COVER RH | K,L,M,A,B

68141-33000

Unavailable

20

NUT | K,L,M,A,B This part replaces 09148-03004.

09148-03011

$1.96

21

CLAMP | K; TO 09403-07306

09410-00050

Unavailable

22

CLAMP | K; TO 09403-26301

09410-00046

Unavailable

23

NO DESCRIPTION AVAILABLE | K This part replaces 47211-33000-279.

47211-33000-019

Unavailable

23

NO DESCRIPTION AVAILABLE | K This part replaces 47211-33000-716.

47211-33000-019

Unavailable

24

COVER,FRAME LH | L This part replaces 47211-34100-156.

47211-34100

Unavailable

24

COVER,FRAME LH | L This part replaces 47211-34100-176.

47211-34100

Unavailable

24

COVER,FRAME LH | M This part replaces 47211-34100-00J.

47211-34100

Unavailable

24

COVER,FRAME LH | M This part replaces 47211-34100-737.

47211-34100

Unavailable

24

COVER,FRAME LH | A This part replaces 47211-34100-019.

47211-34100

Unavailable

24

COVER,FRAME LH | A This part replaces 47211-34100-797.

47211-34100

Unavailable

24

COVER,FRAME LH | B This part replaces 47211-34100-03F.

47211-34100

Unavailable

24

COVER,FRAME LH | B This part replaces 47211-34100-291.

47211-34100

Unavailable

25

SCREW | L,M,A,B

02141-06168

Unavailable

26

WASHER | L,M

09169-06019

Unavailable

26

WASHER (6.5X20X1.2) | A,B This part replaces 09160-06027.

09160-06077

$1.91

27

EMBLEM, FRAME COVER LH | K,L,M,A,B

68141-33000

Unavailable

28

NUT | K,L,M,A,B This part replaces 09148-03004.

09148-03011

$1.96

29

CLAMP | K; TO 09403-07306

09410-00050

Unavailable

30

CLAMP | K; TO 09403-26301

09410-00046

Unavailable
