1977 Suzuki GT380 Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 1977 Suzuki GT380, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

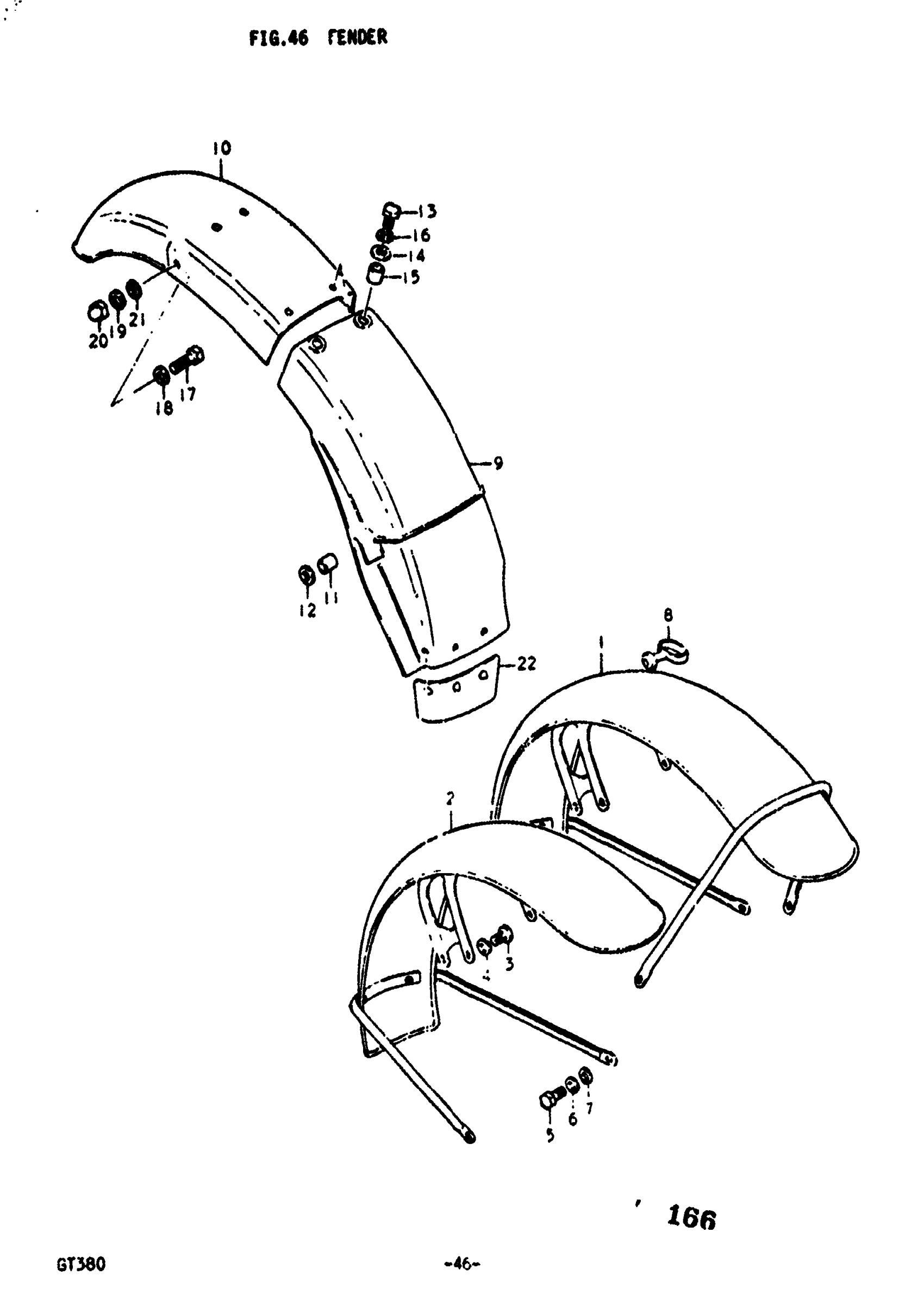

1977 Suzuki GT380 Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT | K; TO 53100-34003

53100-33700

—
Out of stock

1

FENDER, FRONT | L; TO 53100-31702

53100-31701

—
Out of stock

1

FENDER, FRONT | M

53100-31702

1
Out of stock

2

FENDER, FRONT | A,B This part replaces 53100-31703.

53100-31702

1
Out of stock

6

WASHER | K,L,MA,B This part replaces 08322-21068.

08322-01067

4
Out of stock

8

GUIDE, METER CABLE | K,L,M,A,B; FROM 58621-21201 This part replaces 58621-21202.

58621-21204

1
Out of stock

9

BODY, REAR FENDER FRONT | K,L; TO 63110-33001 USED WITH 09180-06041 2 PCS. This part replaces 63112-33000.

63112-33004

1
Out of stock

9

BODY, REAR FENDER FRONT | M; TO 63112-33001 USED WITH 09250-12001 2PCS

63110-33001

—
Out of stock

9

BODY, REAR FENDER FRONT | A; TO 63112-33002 This part replaces 63112-33001.

63112-33004

1
Out of stock

9

BODY, REAR FENDER FRONT | B This part replaces 63112-33002.

63112-33004

1
Out of stock

10

BODY, REAR FENDER REAR | K,L,M; TO 63113-33002

63113-33001

—
Out of stock

10

BODY, REAR FENDER REAR | A,B

63113-33002

1
Out of stock

11

CUSHION | K,L,M,A,B This part replaces 09329-05003.

09329-05009

2
Out of stock

11

CUSHION | A,B This part replaces 09320-05006.

09320-06504

2
Out of stock

12

WASHER | A,B This part replaces 09160-06007.

09160-06084

2
Out of stock

13

BOLT | K,L,M,A This part replaces 01112-06208.

01500-06207

2
Out of stock

13

BOLT | B This part replaces 01112-06128.

01500-06127

2
Out of stock

14

WASHER | K,L,M,A,B This part replaces 08322-21068.

08322-01067

2
Out of stock

15

SPACER | K,L; 7.6x10x5

09180-07007

2
Out of stock

15

SPACER | M,A

09180-06041

2
Out of stock

17

BOLT | K,L,M,A,B This part replaces 01122-08508.

01500-08507

2
Out of stock

18

WASHER | KL,M,A,B This part replaces 08322-21088.

08322-01087

3
Out of stock

20

NUT | K,L,M,A,B This part replaces 08313-11087.

08313-10087

2
Out of stock

21

WASHER | B; 8.2x22x3.2 This part replaces 09160-08030.

09160-08128

2
Out of stock

22

MUD GUARD, REAR FENDER | K,L,M,A,B

63411-33000

1
Out of stock
