1977 Suzuki GT380 Center Stand Diagram

← All diagrams

Find the part on the Center Stand diagram for your 1977 Suzuki GT380, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

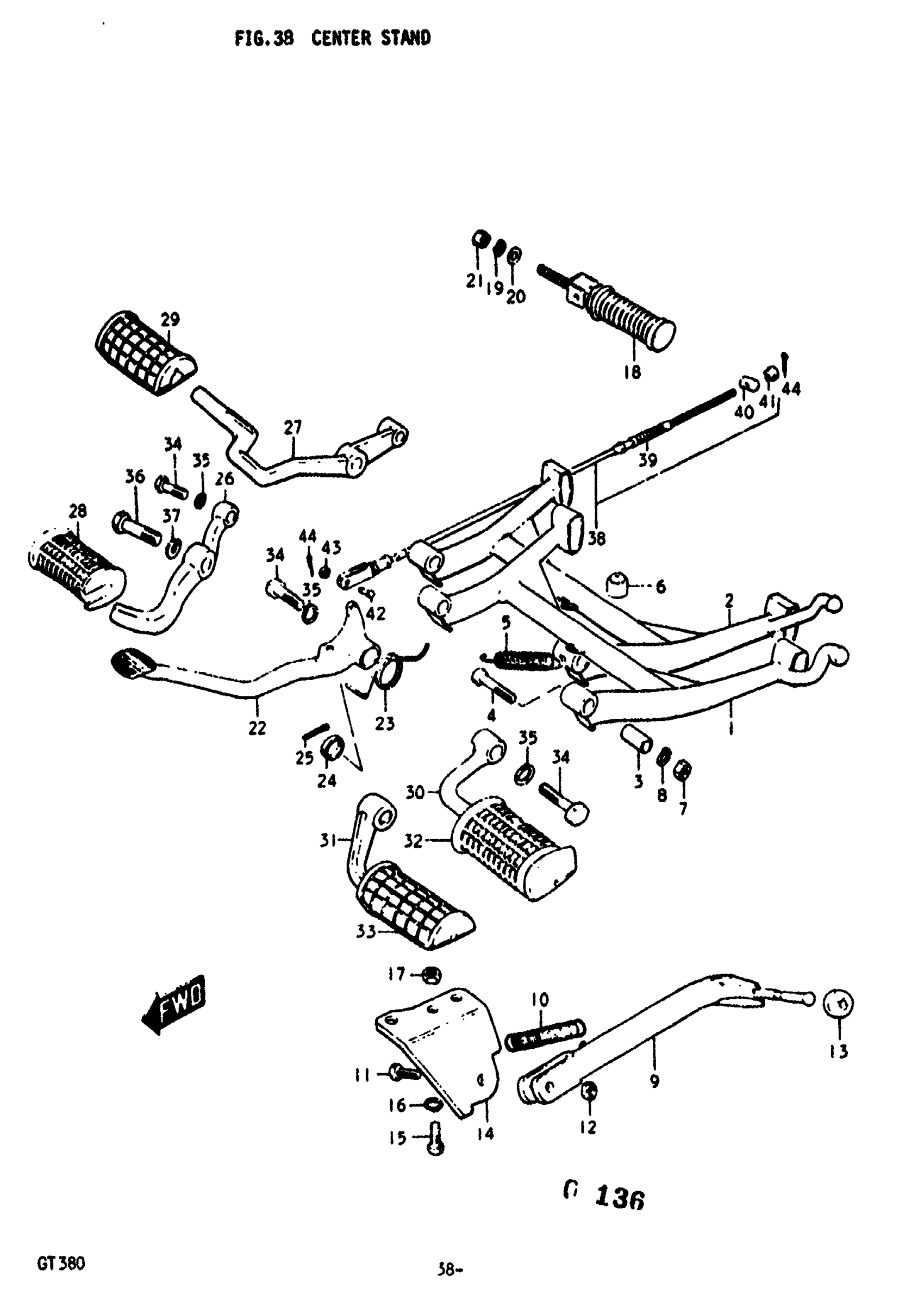

1977 Suzuki GT380 Center Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, CENTER | K

42100-33000

1
Out of stock

2

STAND, CENTER | L,M,A,B

42100-33001

1
Out of stock

3

SPACER | K,L,M,A,B; 10.4x16x30

09180-10001

2
Out of stock

4

BOLT | K,L,M,A,B

09100-10006

2
Out of stock

5

SPRING | K,L,M,A,B This part replaces 09443-16005.

09443-16005-XC0

1
Out of stock

6

CUSHION | K,L,M,A,B

09321-10001

2
Out of stock

7

NUT | K,L,M,A,B This part replaces 08312-12108.

08310-00107

2
Out of stock

8

LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.

08321-01107

2
Out of stock

9

STAND, PROP | K

42310-33000

1
Out of stock

9

STAND, PROP | L,M,A,B

42310-33001

1
Out of stock

10

SPRING | K,L,M,A,B This part replaces 09443-14005.

09443-14017

1
Out of stock

11

BOLT | K,L,M,A,B

09100-10067

1
Out of stock

12

NUT | K,L,M,A,B This part replaces 08312-32108.

08310-00107

1
Out of stock

13

CUSHION | K,L,M,A,B

09320-07001

1
Out of stock

14

BRACKET, PROP STAND | K,L,M,A,B

42330-31600

1
Out of stock

15

BOLT | KL,M,A,B This part replaces 09100-10007.

09100-10287

2
Out of stock

16

LOCK WASHER | KLM,A,B This part replaces 08321-21108.

08321-01107

2
Out of stock

17

NUT | KL,M,A,B This part replaces 08312-32108.

08310-00107

2
Out of stock

18

FOOTREST, PILLION | K; 10 SCREW

43600-31000

2
Out of stock

18

FOOTREST, PILLION | K; 12 SCREW

43600-33000

2
Out of stock

18

FOOTREST, PILLION | L,M,A,B; 10 SCREW

43600-33101

2
Out of stock

19

LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.

08321-01107

2
Out of stock

20

WASHER | K,L,M This part replaces 08322-11108.

08322-01107

2
Out of stock

21

NUT | K,L,M,A,B This part replaces 08312-31108.

08310-00107

2
Out of stock

22

PEDAL, BRAKE | K; TO 43110-33002 This part replaces 43110-33001.

43110-33002

1
Out of stock

22

PEDAL, BRAKE | L,M,A,B

43110-33002

1
Out of stock

23

SPRING | K,L,M,A,B

09448-39003

1
Out of stock

24

CAP, BRAKE PEDAL | K

43135-31000

1
Out of stock

24

CAP, BRAKE PEDAL | L,M,A,B

43135-31001

1
Out of stock

25

PIN, COTTER | L,M,A,B This part replaces 04111-40408.

04111-4040A

1
Out of stock

26

FOOTREST BAR, FRONT RH | K

43511-33002

1
Out of stock

27

FOOTREST BAR, FRONT RH | L,M,A,B

43511-33100

1
Out of stock

28

RUBBER, FRONT FOOTREST RH | K

43551-33000

1
Out of stock

29

RUBBER, FRONT FOOTREST RH | L,M,A,B

43551-33001

1
Out of stock

30

FOOTREST BAR, FRONT LH | K

43521-33000

1
Out of stock

31

FOOTREST BAR, FRONT LH | L,M,A,B

43521-33001

1
Out of stock

32

RUBBER, FRONT FOOTREST LH | K

43551-31000

1
Out of stock

33

RUBBER, FRONT FOOTREST LH | L,M,A,B

43551-36000

1
Out of stock

34

BOLT | K,L

09104-12101

2
Out of stock

34

BOLT | M,A,B

09100-12101

2
Out of stock

35

LOCK WASHER | K,L,M,A,B This part replaces 08321-21128.

08321-01127

2
Out of stock

36

BOLT | K,L,M,A,B This part replaces 01122-08358.

01500-0835B

1
Out of stock

38

CABLE ASSY, REAR BRAKE | K,L,M,A,B; Includes Item(s) 39 - 41

58500-31000

1
Out of stock

39

DUST SEAL | K,L,M,A,B

09287-05001

1
Out of stock

40

.PIN (13X18) | K,L,M,A,B This part replaces 09209-13003.

09209-13018

1
Out of stock

41

.NUT | K,L,M,A,B This part replaces 09150-06001.

09150-06010

1
Out of stock

42

PIN | K,L,M,A,B

09200-05001

1
Out of stock

43

WASHER | K,L,M,A,B This part replaces 08322-21068.

08322-01067

1
Out of stock

44

.COTTER PIN | K,L,M,A,B This part replaces 04111-20158.

04111-2015A

2
Out of stock
