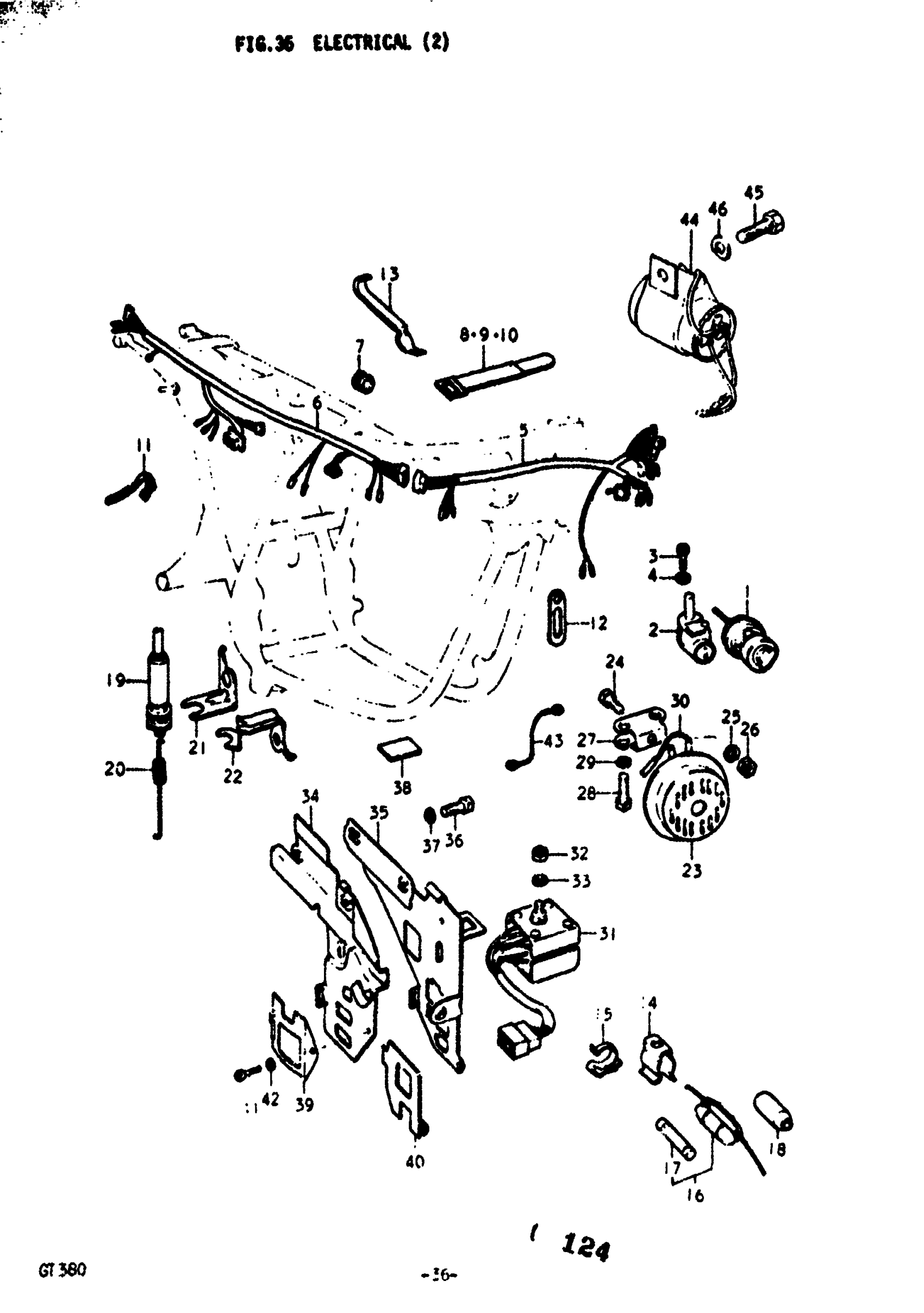

Suzuki GT380 (1977) ELECTRICAL (2) Diagram

#

Description
Price

1

SWITCH ASSY, IGNITION | K; TO 37110-33012

37110-33010

Unavailable

1

SW ASSY IGNITIO | L,M; TO 37110-33013 This part replaces 37110-33012.

37110-33017

Unavailable

1

SW ASSY IGNITIO | A; TO 37110-33015 This part replaces 37110-33013.

37110-33017

Unavailable

1

SW ASSY IGNITIO | B This part replaces 37110-33015.

37110-33017

Unavailable

2

LOCK ASSY, STEERING | K,L,M,A,B This part replaces 51900-33810.

51900-33811

Unavailable

3

SCREW | K,L,M,A,B This part replaces 02111-05257.

02112-05257

$1.49

4

LOCK WASHER | K,L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

5

WIRING HARNESS (1) | K

36610-33003

Unavailable

5

WIRING HARNESS (1) | L; TO 36610-33101 This part replaces 36610-33100.

36610-33103

Unavailable

5

WIRING HARNESS (1) | M; TO 36610-33102

36610-33101

Unavailable

5

WIRING HARNESS (1) | A; TO 36610-33103

36610-33102

Unavailable

5

WIRING HARNESS (1) | B

36610-33103

Unavailable

6

WIRING HARNESS (2) | K; TO 36620-33002 USED WITH 36870-36000

36620-33001

Unavailable

6

WIRING HARNESS (2) | L,M,A,B

36620-33002

Unavailable

7

GROMMET, WIRING HARNESS | K,L,M,A,B

36621-34000

Unavailable

8

CLAMP | K; L:140 TO 09407-18301L,M; L:140 TO 09407-18301A; L:140 TO 09407-18301 This part replaces 09407-14301.

09407-18302

$2.28

9

CLAMP | K; L:180L,M,A; L:180B; L:180 This part replaces 09407-18301.

09407-18302

$2.28

10

CLAMP | K; L:10 TO 09407-11302 This part replaces 09407-11301.

09407-18302

$2.28

10

CLAMP | L; L:110, BLACKM,A,B; L:110, BLACK This part replaces 09407-11302.

09407-18302

$2.28

11

CLAMP | K,L,M; L:149

09407-14401

$3.77

12

CLAMP | L,M,A,B This part replaces 09404-06402.

09404-06039

$1.74

13

BAND, WIRING HARNESS | M

33881-22200

Unavailable

14

HOLDER, FUSE CASE | K

36791-25001

Unavailable

15

HOLDER, FUSE CASE | L,M,A,B

36791-33100

Unavailable

16

CASE ASSY, FUSE | K,L,M; TO 36740-31211

36740-31210

Unavailable

16

FUSE CASE ASSY | A,B; Includes Item(s) 17 This part replaces 36740-31211.

36740-31212

Unavailable

17

FUSE | K,L,M,A,B; 20A

09481-20001

$2.93

18

BOOT | M,A,B

09287-10001

Unavailable

19

SWITCH, REAR BRAKE LAMP | K,L,M,A,B; FROM 37740-27051 This part replaces 37740-19051.

37740-48071

$19.18

20

SPRING | K,L,M,A,B

09443-06023

$2.92

21

BRACKET, BRAKE LAMP SWITCH | K

37752-33001

Unavailable

22

BRACKET, BRAKE LAMP SWITCH | L,M,A,B

37752-33002

Unavailable

23

HORN | K,L,M; TO 38500-31011

38500-31010

Unavailable

23

HORN | M; TO 38500-31012

38500-31011

Unavailable

23

HORN | M,B This part replaces 38500-31012.

38500-31646

Unavailable

23

HORN | A; FROM 38500-31642 This part replaces 38500-31644.

38500-31646

Unavailable

24

BOLT | K,L,M,A,B This part replaces 01122-08128.

01500-08127

$2.62

25

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

26

NUT | K,L,M,A,B This part replaces 08311-31088.

08310-00087

$2.13

27

BRACKET, HORN | K,L,M,A,B

38591-33000

Unavailable

28

BOLT | K,L,M,A,B This part replaces 01112-06128.

01500-06127

$1.97

29

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

30

LEAD WIRE, HORN | M

36870-31030

Unavailable

31

RECTIFIER ASSY | K; TO 32800-31021 This part replaces 32800-31020.

32800-31021

Unavailable

31

RECTIFIER | L,M,A,B

32800-31021

Unavailable

32

.NUT | K,L,M,A,B This part replaces 08311-11068.

08310-00067

$2.13

33

LOCK WASHER | K,L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

34

PLATE, ELECTRIC HOLDER | K

37900-33001

Unavailable

35

PLATE, ELECTRIC HOLDER | L,M,A,B

37900-33100

Unavailable

36

BOLT | K,L,M,A,B This part replaces 01112-06108.

01500-06107

$2.06

37

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

38

CUSHION, ELECTRIC HOLDER | L

33652-36000

$2.30

39

PLATE, COUPLER HOLDER | K

37911-33001

Unavailable

40

PLATE, COUPLER HOLDER | L,M,A,B

37911-33100

Unavailable

41

SCREW | K,L,M,A,B This part replaces 02111-04087.

02112-04087

$1.49

42

LOCK WASHER | K,L,M This part replaces 08321-21048.

08321-0104A

$1.84

43

LEAD WIRE | K,L,M,A,B This part replaces 36660-34000.

48528-78200

$5.82

43

LEAD WIRE, ENGINE (-) | L,M,A,B This part replaces 36852-26600.

36851-02331

Unavailable

44

TURN SIGNAL REL | K,L,M; TO 38610-32210 This part replaces 38610-15611.

38610-322V0

Unavailable

44

TURN SIGNAL REL | A,B This part replaces 38610-32210.

38610-322V0

Unavailable

45

BOLT | K,L,M,A,B This part replaces 01112-06128.

01500-06127

$1.97

46

LOCK WASHER | K,L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13
