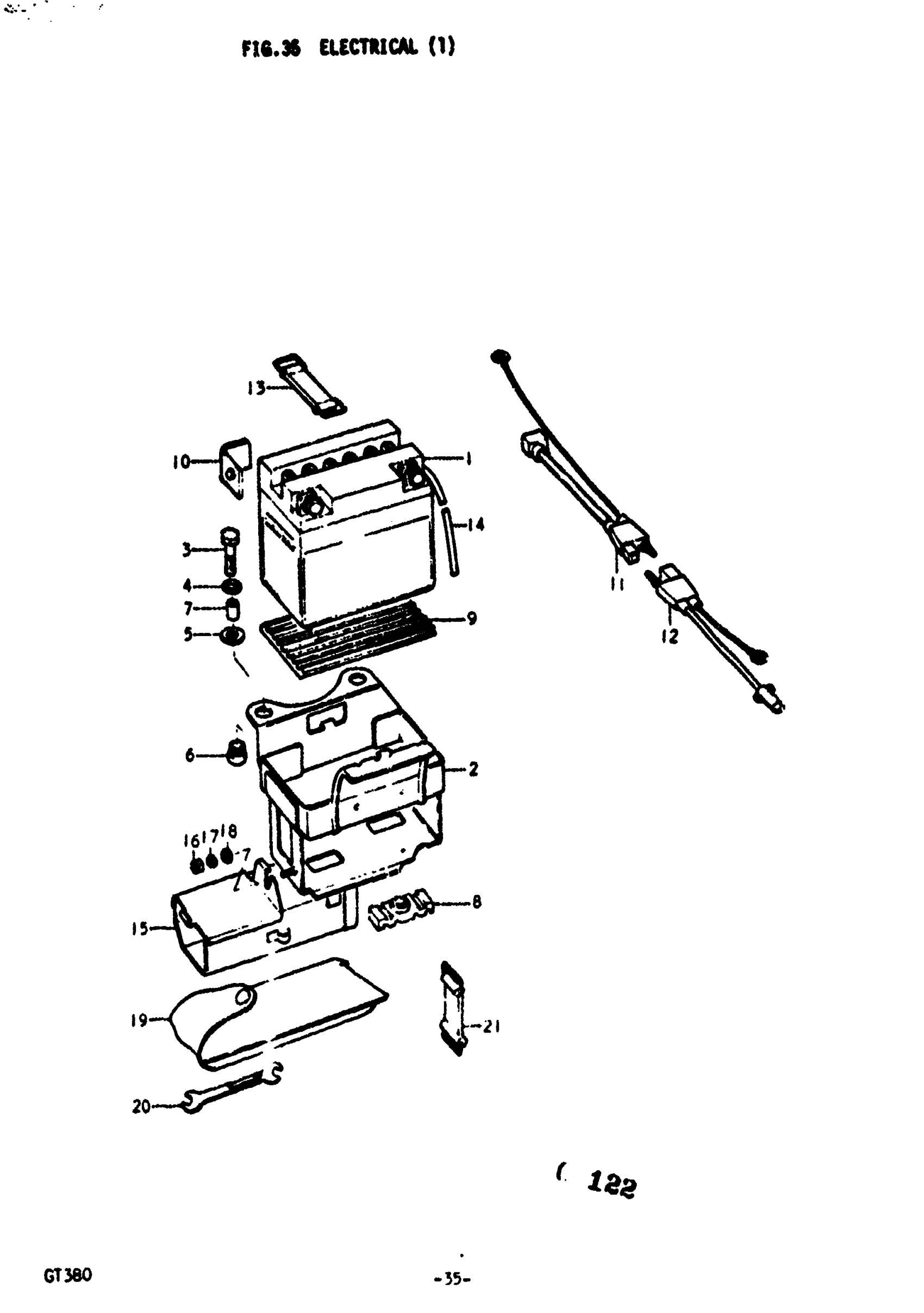

Suzuki GT380 (1977) ELECTRICAL (1) Diagram

#

Description
Price

1

BATTERY | K; 12N7-4A TO 33610-33120

33610-01320

Unavailable

1

YB7-A BATTERY(Y | L,M,A,B; 12N7-4A This part replaces 33610-33120.

33610-10311

$100.82

2

HOLDER, BATTERY | K,L,M,A,B

41540-33000

Unavailable

3

BOLT, REAR | K,L,M,A,B This part replaces 01112-06308.

01500-06307

$2.48

4

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

5

WASHER | K,L,M,A,B This part replaces 09160-06007.

09160-06084

$1.78

6

CUSHION | K,L,M,A,B

09320-08011

$3.54

7

SPACER (6.1X8X15.5) | K,L,M,A,B This part replaces 09180-06040.

09180-06251

$2.44

8

CUSHION | K,L,M,A,B

09320-08012

Unavailable

9

PROTECTOR, BATTERY | K,L,M,A,B

33651-31000

$18.02

10

CUSHION, REAR FENDER REAR | K,L,M,A,B This part replaces 33652-29100.

33651-37000

$4.48

11

LEAD WIRE, BATTERY | K,L,M,A,B

36860-15020

Unavailable

12

LEAD WIRE, BATTERY | L,M,A,B

36870-36000

Unavailable

13

BAND | K,L,M,A,B This part replaces 09462-00048.

09462-00048-XC0

Unavailable

14

TUBE, BATTERY EXHAUST | L,M; TO 33680-31003

33680-31002

Unavailable

14

HOSE,BATTERY EX | A,B This part replaces 33680-31003.

33680-16A11

$6.78

15

HOLDER, TOOL | K

41550-33000

Unavailable

15

HOLDER, TOOL | L,M,A,B

41550-33100

Unavailable

16

.NUT | K,L,M,A,B This part replaces 08311-11068.

08310-00067

$2.13

17

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

18

.WASHER | K,L,M,A,B This part replaces 08322-11068.

08322-0106B

$2.26

19

TOOL SET | K,L,M,A,B This part replaces 09800-00134.

09800-21033

$48.22

20

WRENCH, CONTACT POINT | K,L,M; OPT

09930-20111

Unavailable

21

BAND | K,L,M,A,B This part replaces 09462-00041.

09462-00041-XC0

Unavailable
