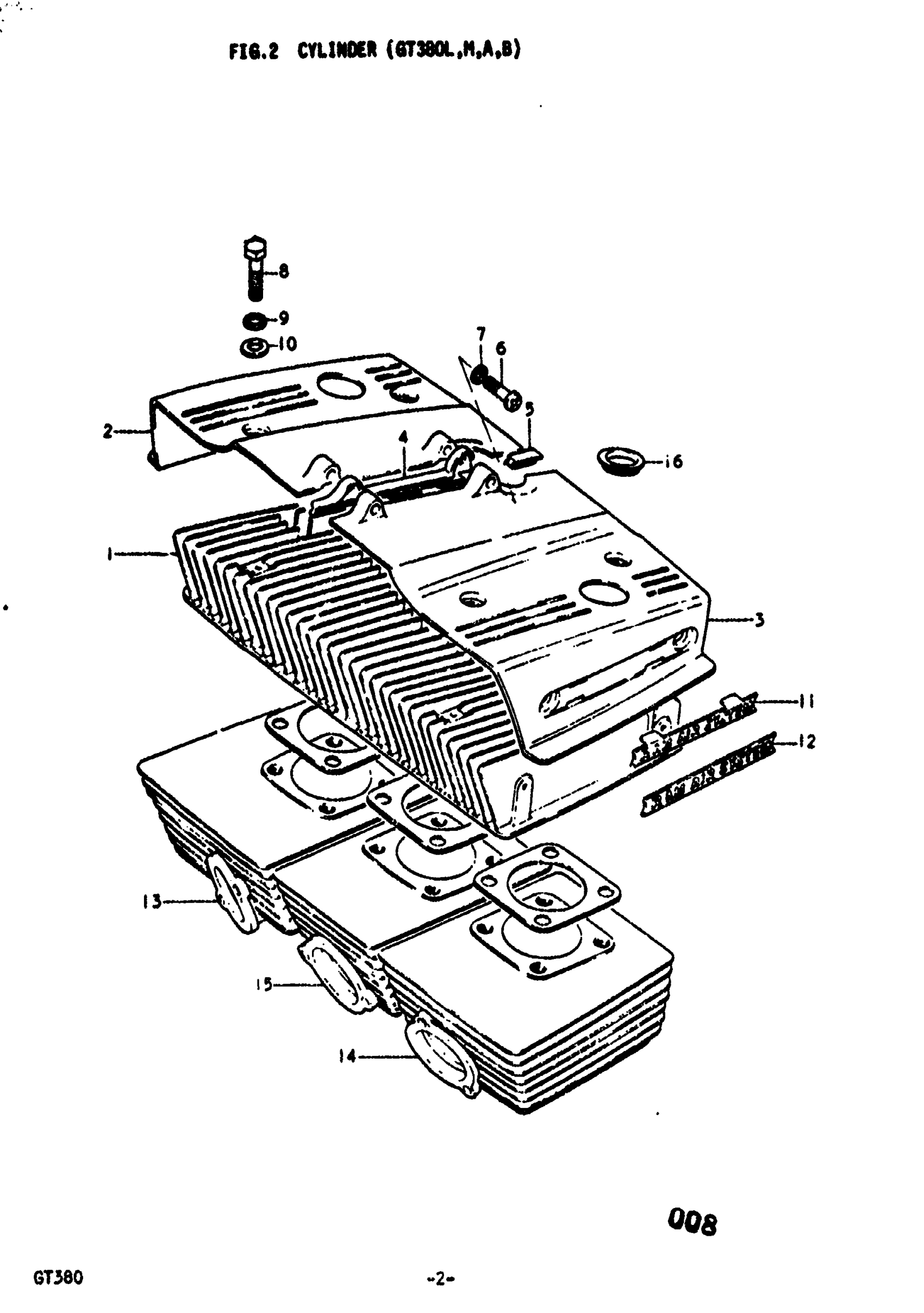

Suzuki GT380 (1977) CYLINDER (GT380L Diagram

#

Description
Price

1

CYLINDER HEAD | L,M,A,B

11111-33100

Unavailable

2

COVER, CYLINDER HEAD RH | L,M; TO 11171-33102 USED WITH 11144-33100 AND 11145-33100 This part replaces 11171-33100.

11171-33102

Unavailable

2

COVER, CYLINDER HEAD RH | A,B

11171-33102

Unavailable

3

COVER, CYLINDER HEAD LH | L,M; TO 11172-33101 This part replaces 11172-33100.

11172-33101

Unavailable

3

COVER, CYLINDER HEAD LH | A,B

11172-33101

Unavailable

4

GASKET, CYLINDER HEAD COVER | A,B

11144-33100

Unavailable

5

GASKET, CYLINDER HEAD COVER | A,B

11145-33100

Unavailable

6

SCREW | L,M,A,B

02112-06257

$1.78

7

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

$2.13

8

BOLT 6X25 | L,M This part replaces 01211-06257.

01204-06257

$2.07

8

SCREW | A,B

02112-06257

$1.78

9

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

$2.13

10

.WASHER | L,M This part replaces 08322-11068.

08322-0106B

$2.26

11

EMBLEM (RAM AIR SYSTEM) | L,M; RAN AIR SYSTEM TO 68261-33101 This part replaces 68261-33100.

68261-33101

Unavailable

12

EMBLEM, CYLINDER HEAD COVER | A,B; RAM AIR SYSTEM

68261-33101

Unavailable

13

CYLINDER, RH | L

11210-33100

Unavailable

13

CYLINDER, RH | M; TO 11210-33102 USED WITH 09108-08047 (6PCS) This part replaces 11210-33101.

11210-33102

Unavailable

13

CYLINDER, RH | A,B

11210-33102

Unavailable

14

CYLINDER, LH | L

11220-33100

Unavailable

14

CYLINDER, LH | M; TO 11220-33102 USED WITH 09108-08047 (6PCS) This part replaces 11220-33101.

11220-33102

Unavailable

14

CYLINDER, LH | A,B

11220-33102

Unavailable

15

CYLINDER, MIDDLE | L

11230-33100

Unavailable

15

CYLINDER, MIDDLE | M; TO 11230-33102 USED WITH 09108-08047 (6PCS) This part replaces 11230-33101.

11230-33102

Unavailable

15

CYLINDER, MIDDLE | A,B

11230-33102

Unavailable

16

RING, SPARK PLUG | A,B

33545-34000

Unavailable
