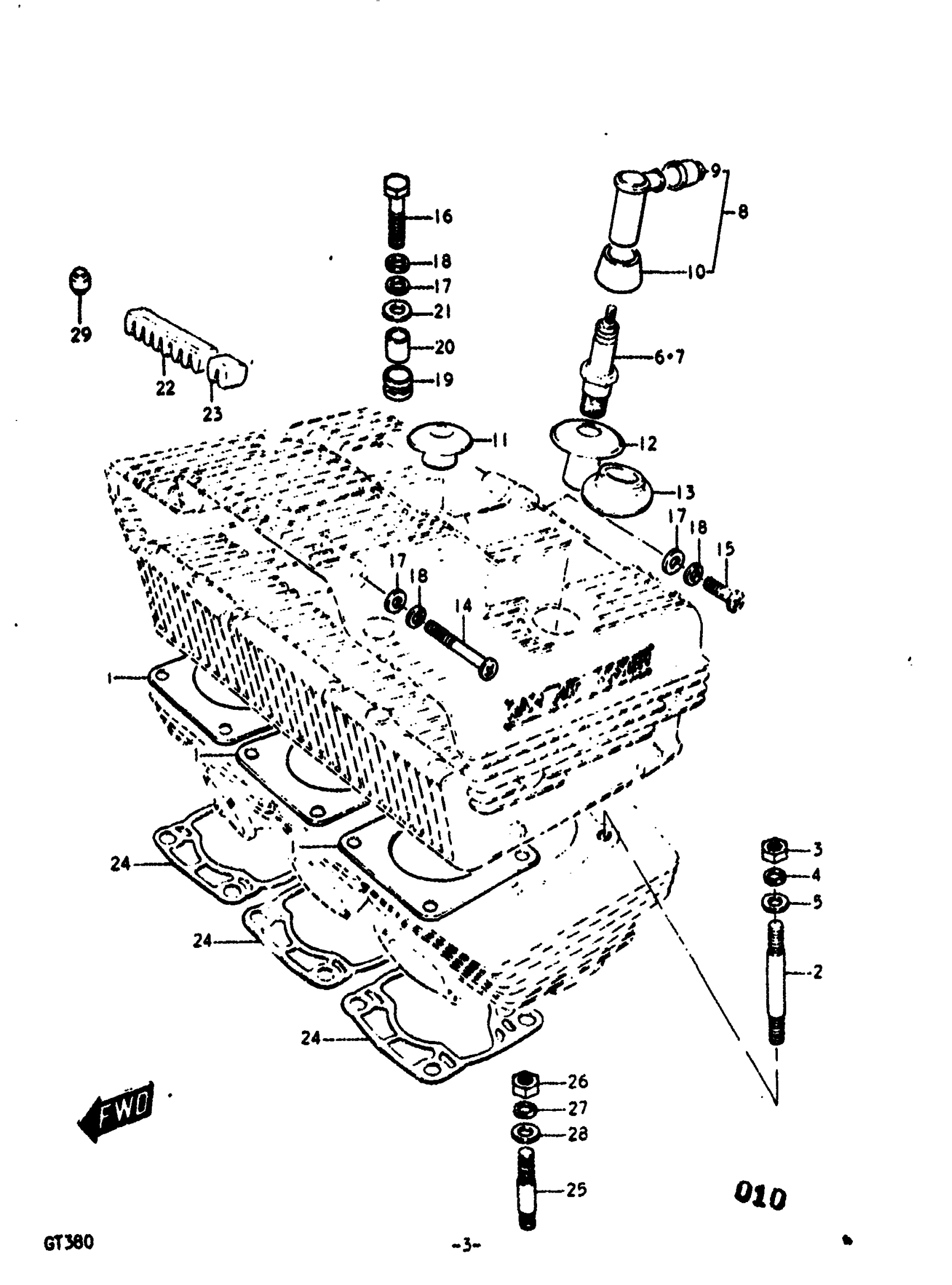

Suzuki GT380 (1977) CYLINDER FITTINGS Diagram

#

Description
Price

1

GASKET,CYL HEAD | K,L,M,A,B This part replaces 11141-33080.

11141-33090

Unavailable

2

STUD BOLT | K,L,M,A,B This part replaces 01421-10458.

01421-10457

$3.91

3

NUT | K,L,M,A,B This part replaces 08312-12108.

08310-00107

$2.19

4

LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84

5

WASHER | K,L,M,A,B This part replaces 08322-11108.

08322-01107

$2.15

6

SPARK PLUG (NGK,BR7ES) | k; B-7ES, NGK FROM 09482-00055 This part replaces 09482-00089.

09482-00117

$3.03

6

SPARK PLUG | L,M,A,B; B-8ES, NGK FROM 09482-00056

09482-00091

$3.01

7

SPARK PLUG | K; W22ES, ND FROM 09482-00046

09482-00090

Unavailable

7

SPARK PLUG W24E | L,M,A,B; W24ES, ND FROM 09482-00047 This part replaces 09482-00092.

09482-00247-111

Unavailable

8

CAP ASSY, SPARK PLUG | K,L,M; TO 33500-69810

33503-10801

Unavailable

8

CAP SET,SPARK P | A,B; Includes Item(s) 9 - 10 This part replaces 33500-69810.

33500-69811

$22.48

9

SEAL, SPARK PLUG | A,B

33541-69010

$4.37

10

SEAL,HIGH TENSION CORD (SIDE) | K,L,M,A,B This part replaces 33542-98000.

33542-38B00

$4.34

11

BOOT, PLUG CAP MIDDLE | K; TO 33543-33010

33543-33001

Unavailable

11

RING, SPARK PLUG CAP | L,M; TO 33545-34000 USED WITH 33541-69010 (3PCS) This part replaces 33543-33010.

33545-34000

Unavailable

12

BOOT, PLUG CAP RH & LH | K; TO 33544-33010

33544-33001

Unavailable

13

RING, SPARK PLUG CAP | L,M; TO 33545-34000 USED WITH 33541-69010 (3PCS) This part replaces 33543-33110.

33545-34000

Unavailable

14

SCREW | K

02112-06907

$3.16

15

SCREW | KL,M,A,B

02112-06257

$1.78

16

BOLT 6X25 | KL,M,A,B This part replaces 01211-06257.

01204-06257

$2.07

17

.WASHER | KK,L,M This part replaces 08322-11068.

08322-0106B

$2.26

18

LOCK WASHER | KL,M,A This part replaces 08321-21068.

08321-01067

$2.13

19

CUSHION | K,L,M,A,B

09320-08015

$3.58

20

SPACER (6.1X8X12) | K,L,M,A,B This part replaces 09180-06035.

09180-06249

$2.10

21

WASHER | KL,M,A,B This part replaces 09160-06031.

09160-06125

$1.91

22

PAD, CYLINDER HEAD RUBBER | K,L,M,A,B

11152-33000

Unavailable

23

PAD, CYLINDER HEAD RUBBER | K

11153-33000

Unavailable

24

NO DESCRIPTION AVAILABLE | K,L,M,A,B This part replaces 11241-33000.

11241-33001

Unavailable

25

BOLT,STUD | K,L,M,A,B This part replaces 01421-10258.

01421-1025B

$3.16

26

NUT | K,L,M,A,B This part replaces 08312-12108.

08310-00107

$2.19

27

LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84

28

WASHER | K,L,M,A,B This part replaces 08322-11108.

08322-01107

$2.15

29

PAD, CYLINDER RUBBER | K,L,M,A,B

11252-34000

Unavailable
