Partiron

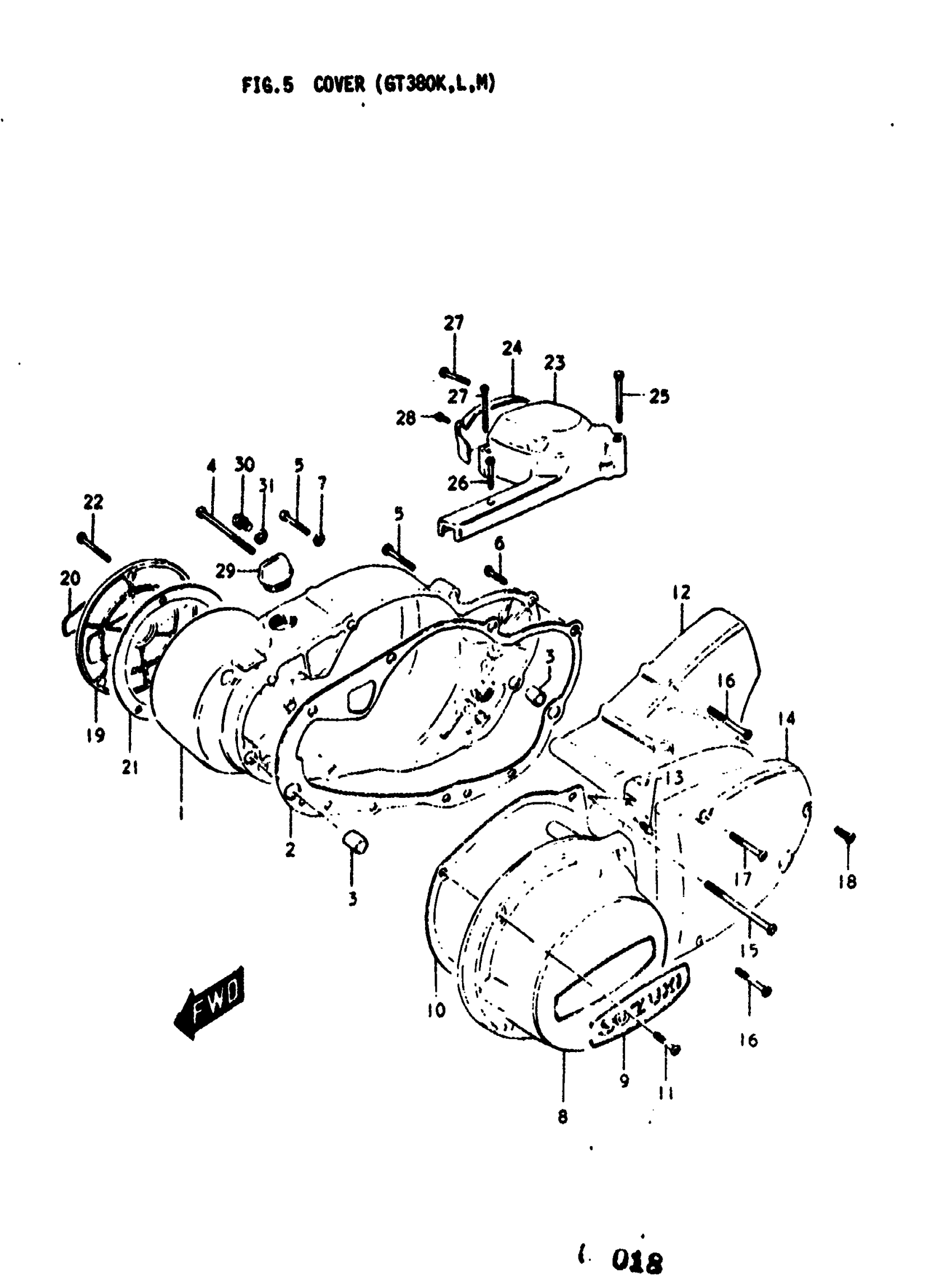

Suzuki GT380 (1977) COVER (GT380K Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | K; TO 11341-33601 This part replaces 11341-33600.

11341-33602

Unavailable

1

NO DESCRIPTION AVAILABLE | L,M This part replaces 11341-33601.

11341-33602

Unavailable

2

GASKET,CLUTCH C | K,L,M This part replaces 11482-33000.

11482-33001

Unavailable

3

PIN, A | KL,M

09206-13004

$2.40

3

PIN | L,M This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW | K,L,M; Includes Item(s) 5 This part replaces 02112-06808.

02112-06807

$2.57

5

SCREW | K,L,M This part replaces 02112-06358.

02112-06357

$1.78

6

SCREW | K,L,M This part replaces 02112-06208.

02112-06207

$1.78

7

WASHER (6.5X18X2) | K,L,M; 6.5x18x2 This part replaces 09160-06013.

09160-06121

$3.38

8

COVER, GENERATOR | K,L,M

11351-33601

Unavailable

9

EMBLEM, GENERATOR COVER | K,L,M

68233-33000

Unavailable

10

GASKET, GENERATOR COVER | K,L,M

11483-33000

Unavailable

11

SCREW | K,L,M This part replaces 02112-06258.

02112-06257

$1.78

12

COVER, ENGINE SPROCKET INNER | K,L,M This part replaces 11361-33600.

11361-33601

Unavailable

13

NIPPLE, GREASE | K,L,M

08351-11009

$7.51

14

COVER, ENGINE SPROCKET OUTER | K,L,M

11371-33600

Unavailable

15

SCREW | K,L,M This part replaces 02112-06858.

02112-06857

$2.62

16

SCREW (6X45) | K,L,M This part replaces 02112-06458.

02112-06457

$1.78

17

SCREW | K,L,M This part replaces 02111-05357.

02112-05357

$1.49

18

SCREW | K,L,M This part replaces 02112-05168.

02112-05167

$1.97

19

CAP, CONTACT BREAKER | K; FROM 11300-34000 TO 11300-34850

11300-34830

Unavailable

19

CAP, CONTACT BREAKER | L,M; FROM 11381-33600 This part replaces 11300-34851.

11381-33600

Unavailable

20

EMBLEM, CONTACT BREAKER CAP | K,L,M

68233-34000

Unavailable

21

GASKET, CONTACT BREAKER CAP | K,L,M

11491-33000

$5.16

22

SCREW | K,L,M This part replaces 02111-05458.

02112-05457

$1.86

23

COVER, OIL PUMP (1) | K,L,M

11411-33000

Unavailable

24

COVER, OIL PUMP (2) | K,L,M

11412-33600

Unavailable

25

BOLT 5X45 | K,L,M This part replaces 01111-05458.

01550-05457

$2.47

26

BOLT | K,L,M This part replaces 01112-05258.

01500-0525A

$1.77

27

SCREW | K,L,M This part replaces 02111-05357.

02112-05357

$1.49

28

SCREW | K,L,M This part replaces 02112-05168.

02112-05167

$1.97

29

PLUG SET | K,L This part replaces 09259-20003.

09200-20811

$4.02

29

PLUG | M; TO 09259-19001 This part replaces 09259-19002.

09259-19005

$2.98

30

SCREW (6X10) | K,L,M This part replaces 09128-06004.

09128-06044

$1.49

31

GASKET | K,L,M

09168-06001

$1.49
