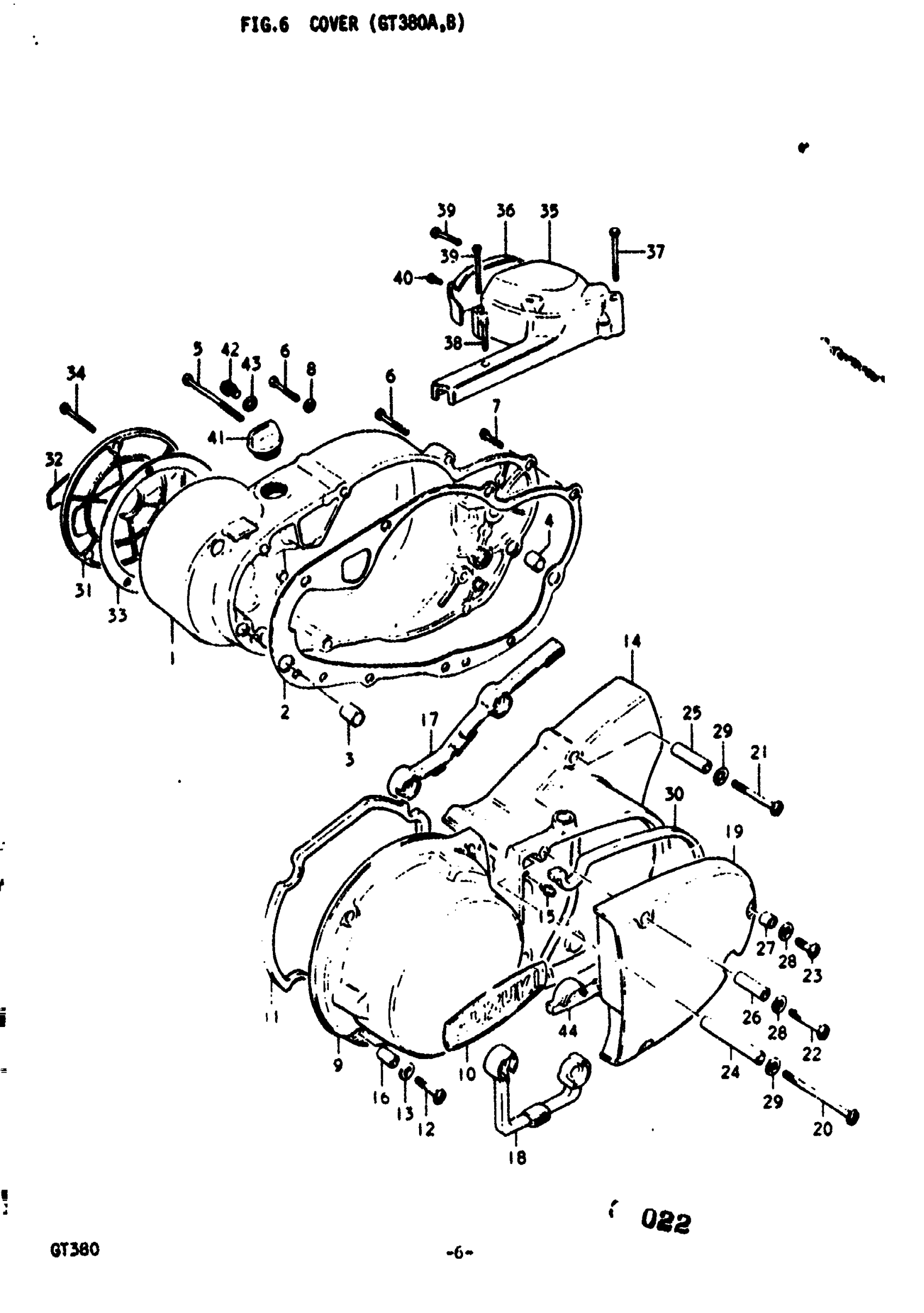

Suzuki GT380 (1977) COVER (GT380A Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A,B This part replaces 11341-33601.

11341-33602

Unavailable

2

GASKET,CLUTCH C | A,B This part replaces 11482-33000.

11482-33001

Unavailable

3

PIN | A

09206-13004

$2.40

4

PIN | AB This part replaces 09206-13001.

04211-13189

$2.19

5

SCREW | A,B This part replaces 02112-06808.

02112-06807

$2.57

6

SCREW | A,B This part replaces 02112-06358.

02112-06357

$1.78

7

SCREW | A,B This part replaces 02112-06208.

02112-06207

$1.78

8

WASHER (6.5X18X2) | A,B; 6.5x18x2 This part replaces 09160-06013.

09160-06121

$3.38

9

COVER, GENERATOR | A,B

11351-33602

Unavailable

10

EMBLEM | A,B

68233-33000

Unavailable

11

GASKET, GENERATOR COVER | A,B

11483-33001

Unavailable

12

SCREW, BODY COVER UPPER | A This part replaces 02141-06258.

09125-06055

$2.34

12

SCREW | B This part replaces 02112-06258.

02112-06257

$1.78

13

WASHER | A,B This part replaces 08322-21068.

08322-01067

$2.13

14

COVER, ENGINE SPROCKET INNER | A,B

11361-33601

Unavailable

15

GREASE NIPPLE | A,B

08351-11009

$7.51

16

SPACER | A,B This part replaces 09180-06062.

09180-06268

$2.19

17

CUSHION, A | A,B

11484-33000

Unavailable

18

CUSHION, B | A,B

11485-33000

Unavailable

19

COVER, ENGINE SPROCKET OUTER | A,B

11371-33601

Unavailable

20

SCREW | A

02141-06858

Unavailable

20

SCREW | B This part replaces 02112-06858.

02112-06857

$2.62

21

SCREW | A This part replaces 02141-06458.

02142-06457

$2.72

21

SCREW (6X45) | B This part replaces 02112-06458.

02112-06457

$1.78

22

SCREW | A This part replaces 02141-05358.

02142-05357

$2.72

22

SCREW | B This part replaces 02111-05357.

02112-05357

$1.49

23

SCREW | A This part replaces 02141-05167.

02142-05167

$1.49

23

SCREW | B This part replaces 02112-05168.

02112-05167

$1.97

24

SPACER, A | A,B; 6x9x73

09180-06063

Unavailable

25

SPACER, B | A,B; 6x9x33

09180-06064

Unavailable

26

SPACER, C | A,B; 5x8x25.5

09180-05011

Unavailable

27

SPACER | A,B; 5x8x7.5 This part replaces 09180-05012.

09180-05047

$2.12

28

WASHER | A,B This part replaces 08322-21058.

08322-01057

$2.13

29

WASHER | A,B This part replaces 08322-21068.

08322-01067

$2.13

30

CUSHION | A,B

11486-33000

Unavailable

31

CAP, CONTACT BREAKER | A; TO 11381-34851

11381-33600

Unavailable

31

CAP, CONTACT BREAKER | B This part replaces 11300-34851.

11381-33600

Unavailable

32

EMBLEM | A,B

68233-34000

Unavailable

33

GASKET, CONTACT BREAKER CAP | A,B

11491-33000

$5.16

34

SCREW | A,B This part replaces 02111-05458.

02112-05457

$1.86

35

COVER, OIL PUMP (1) | A,B

11411-33000

Unavailable

36

COVER, OIL PUMP (2) | A,B

11412-33600

Unavailable

37

BOLT 5X45 | A,B This part replaces 01111-05458.

01550-05457

$2.47

38

BOLT | A,B This part replaces 01112-05258.

01500-0525A

$1.77

39

SCREW | A,B This part replaces 02111-05357.

02112-05357

$1.49

40

SCREW | A,B This part replaces 02112-05168.

02112-05167

$1.97

41

PLUG | A; FROM 09259-19002 This part replaces 09259-19001.

09259-19005

$2.98

41

PLUG SET | B This part replaces 09259-20003.

09200-20811

$4.02

42

SCREW (6X10) | A,B This part replaces 09128-06004.

09128-06044

$1.49

43

GASKET | A,B

09168-06001

$1.49

44

CUSHION | A,B

11487-33000

Unavailable
