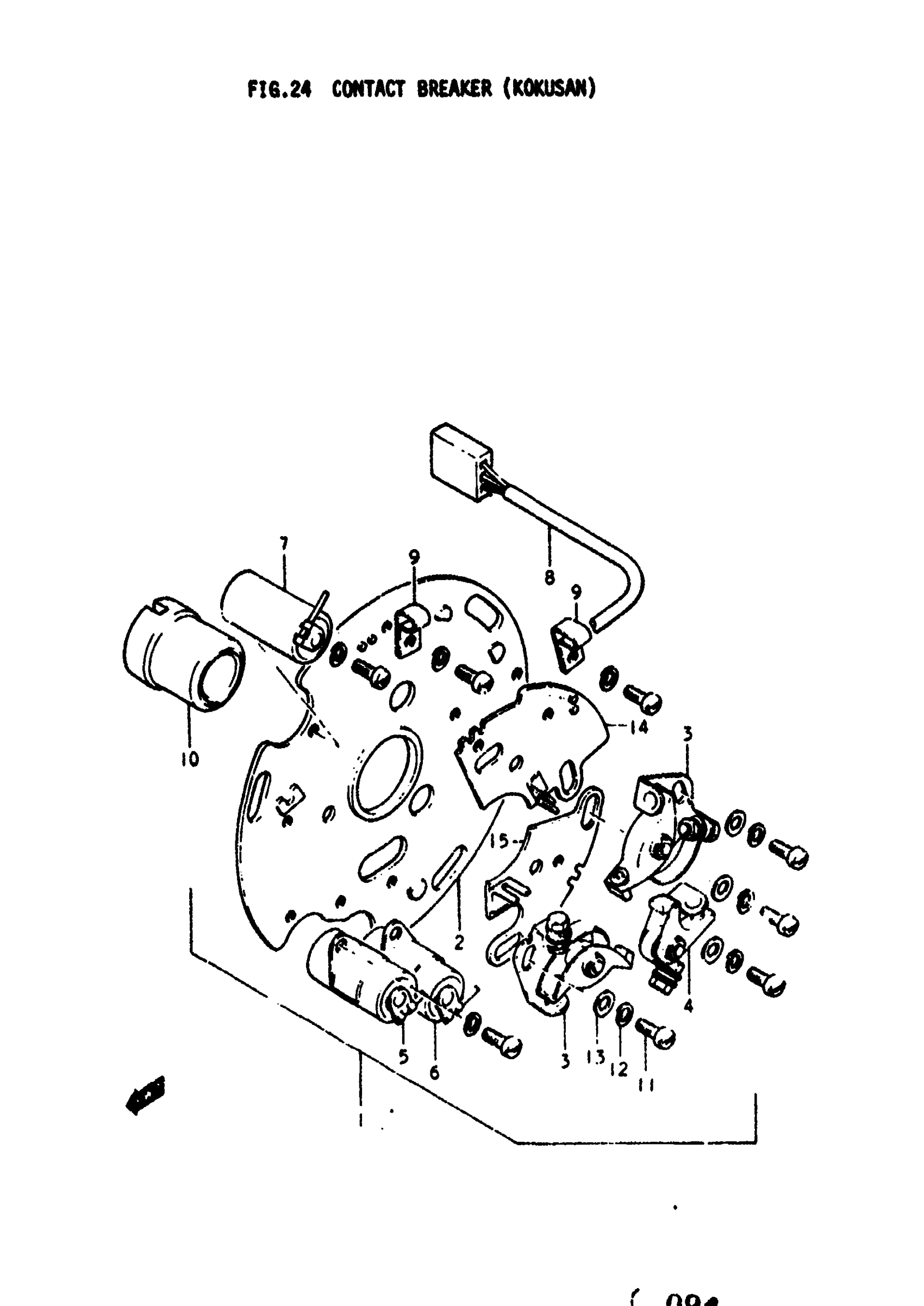

Suzuki GT380 (1977) CONTACT BREAKER (KOKUSAN) Diagram

#

Description
Price

1

BREAKER ASSY, CONTACT | K,L,M,A,B; Includes Item(s) 2 - 15

33100-33020

Unavailable

2

BASE, POINT | K,L,M,A,B

33180-33020

Unavailable

3

POINT ASSY, LH & RH | K,L,M,A,B

31440-15020

Unavailable

4

POINT ASSY, CENTER | K,L,M,A,B

33172-33020

Unavailable

5

CONDENSER, LH | K,L,M,A,B

33261-33020

Unavailable

6

CONDENSER, CENTER | K,L,M,A,B

33262-33020

Unavailable

7

CONDENSER, RH | K,L,M,A,B

33263-33020

Unavailable

8

LEAD WIRE | K,L,M,A,B

33340-33020

Unavailable

9

CLAMP, LEAD WIRE | K,L,M,A,B

33346-33020

Unavailable

10

CAM, CONTACT BRAKER | K,L,M,A,B

33122-33020

Unavailable

11

SCREW | K,L,M,A,B This part replaces 02111-04067.

02112-0406B

$1.55

12

LOCK WASHER | K,L,M,A,B This part replaces 08321-21048.

08321-0104A

$1.84

13

WASHER | K,L,M,A,B This part replaces 08322-21048.

08322-01047

$1.86

14

PLATE, CONTACT POINT RH | K,L,M,A,B

31463-33020

Unavailable

15

PLATE, CONTACT POINT LH | K,L,M,A,B

33173-33020

Unavailable
