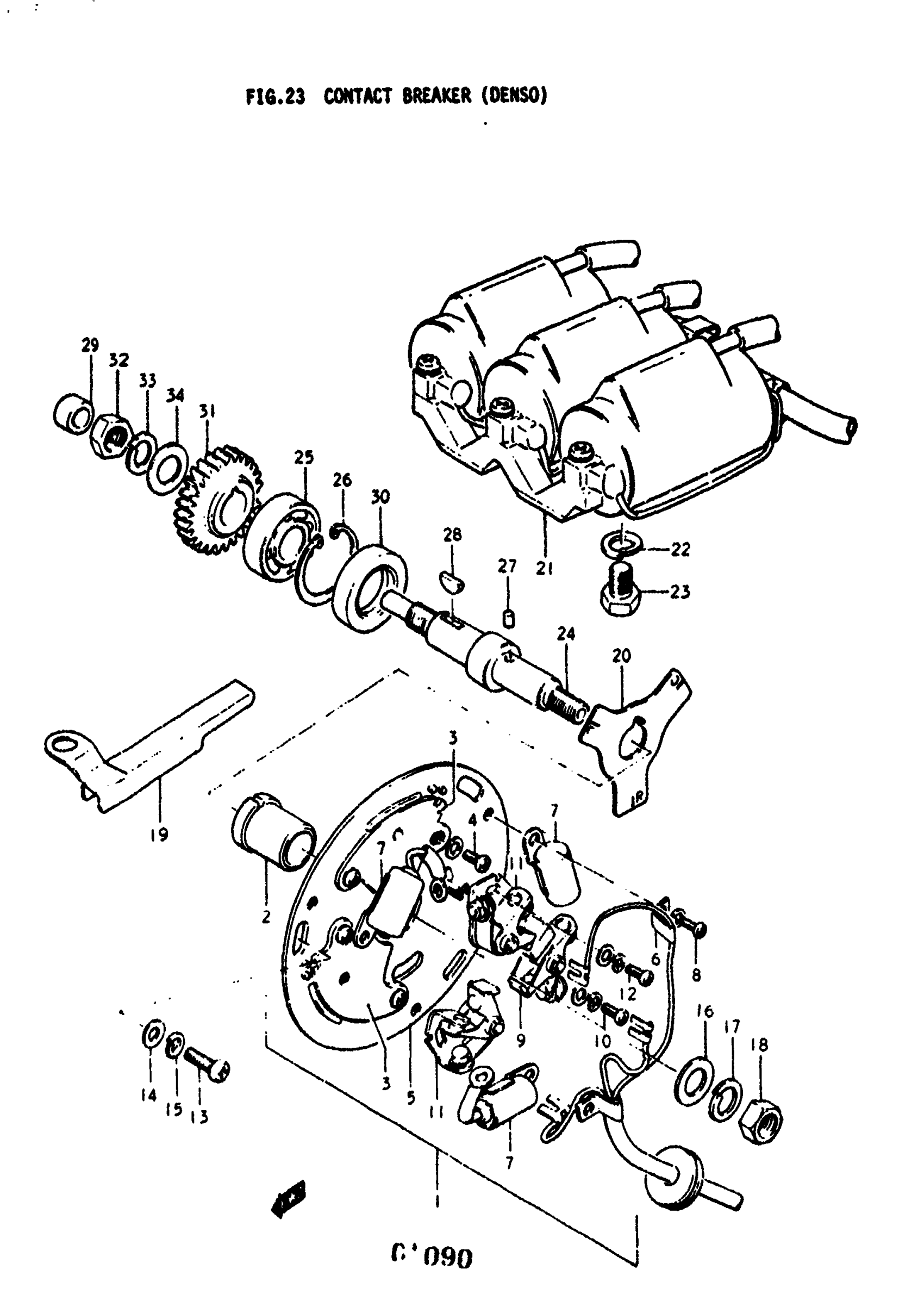

Suzuki GT380 (1977) CONTACT BREAKER (DENSO) Diagram

#

Description
Price

1

BREAKER ASSY, CONTACT | K,L,M,A,B; Includes Item(s) 2 - 12

33100-33010

Unavailable

2

CAM | K,L,M,A,B

33122-33010

Unavailable

3

SHIFT PLATE, CONTACT POINT | K,L,M,A,B

33173-33010

Unavailable

4

SCREW | K,L,M,A,B This part replaces 02111-04067.

02112-0406B

$1.55

5

STATOR ASSY, BREAKER | K,L,M,A,B

33180-33010

Unavailable

6

CLAMP, LEAD WIRE | K,L,M

32371-31010

Unavailable

7

CONDENSER | K,L,M,A,B

33261-33010

Unavailable

8

SCREW 4X40 | K,L,M,A,B This part replaces 02111-04048.

02112-04047

$1.49

9

POINT ASSY | K,L,M,A,B

33160-33010

Unavailable

10

SCREW | K,L,M,A,B This part replaces 02111-04067.

02112-0406B

$1.55

11

POINT ASSY | K,L,M,A,B

33170-33010

Unavailable

12

SCREW | K,L,M,A,B This part replaces 02111-04067.

02112-0406B

$1.55

13

SCREW | K,L,M,A,B

09125-05024

$1.72

14

WASHER | K,L,M,A,B This part replaces 08322-11058.

08322-01057

$2.13

15

LOCK WASHER | K,L,M This part replaces 08321-21058.

08321-0105A

$1.84

16

WASHER | K,L,M,A,B This part replaces 08322-11108.

08322-01107

$2.15

17

LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84

18

NUT | K,L,M,A,B This part replaces 08312-12108.

08310-00107

$2.19

19

PLATE, LEAD WIRE | K,L,M,A,B

33280-33000

Unavailable

20

PLATE, IGNITION TIMING | K,L,M,A,B

33370-31001

Unavailable

21

COIL, LIGNITION | K,L,M,A,B; DENSO

33410-31010

Unavailable

21

COIL, CONTACT BREAKER | K,L,M,A,B; KOKUSAN

33410-33020

Unavailable

22

.LOCK WASHER | K,L,M This part replaces 08321-21088.

08321-01087

$2.13

23

BOLT | K,L,M,A,B This part replaces 01122-08128.

01500-08127

$2.62

24

SHAFT, BREAKER CAM | K,L,M; TO 12555-33001

12711-33000

Unavailable

24

SHAFT, BREAKER CAM | A,B

12555-33001

Unavailable

25

BEARING (15X35X11) | K,L,M,A,B This part replaces 08113-62020.

08113-62027

$14.40

26

CIRCLIP | K,L,M,A,B This part replaces 08331-21358.

08331-41359

$2.26

27

PIN | K,L,M,A,B This part replaces 06211-03052.

04221-03059

$1.72

28

KEY | K,L,M,A,B

08341-31039

$1.89

29

BUSHING | K,L,M,A,B; 8x14x10

09300-08011

Unavailable

30

OIL SEAL | K,L,M,A,B; 18.9x35x7

09283-20024

$5.11

31

GEAR, DRIVEN | K,L,M,A,B; FROM 12713-33032

12571-33032

Unavailable

32

NUT | K,L,M,A,B This part replaces 08312-12108.

08310-00107

$2.19

33

LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84

34

WASHER | K,L,M,A,B This part replaces 08322-21108.

08322-01107

$2.15
