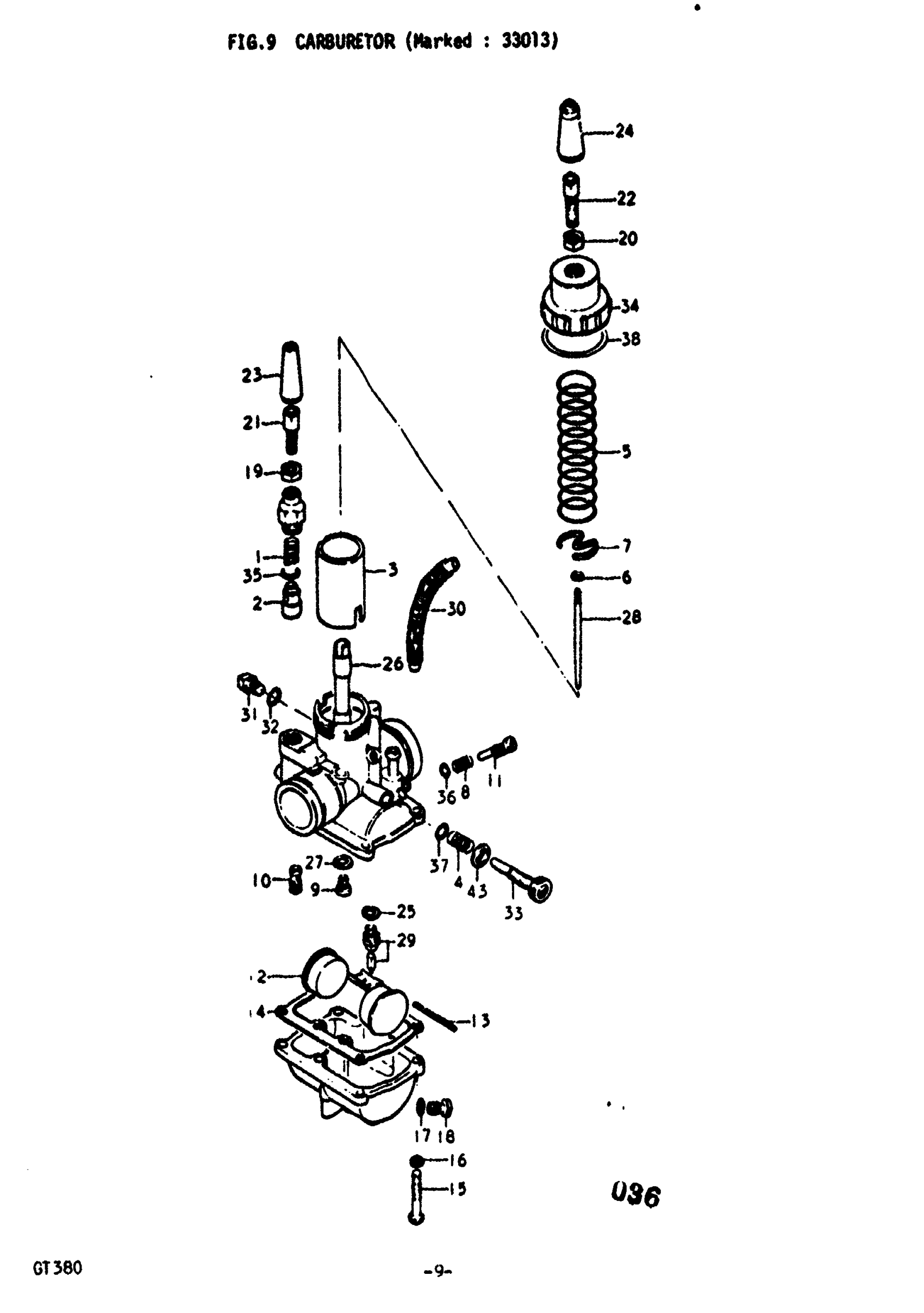

Suzuki GT380 (1977) CARBURETOR (MARKED : 33013) Diagram

#

Description
Price

CARBURETOR ASSY | TO 13201-33014 USED WITH 13202-33014 AND 13203-33014 This part replaces 13201-33013.

13201-33014

Unavailable

CARBURETOR ASSY | TO 13201-33014 USED WITH 13202-33014 AND 13203-33014 This part replaces 13202-33013.

13202-33014

Unavailable

CARBURETOR ASSY | TO 13203-33014 USED WITH 13201-33014 AND 13202-33014; Includes Item(s) 1 - 38 This part replaces 13203-33013.

13203-33014

Unavailable

1

SPRING, STARTER LEVER

13417-18630

$6.77

2

VALVE, STARTER

13411-01010

$20.82

3

VALVE, THROTTLE LH

13551-33012

Unavailable

3

VALVE, THROTTLE MIDDLE & RH

13561-33012

Unavailable

4

SPRING, THROTTLE ADJUSTER

13268-01010

$4.11

5

SPRING, THROTTLE RETURN

13573-34010

Unavailable

6

CLIP, NEEDLE

13394-10010

$6.15

7

SEAT, THROTTLE VALVE SPRING

13581-28010

$8.97

8

SPRING, PILOT AIR SCREW

13268-01010

$4.11

9

JET, MAIN (180) | #80 FROM 09491-80005 This part replaces 09491-80007.

09491-80008

Unavailable

9

JET, MAIN (87.5) | #87.5 OPT This part replaces 09491-87001.

09491-87005

$12.38

9

NO DESCRIPTION AVAILABLE | #75 OPT This part replaces 09491-75005.

09491-75009

Unavailable

10

JET, PILOT (22.5) | #22.5 This part replaces 09492-22002.

09492-22006

$12.38

11

SCREW, PILOT AIR

13269-15011

Unavailable

12

FLOAT

13252-11010

$28.07

13

.PIN, FLOAT

13254-01010

$3.41

14

GASKET, FLOAT CHAMBER

13251-11010

$5.14

15

SCREW This part replaces 02111-04168.

02112-0416A

$1.24

16

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

17

GASKET, DRAIN PLUG

13249-05010

$1.93

18

PLUG, DRAIN

13247-05010

$4.81

19

NUT, CABLE ADJUSTER

13661-16600

$4.37

20

NUT, CABLE ADJUSTER

13661-31010

Unavailable

21

ADJUSTER This part replaces 13577-03010.

13577-48110

$9.37

22

ADJUSTER, CABLE

13577-31010

Unavailable

23

BOOT, CABLE ADJUSTER

13681-16601

$7.78

24

BOOT, CABLE ADJUSTER

13681-31010

Unavailable

25

GASKET, VALVE SEAT

13392-58600

$1.85

26

JET, NEEDLE | 0-4

09494-00094

Unavailable

27

GASKET, NEEDLE JET

13382-03110

$2.80

28

NEEDLE, JET | 4DH7-2

13383-33010

$22.72

29

VALVE,NEEDLE This part replaces 13370-28010.

13370-48051

$70.88

30

HOSE, MIDDLE CARBURETOR BOOST | TO 13683-31610

44390-15601

Unavailable

31

PLUG, ADJUSTER HOLE | FROM 13664-31010

13664-18654

$10.15

32

GASKET This part replaces 13392-04010.

13663-31010

$2.80

33

ADJUSTER, THROTTLE VALVE

13267-31010

Unavailable

34

TOP, MIXING CHAMBER

13261-33010

Unavailable

35

O RING, STARTER VALVE

13295-34010

Unavailable

36

O RING, PILOT AIR SCREW

13295-33010

$4.09

37

O RING This part replaces 13294-30010.

13278-02340

$1.91

38

O RING, CHAMBER CAP

13295-34600

Unavailable
