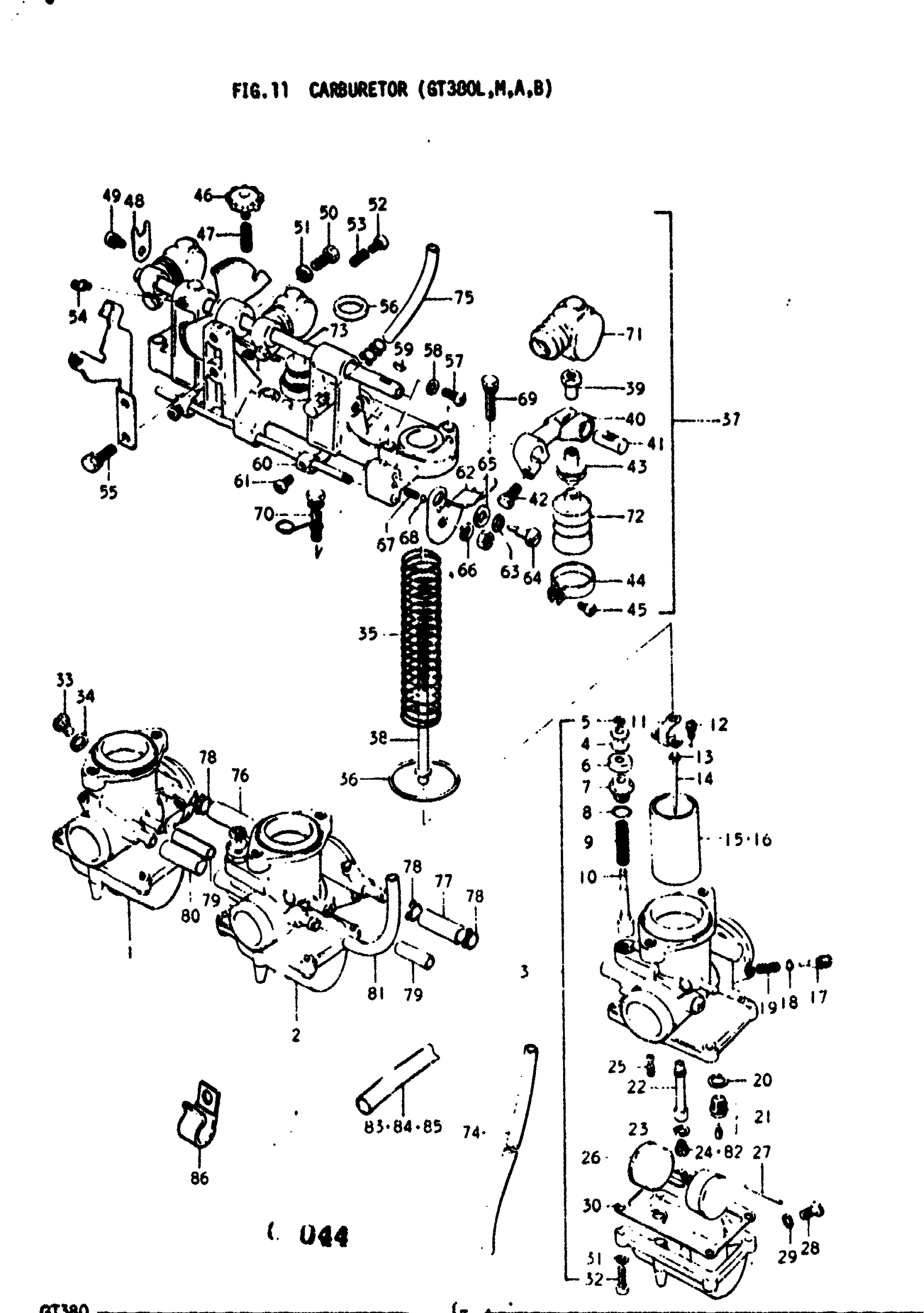

Suzuki GT380 (1977) CARBURETOR (GT380L Diagram

#

Description
Price

0

CARBURETOR ASSY | L,M,A,B; FROM 13200-33110; Includes Item(s) 1 - 81

13200-33111

Unavailable

1

CARBURETOR, RH | L,M,A,B; FROM 13201-33110

13201-33111

Unavailable

2

CARBURETOR, MIDDLE | L,M,A,B; FROM 13202-33110

13202-33111

Unavailable

3

CARBURETOR, LH | L,M,A,B; FROM 13203-33110

13203-33111

Unavailable

4

RING | L,M,A,B

13424-33110

$5.44

5

CLIP | L,M,A,B

13617-33110

Unavailable

6

CAP | L,M,A,B

13682-09210

$2.92

7

CAP | L,M,A,B

13418-33110

Unavailable

8

O RING | L,M,A,B This part replaces 13295-15010.

09280-08014

$1.89

9

SPRING | L,M,A,B

13417-18630

$6.00

10

VALVE, STARTER | L,M,A,B

13411-33110

Unavailable

11

BRACKET | L,M,A,B

13398-33110

Unavailable

12

SCREW | L,M; TO 02111-03067 This part replaces 13601-03078.

02112-0306B

$1.59

12

SCREW | A,B This part replaces 02111-03067.

02112-0306B

$1.59

13

CLIP, NEEDLE | L,M,A,B

13394-10010

$5.45

14

NEEDLE, JET | L,M,A,B; 4DH7-2

13383-33010

$20.13

15

VALVE, THROTTLE LH & M | L,M,A,B; CA:3.0

13561-33110

Unavailable

16

VALVE, THROTTLE RH | L,M,A,B

13551-33110

Unavailable

17

SCREW | L,M,A,B; FROM 13269-31011

13269-15011

Unavailable

18

O RING | L,M,A,B

13295-33010

$4.48

19

SPRING | L,M,A,B

13268-01010

$5.28

20

GASKET, NEEDLE VALVE | L,M; TO 13392-58600 This part replaces 13392-18110.

13392-58600

$1.82

20

GASKET | A,B

13392-58600

$1.82

21

VALVE ASSY, NEEDLE | L,M,A,B This part replaces 13370-34010.

13370-30651

Unavailable

22

JET, NEEDLE | L,M,A,B; 0-2

09494-00075

Unavailable

23

WASHER | L,M,A,B

13382-03110

$2.80

24

JET, MAIN (180) | L,M,A,B; #80 FROM 09491-80005 This part replaces 09491-80007.

09491-80008

Unavailable

25

JET, PILOT (25) | L,M,A,B; #25 This part replaces 09492-25003.

09492-25005

$9.55

26

FLOAT | L,M,A,B

13252-11010

$24.87

27

.PIN, FLOAT | L,M,A,B

13254-01010

$3.62

28

SCREW | L,M,A,B; FROM 13247-31010

13247-05010

$5.11

29

GASKET | L,M,A,B

13249-05010

$1.98

30

GASKET, FLOAT CHAMBER | L,M; TO 13251-33110 This part replaces 13251-18010.

13251-33110

$9.03

30

GASKET, FLOAT CHAMBER | A,B

13251-33110

$9.03

31

LOCK WASHER | L,M,A,B This part replaces 08321-21048.

08321-0104A

$1.84

32

SCREW | L,M,A,B This part replaces 02111-04168.

02112-0416A

$1.49

33

PLUG | L,M,A,B; FROM 13664-31010

13664-18654

$8.98

34

WASHER | L,M,A,B

13663-31010

$2.80

35

SPRING, THROTTLE | L,M,A,B

13573-33110

Unavailable

36

O RING | L,M,A,B

13295-33110

Unavailable

37

CONTROL ASSY | L,M,A,B

13210-33111

Unavailable

38

SHAFT, THROTTLE VALVE | L,M,A,B

13552-33110

Unavailable

39

NUT | L,M,A,B

13582-33600

Unavailable

40

ARM | L,M,A,B

13564-33110

Unavailable

41

PIN | L,M,A,B

13563-33110

Unavailable

42

BOLT | L,M,A,B

13611-33600

Unavailable

43

NUT | L,M,A,B

13582-33110

Unavailable

44

CLIP | L,M,A,B

13619-33110

Unavailable

45

SCREW | L,M; TO 02111-03087

13602-03079

Unavailable

45

SCREW | A,B This part replaces 02111-03087.

02112-0308A

$1.80

46

SCREW | L,M,A,B

13267-33110

Unavailable

47

SPRING | L,M,A,B

13268-33110

Unavailable

48

PLATE | L,M,A,B

13557-33110

Unavailable

49

SCREW | L,M; TO 02111-04127

13601-04129

Unavailable

49

SCREW | A,B This part replaces 02111-04127.

02112-0412A

$1.49

50

FRM CVR,SCREW(6 | L,M,A,B; FROM 13612-33110 This part replaces 09128-06011.

09128-06092

$1.92

51

NUT | LM,A,B

13607-31600

Unavailable

52

SCREW | L,M,A,B

13605-33110

Unavailable

53

SPRING | L,M,A,B

13268-31210

$5.33

54

NIPPLE,GREASE | L,M,A,B This part replaces 08351-21008.

08351-2100A

$4.68

55

BOLT | L,M,A,B

13611-33610

Unavailable

56

RUBBER | L,M,A,B

13625-33110

Unavailable

57

SCREW | L,M; TO 02112-05088

13602-05079

Unavailable

57

SCREW | A,B This part replaces 02112-05088.

02112-05087

$1.49

58

WASHER | L,M,A,B

13615-33110

Unavailable

59

KEY | L,M,A,B

13616-33110

Unavailable

60

LEVER | L,M,A,B

13422-33110

Unavailable

61

SCREW | L,M,A,B

13605-31210

$7.37

62

LEVER | L,M,A,B

13410-34600

Unavailable

63

WASHER | L,M,A,B

13615-33610

Unavailable

64

SCREW | L,M,A,B

13433-33600

Unavailable

65

WASHER | L,M,A,B

13432-33600

Unavailable

66

WASHER | L,M,A,B

13615-33600

Unavailable

67

SPRING | L,M,A,B

13434-33110

Unavailable

68

STEEL BALL | L,M,A,B

13435-33110

$2.14

69

BOLT, FLANGE | L,M,A,B

13611-33110

Unavailable

70

BOLT | L,M,A,B

13611-33620

Unavailable

71

BOOT, THROTTLE ARM | L,M,A,B

13583-33110

Unavailable

72

BOOT, THROTTLE LEVER | L,M,A,B

13584-33110

Unavailable

73

SHAFT, CARBURETOR CONTROL | L,M,A,B

13550-33110

Unavailable

74

HOSE, AIR VENT | L,M,A,B; L:280 TO 13684-33111

13683-33640

Unavailable

75

HOSE(4.5X8.5X60 | L,M,A,B; L:95 This part replaces 13683-33610.

09355-45001-600

$9.48

76

HOSE(6X10X600) | L,M,A,B; L:63 This part replaces 13683-33110.

09352-60104-600

$8.99

77

HOSE | L,M,A,B; L:38.5 This part replaces 13683-33600.

13683-34610

Unavailable

78

CLIP (ID:11) | L,M,A,B This part replaces 13671-33110.

09401-11403

$2.85

79

HOSE | L,M,A,B; L:32 This part replaces 13684-33600.

13684-33111

Unavailable

80

HOSE | L,M,A,B; L:33.5 This part replaces 13683-33620.

13683-34610

Unavailable

81

HOSE(4.5X8.5X60 | L,M,A,B; L:75 This part replaces 13683-33650.

09355-45001-600

$9.48

82

JET, MAIN (75) | L,M,A,B; #77.5, OPT FROM 09491-77001 This part replaces 09491-77003.

09491-77005

$11.83

82

JET, MAIN (82.5) | L,M,A,B; #82.5, OPT This part replaces 09491-82002.

09491-82003

Unavailable

83

HOSE, OVER FLOW | L,M; L:120 TO 09344-03014

09344-03007

Unavailable

83

HOSE | A,B This part replaces 09344-03014.

09351-30001-600

$3.57

84

HOSE | L,M,A,B; L:190 FROM 09344-03017 This part replaces 09344-03019.

09351-30001-600

$3.57

85

HOSE, OVER FLOW | L,M,A; L:250 TO 09344-03019

09344-03010

Unavailable

85

HOSE | B; L:250 This part replaces 09344-03019.

09351-30001-600

$3.57

86

CLAMP | L,M,A,B This part replaces 09403-00069.

09404-06037

Unavailable
